Product Details:
|
Product Name: | CGHF | Type: | GPON OLT,OLT Optical Line Terminal |
---|---|---|---|
Warranty: | 1 Year | Power Supply: | 220VAC/48VDC Power |
GPON Ports: | 16 | ARP/router Table: | 64K |
Forwarding Capability: | 200 Gbit/s | Maximum Split Ratio: | GPON: 1:128 XG-PON: 1:256 |
High Light: | CGHF OLT Optical Line Terminal,HuaWei MA5800 Interface Board,HuaWei MA5800 Board |

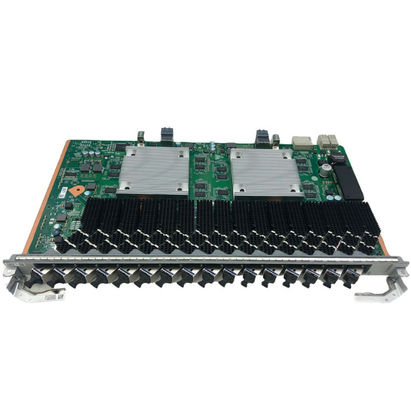

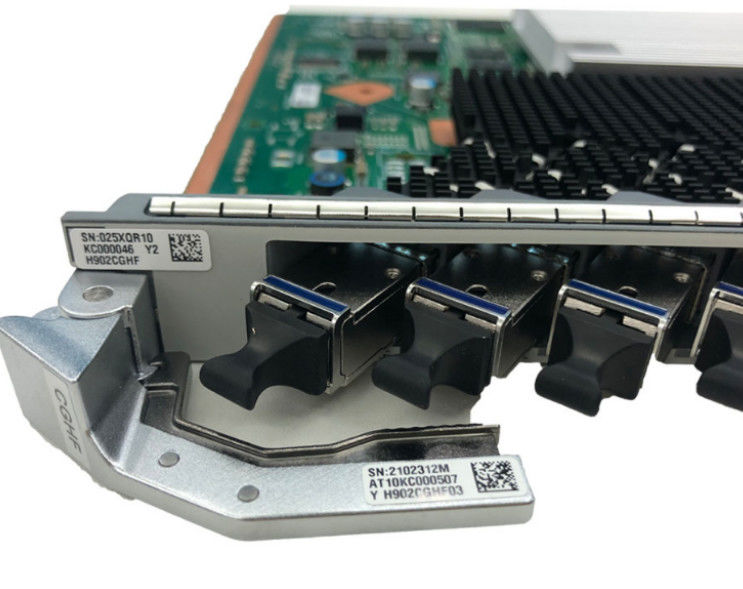

HuaWei MA5800 Interface Board CGHF 16-Port XG-PON& GPON Combo OLT N2a H901CGHF
Descriptions
The H901CGHF board is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
Technical Specifications
Specification |
H901CGID |
H901CGHF |
H901CSHF |
---|---|---|---|
Port quantity | 8 | 16 | 16 |
Forwarding capability | 80 Gbit/s | 200 Gbit/s | 200 Gbit/s |
Rate mode | Asymmetric rate | Asymmetric rate |
Supports two modes:
|
Port Rate |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XG-PON upstream: 2.488 Gbit/s XG-PON downstream: 9.953 Gbit/s |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XG-PON upstream: 2.488 Gbit/s XG-PON downstream: 9.953 Gbit/s |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XGS-PON upstream: 9.953 Gbit/s & 2.488G bit/s XGS-PON downstream: 9.953 Gbit/s |
Maximum split ratio |
GPON: 1:128 XG-PON: 1:256 |
GPON: 1:128 XG-PON: 1:256 |
GPON: 1:128 XGS-PON: 1:256 |
T-CONTs per PON port |
GPON/auto type ONU: 1024 XG-PON: 2048 |
GPON/auto type ONU: 1024 XG-PON: 2048 |
GPON/auto type ONU: 1024 XGS-PON: 2048 |
Service flows per PON board | 16368 | 16352 | 16352 |
Maximum number of MAC addresses | 131072 | 131072 | 131072 |
.
FAQ
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2.What's your shipping way?
Shopped by air sea express
3.What is the product used for packing?
We always use catron, Unless you have different packing needs
Our service
After-sales service
1. We can provide detailed documentation and remote help for equipment installation and configuration.
2. Warranty: 1 year. (After the warranty period, the corresponding maintenance service fee will be charged.)
3. The company promises to deliver goods within 7 or 15 days.
Due to quality problems, the goods will be returned and exchanged in full.
The goods must be returned and exchanged in the original condition and the accessories are complete.
