Product Details:
|
Fiber Type: | GPON OLT | Name: | VCLE CALE |
---|---|---|---|
Connector: | Champ 64/32-pin | Module: | 16 SFP Modules Included |
Selling Units: | Single Item | Single Package Size : | 50X25X10 Cm |
Single Gross Weight: | 3.000 Kg | Warranty: | 1 Year |
High Light: | HuaWei MA5616 Gpon Board,32 Channel Gpon Board,H83D00VCLE02 |

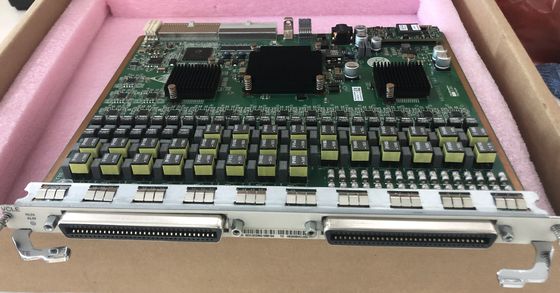

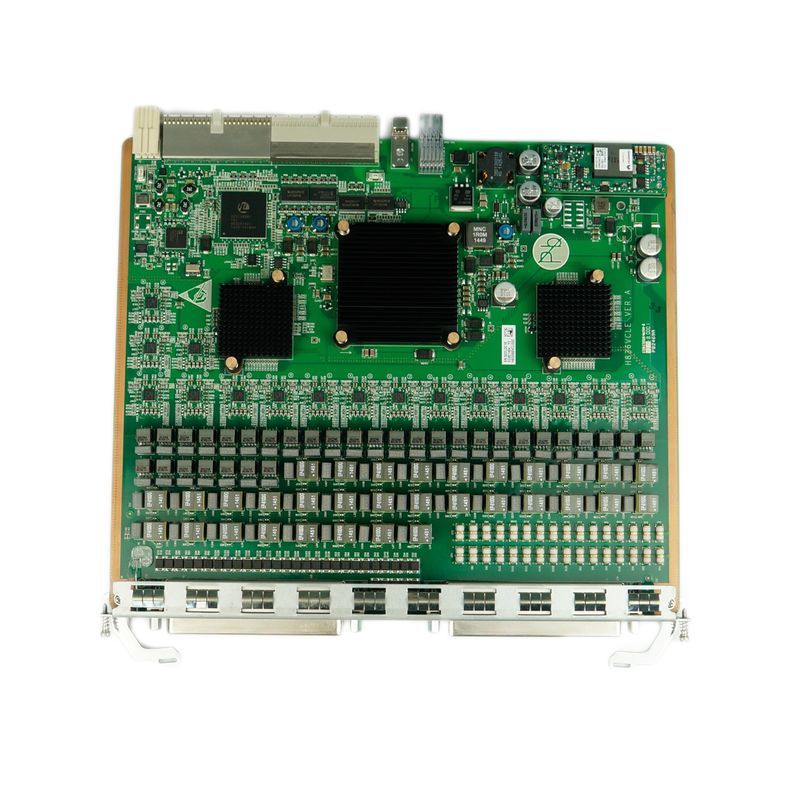

HuaWei MA5616 Gpon Board H83D00VCLE02 32 Channel VDSL2 Service Board
HuaWei MA5616 business board H83D00VCLE02 32 channel VDSL2 service board VCLE CALE
* The control module decodes signals and monitors signals.
* The switch module converts the port signal on the backplane to the port signal on the chipset module, and converts the port signal on the PHY (Physical layer signal processing) chip to the port signal on the chipset module.
* The chipset module implements functions, such as amplification, filtering, A/D and D/A conversion, coding/decoding, and encapsulation/decapsulation for signals.
* The protection module protects and isolates the board from lightning strikes.
* The splitter module separates POTS signals from combined signals (VDSL2 signals and POTS signals).
* The power module supplies power to other function modules of the board.
* The clock module provides working clock for other function modules of the board.
* A VCE daughter board is installed on a power board for processing vectoring signals. This daughter board provides a 10 GKR port to connect to the H83BVCLE board.
Features
32 VDSL2 ports:
Specifications
Physical | |
Connector | Champ 64-pin |
Built-in splitter | 600 ohms |
Bandwidth | 3 Gbit/s |
Maximum frame size | 2000 bytes |
Environment | |
Operating temperature | -40℃ to +65℃ |
Power Consumption |
For 17a profiles:
For 12a profiles:
For 8b profiles:
|
Automatic shutdown at a high temperature | supported |
Power-on and power-off through the CLI | supported |
Category | Specifications |
Annex | G.992.1 (Annex A/B) G.992.3 (Annex A/B/L/M) G.992.5 (Annex A/B/M) G.993.2 (Annex A/B) |
Profile | 8a, 8b, 8c, 8d, 12a, 12b, or 17a |
Vectoring | supported |
Bonding | 4 pairs |
SRA | Supported |
RFI notch | Supported |
UPBO | Supported |
DPBO | Supported |
G.INP | Supported |
INM | supported |
Virtual noise | Supported |
Built-in MELT | Not supported |
Built-in SELT | Supported |
IPv6 | Supported |
1:1 VMAC | Supported |
