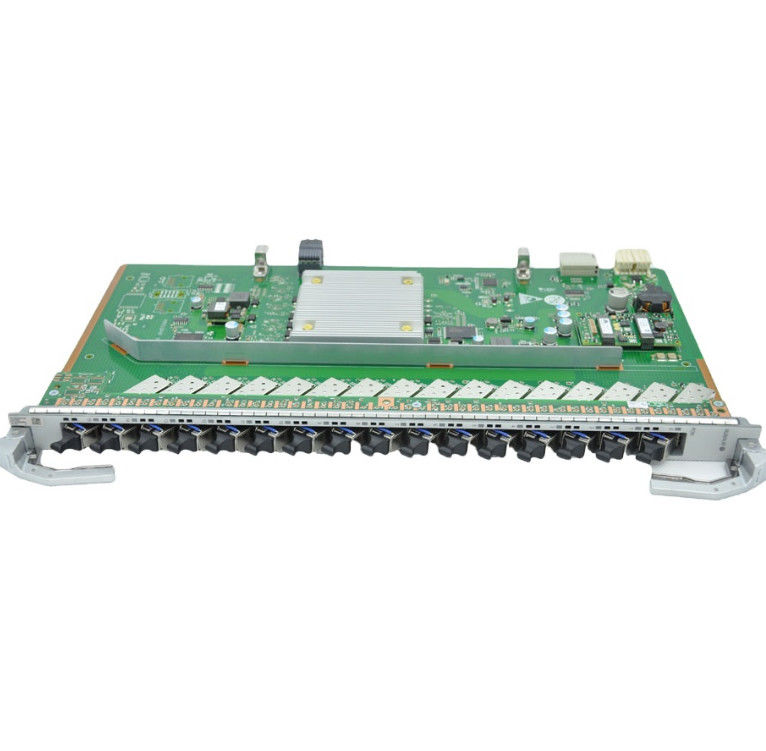

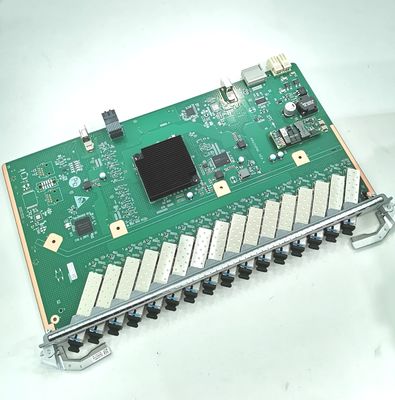

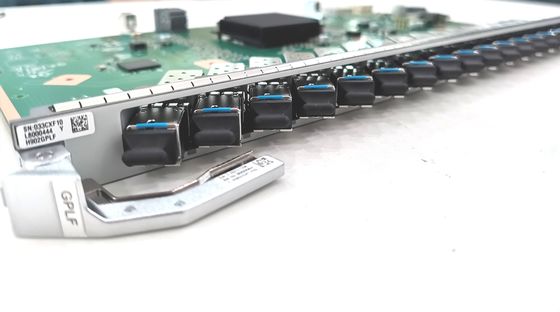

H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board

H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board
H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board

Large Image :  H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board

Product Details:
Place of Origin: China
Brand Name: HuaWei
Model Number: GPLF
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the box .
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Contact Now

H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board

Description
Model No: GPLF Port No.: 16 GPON SFP Ports
Operating Voltage: -53.5 V DC Application: FTTH FTTB FTTX Network
Dimension: 49*33*8CM SFP: Class B+/C+/C++ One-fiber Bi-directional Optical Modules
Distance: 40KM Warranty: 1 Year
High Light:

16 Port GPON Optical Line Terminal

,

H901GPLF

,

GPON OLT Interface Board

H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board



HuaWei MA5800-X7/X15/X2 business board H901GPLF 16 Port GPON OLT Interface Board GPLF



HuaWei GPLF Service Board Product Descriptions

HuaWei GPLF Service Board is a 16-port GPON interface board for HW MA5800 series. The MA5608T/MA5800T/MA5603T/MA5600T, functioning as integrated optical-copper access equipment, provides the integrated broadband and narrowband access and FTTx optical access services that feature high rate, high bandwidth, and high quality. It can function as an OLT, MSAN, or IP DSLAM.

HuaWei GPLF Service Board Product Specifications
Brand
HuaWei
Board Name
GPLF
Port No.
16 GPON SFP ports
Split Ratio
A maximum of 1:128 split ratio
SFP
Class B+/C+/C++ one-fiber bi-directional optical modules
Traffic-Shaping
ONU-based traffic shaping
Temperature
Temperature reading and high-temperature alarm
Board Protection
Automatic power-off in case of high temperature
FEC
Upstream and downstream forward error correction (FEC)
Networking
L3VPN and D-CCAP networking
ONU
Rogue ONU detection
CCAP
L3VPN and D-CCAP networking
RSS
Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module
HuaWei GPLF Service Board Product Features
* High density, low power consumption, support 2048 access users.
* Idle PON port manual shutdown, to avoid power waste.
* Support the same PON mouth two ONU to PON port maximum distance difference of 40km, simplifying network planning
* Level 4 HQoS to improve the user experience.
* 9216 Jumbo frame, greatly improving the transmission efficiency.
* Real-time rogue ONU detection and isolation, to ensure stable operation of the business
* Can become OMCI, improve the efficiency of upgrading, shorten the business interruption
* 1:64 eOTDR, accurate fault sharing and quick fault location.

H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board 0H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board 1H901GPLF 16 Port GPON Optical Line Terminal GPON OLT Interface Board 2



Power consumption and maximum frame size of boards
Board Power Consumption Weight Maximum Frame Size
Control board
H901MPLA
  • Static: 62 W
  • Maximum: 89 W
 2.20 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H902MPLA
  • Static: 53 W
  • Maximum: 87 W
 1.24 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901MPLB
  • Static: 62 W
  • Maximum: 117 W
 1.24 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901MPSC
  • Static: 53W
  • Maximum: 67 W
 0.99 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
Daughter board of Control board
H901CKUA
  • Static: 2 W
  • Maximum: 2 W
 0.03 kg N/A
H901CKUB
  • Static: 2 W
  • Maximum: 2 W
 0.03 kg N/A
Upstream interface board
H901NXED
  • Static: 40 W
  • Maximum: 53 W
 0.99 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
Universal interface board
H901CIUA
  • Static: 6 W
  • Maximum: 7 W
 0.37 kg N/A
Power interface board
H901PILA
  • Static: 0.5 W
  • Maximum: 4 W
 0.43 kg N/A
H901PISA
  • Static: 2.5 W
  • Maximum: 2.5 W
 0.72 kg N/A
H901PISB
  • Static: 5 W
  • Maximum transfer efficiency: 93% (220 V, 100% load, 25°C)
 1.12 kg N/A
GPON interface board
H901GPHF
  • Static: 25 W
  • Maximum: 50 W
 0.94 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901GPSF
  • Static: 25 W
  • Maximum: 50 W
 0.94 kg 2052 bytes.
XG-PON interface board
H901XGHD
  • Static: 42 W
  • Maximum: 61 W
 1.07 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901XGSF
  • Static: 42 W
  • Maximum: 83 W
 1.08 kg 2052 bytes.
XGS-PON interface board
H901TWED
  • Static: 108 W
  • Maximum: 151 W
 1.16 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901XSHF
  • Static: 48 W
  • Maximum: 94 W
 1.21 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
PON Combo interface board
H901CGID
  • Static: 42 W
  • Maximum: 78 W
 1.98 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901CGHF
  • Static: 48 W
  • Maximum: 106 W
 1.21 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901CSHF
  • Static: 48 W
  • Maximum: 98 W
 1.21 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
Flex-PON interface board
H901FLHF
  • Static: 48 W
  • Maximum: 106 W
 1.21 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
TDM service Processing board
H901EDSH
  • Static: 26 W
  • Maximum: 28 W
 0.93 kg N/A
GE/FE optical interface board
H901OGHK
  • Static: 42 W
  • Maximum: 75 W
 1.09 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
10GE/GE optical interface board
H901OXHD
  • Static: 37 W
  • Maximum: 50 W
 0.99 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H901OXEG
  • Static: 88 W
  • Maximum: 144 W
 1.42 kg 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
Video service processing board
H901CVEC
  • Static: 54 W
  • Maximum: 56 W
 1.03 kg N/A
FAN monitoring board
H901FMLA (for fan tray of MA5800-X17) Fan tray:
  • Static: 20 W
  • Maximum: 139 W
 4.40 kg (Fan tray) N/A
H901FMLA (for fan tray of MA5800-X15) Fan tray:
  • Static: 14 W
  • Maximum: 225 W
 4.90 kg (Fan tray) N/A
H901FMMA (for fan tray of MA5800-X7) Fan tray:
  • Static: 14 W
  • Maximum: 189 W
 2.00 kg (Fan tray) N/A
H901FMSA (for fan tray of MA5800-X2) Fan tray:
  • Static: 6 W
  • Maximum: 63 W
 0.70 kg (Fan tray) N/A



Packaging

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement.

Shipping

1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.
