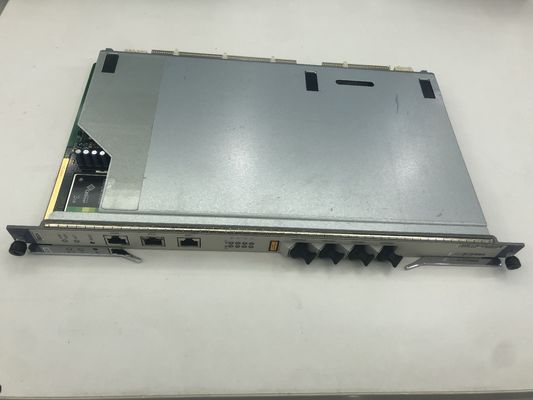

Parameter
Lists single board power consumption and frame length. "-" means not involved. Single board power consumption is tested at voltage -53.5V at room temperature of 25 degrees C. Due to the different power modules, device discreteness and other reasons, resulting in a small deviation in single board power consumption.
The normal operating temperature range of all single plates is -40 degrees C to 65 degrees C, and the starting temperature is -25 degrees C.
Single board power consumption and frame length
| The name of the single board | power consumption | Frame length |
| HW SCUH |
Static: 89W : 111W (full with 10GE business board) : 134W (full with 20GE business board) |
2052 bytes, which increases the Jumbo Frame feature to 9216 bytes |

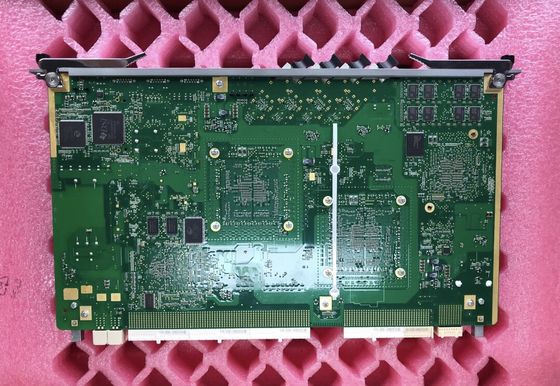

Principle
HW SCUH schematic diagram
Blue arrow |
Control the signal channel | Green arrow |
Business signal channel |
Orange square |
Control module: complete the software loading, operation control, management and other functions of a single board. | Blue square |
The module through which the business signal passes |

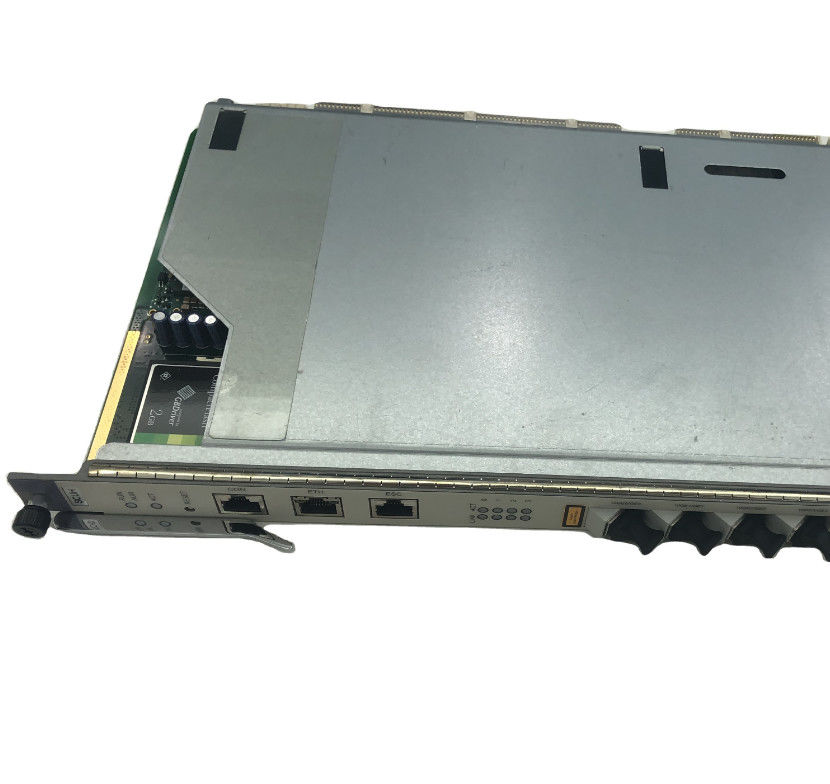

Panel interface
Optical/electric modules supported by a single board
10GE light module corresponds to a single board
| Single board category | The name of the single board | 10GE Light Module (SFP plus). | 10GE Light Module (XFP). | 10GE Color light module (SFP plus). |
| Master board | SCUH | √ | × | √ |
The correspondence between GE optical/electric modules and single boards
| Single board category | The name of the single board | GE Light Module - Single-channel dual fiber bidirectional | GE Light Module - Single-channel single fiber bidirectional | GE Light Module - Dual-channel single fiber bidirectional | GE Color Light Module - Single-channel dual fiber bidirectional | GE electrical module |
| Master board | SCUH | √ | √ | × | √ | √ |
Light
| Light screen | The name of the LED | The status of the LIGHT | The status description |
| RUN ALM | Run status light | The green flashes | The single board is functioning properly |
| The red flashes | Single board start-up | ||
| Orange flashes | The heat alert | ||
| Red is always bright | A single board operation failure | ||
| ACT | Main standby status light | The green is always bright | When the main standby mode and the load sharing mode, the single board is in the main state |
| extinguish | When in main standby mode, the board is in standby | ||
| The green flashes | When the load-sharing mode is in, the single board is on standby | ||
| LINK | Link status indicator | The green is always bright | The port establishes a connection |
| extinguish | The port is not connected | ||
| ACT | Data status indicator | Yellow flashes | There is data transfer |
| extinguish | No data transfer |
