HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series

HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series
HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series

Large Image :  HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series

Product Details:
Place of Origin: China
Brand Name: HuaWei
Model Number: LS5D00E4GF01 ES5D00ETPB00
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the huawei box.
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 20PCS

HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series

Description
Product Name: LS5D00E4GF01 ES5D00ETPB00 Dimensions (wide× Depth × Height): 143mm×126mm×43mm
Weight: 0.2kg Maximum Power Consumption: 0.1W
Network: GPRS ARP/router Table: 64K
Hot-swap: Not Supported Warranty: 1 Year
High Light:

ES5D00ETPB00

,

LS5D00E4GF01

,

OLT Optical Line Terminal Board

HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series



Software companionship

Card model

Version description

ES5D00ETPB00

illustrate:

The PCB model of the card, corresponding to the CX22ETPB,

is displayed after querying with the display device command.

V100R005C01 to V200R005C03 versions are supported.

illustrate:

V200R003C02, V200R003C10 version is not supported.

Card overview

Card

The device model

ES5D00ETPB00
  • S5700-28C-SI
  • S5700-52C-SI
  • S5700-28C-PWR-SI
  • S5700-52C-PWR-SI
  • S5700-28C-EI
  • S5700-52C-EI
  • S5700-28C-EI-24S
  • S5700-28C-PWR-EI
  • S5700-52C-PWR-EI
  • S5710-28C-LI
  • S5710-52C-LI
  • S5710-28C-PWR-LI
  • S5710-52C-PWR-LI



Features and features

Features and features

description

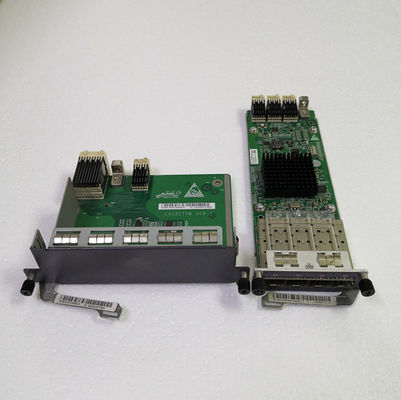

Basic functionality Extended channel rear card ES5D00ETPB00 is used in conjunction with ES5D000X4S01, ES5D000G4S01 and ES5D00G4SA01 front card, providing a 4 x GE SFP interface or 4 x 10GE SFP plus interface function.
Hot-swap Not supported

Use restrictions

The ES5D000X4S01, ES5D000G4S01 and ES5D00G4SA01 front card need to be used in conjunction with the extended channel rear card ES5D00ETPB00.

The ES5D00ETPB00 does not support hot-swapping.

Specifications

The argument item

description

The physical parameters
  • Dimensions (wide× depth × height): 143mm×126mm×43mm
  • Weight: 0.2kg
  • Maximum power consumption: 0.1W

Order information

Order information is updated from time to time due to product version upgrades. This manual is for use only and for accurate ordering information, please consult your HW Switch Dealer or HW local representative office.

Card description

Card model

Part coding

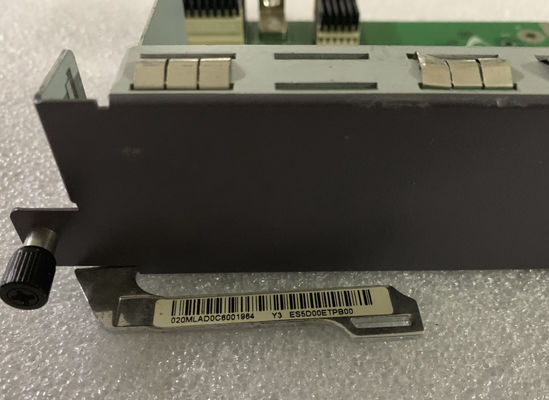

The channel is extended after the card is inserted ES5D00ETPB00 03020MLA



.HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series 0HuaWei LS5D00E4GF01 ES5D00ETPB00 OLT Optical Line Terminal For 5300 Series 1



More model port description



LS5D00E4XY00 4-port 10GE SFP plus optical interface board (with LS5D00E4XY01 4 port 10GE SFP plus optical interface board 1PCS, ES5D00ETPB00 extended channel card 1PCS)
LS5D00E2XY00 2-port 10GE SFP plus optical interface board
LS5D00E2XX00 2 port 10GE XFP light interface board

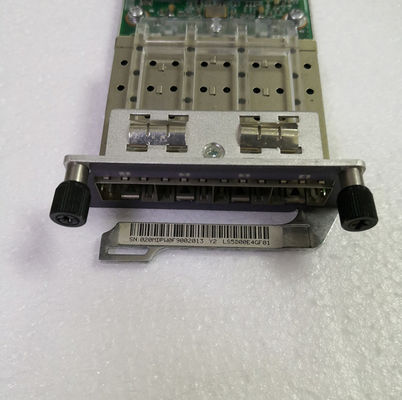

LS5D00E4GF00 4-port GE optical interface board (EI series use) (including LS5D00E4GF01 4 port GE optical interface board 1PCS, ES5D00ETPB00 extended channel card 1PCS)
LS5DG04SSI00 4-port GE optical interface board (SI series use) (including LS5D0E4GFA00 4 port GE optical interface card 1 PCS, ES5D00ETPB00 extended channel card 1PCS)
LS5DSTACK200 Ethernet Stacking Interface Board (with ES5D00ETPC00 Stack card 1PCS, CPCIE8X00 100cm Stacked Cable 1PCS)
