ZTE ZXR10 2609 Fast Ethernet Switch Error Correction
The ZXR10 2600 series are access switches with excellent performance and diversified functions. They provide low- and medium-density LAN ports to build enterprise networks.
ZTE ZXR10 2609 supports two power supply modes: 110/220V AC power supply and POE powered mode. „ When the AC power supply is used then the self-contained AC adapter can be directly used to convert the AC power into 5V DC power. „ When the POE powered mode is used then a dedicated POE device is needed to split the RJ45 signals of the 48V power provided by the POE power sourcing equipment into Ethernet signal and 48V power signal and convert the power into 5V DC power needed by the ZXR10 2609.
Features:
1.VCT and Loopback Test
2.Powerful security performance
3.Cost-effective and compact structure
4.Port mirroring and dynamic MAC binding
Specifications:
| Product number | ZXR10 2609 |
| Product type | Fast Ethernet |
| Application level | Second floor |
| Backplane bandwidth | 6.4Gbps |
| Packet forwarding rate | 1.35Mpps |
| Transfer method | Store-and-forward |

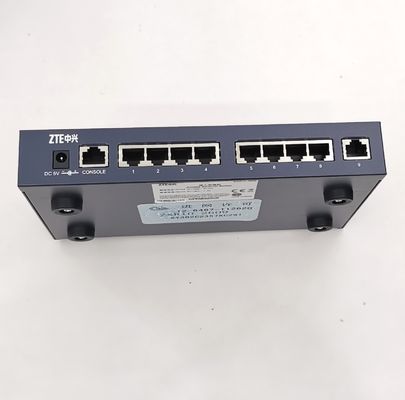

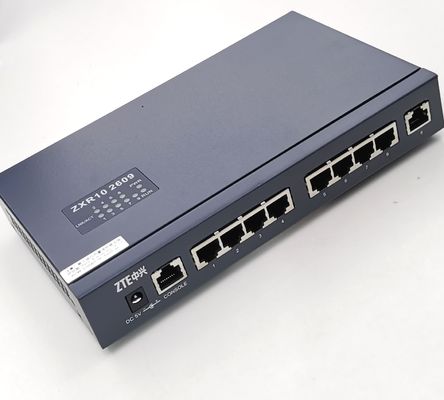

| Interface Type | 8 Fast Ethernet electrical access ports, 1 Fast Ethernet optical port or electrical port uplink |
| Number of interfaces | 9 ports |
| Transmission rate | 10M/100Mbps |
| Port structure | Non-modular |
| Stacking support | Stackable |
| QoS support | Support QoS |
| Network standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q, IEEE 802.1x |
| VLAN support | Support VLAN function |
| Duplex transmission | Support full duplex, full duplex/half duplex adaptive |
| MAC address table | 8k |
| Network management function | Support RFC1213 SNMP (Simple Network Management) protocol |
| Voltage | AC 100-240V, 50-60Hz DC -48V±10% |
| Dimensions | 35×216×176mm |
| Weight | 1kg |
| Other |
Environmental standards: Working temperature: -5-45°C Working humidity: 5%-95% (non-condensing) Storage temperature: -40-70°C |
