Product Details:
|
| Fiber Type: | GPON OLT Board | Name: | CR5DLPUFA27E /(LPUF-102)E |
|---|---|---|---|
| Weight: | 7.2 Kg | Dimensions: | 399.2 Mm X 535.6 Mm X 40.1 Mm |
| POWER: | 195 W | Storage Conditions: | -40°C To +70°C / 5% To 100% |
| Package Type: | NEW IN THE HUAWEI BOX | Warranty: | Year |
| High Light: | HuaWei NE40E Circuit Board,HuaWei NE40E printed circuit board,HuaWei NE40E processing board |
||

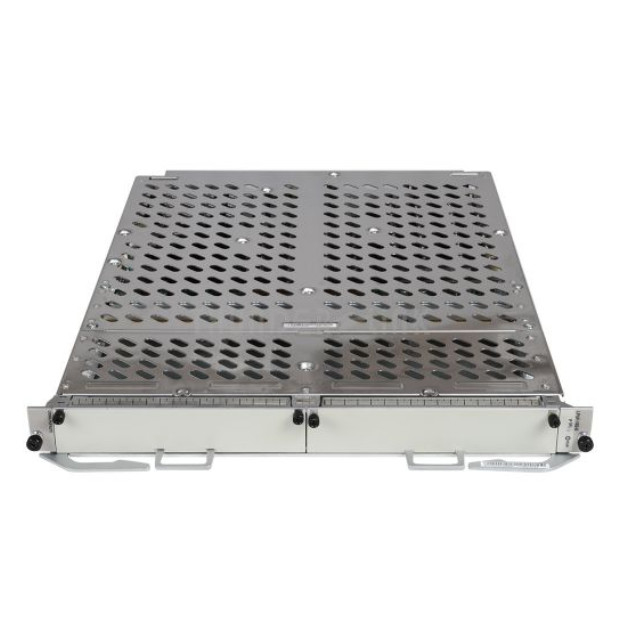

HuaWei NE40E Circuit Board 100G Flexible Card Line Processing Board
HuaWei NE40E circuit board CR5DLPUFA27E /(LPUF-102)E 100G flexible card line processing board
* Flexible card line processing unit (LPUF-102-E) on Huawei NE40E.
* Supports packet forwarding at the line speed of 100 Gbit/s.
* Provides two 1/2-width slots, and each slot holds one FPIC.
* Supports PPPoE and IPoE.
CR5DLPUFA27E is flexible line processing board applied to HW NE40E, supports packet forwarding at the line speed of 100 Gbit/s.

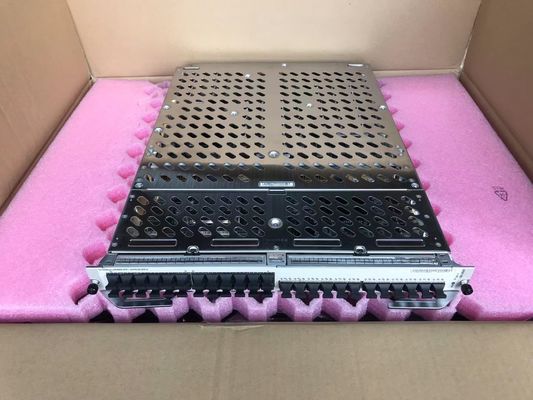

CR5DLPUFA27E comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.
| Attribute | Description |
|---|---|
| Description | FLEXIBLE CARD CIRCUIT PROCESSING BOARD (LPUF-102)E |
| Part code | 03054688 |
| Model | CR5DLPUFA27E |
| Single board category | Flexible card board |
| Silk screen | LPUF-102-E |
| Features and features | Description |
|---|---|
| Basic features | SUPPORTS 100G LINE-SPEED FORWARDING. |
| Reliability and availability |
THE LPUF-102-E SUPPORTS HOT-SWAP FPIC ON THE LPUF-102-E SUPPORTS HOT-SWAP |
| Whether hashing is supported | Not |
| Whether port rate adaptation is supported | Not |

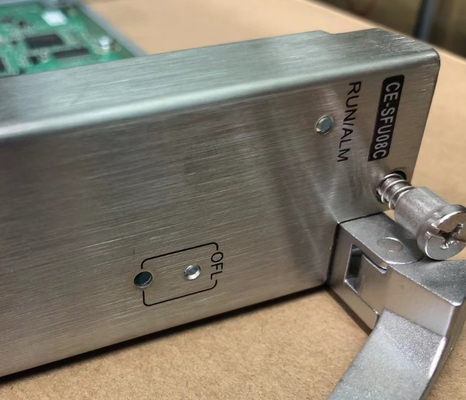

| Led screen | The name of the led | Led color | Led status | The status description |
|---|---|---|---|---|
| OFL | OFL LED | Red | Always on | Indicates that the single board is safely unplugged. |
| RUN | Run status indicator | Green | Flash, twice per second (2Hz) | Indicates that the device is not enrolled during the startup process. |
| Green | Slow flash, flash every two seconds (0.5Hz) | Indicates that the system is operating normally. |
| Button screen | The name of the button | Description |
|---|---|---|
| OFL | Single board plug-in button | PRESS THE AFL BUTTON BEFORE THE SINGLE BOARD IS UNPLUGGED TO REQUEST A PULL PLATE. PRESS FOR APPROXIMATELY 6 SECONDS UNTIL THE OFL INDICATOR IS LIT BEFORE THE BOARD CAN BE SAFELY UNPLUGGED. |
| Project | Description |
|---|---|
| Dimensions (w x dark x h, excluding packing material) | 399.2 mm x 535.6 mm x 40.1 mm |
| Weight (excluding packing material) (kg) | 7.2 kg |
| TYPICAL POWER CONSUMPTION (W) | 195 W |
| Typical heat sink value (BTU/hour) | 632.66 BTU/hour |
| LONG-TERM OPERATING ENVIRONMENT TEMPERATURE | 0°C~45°C |
| SHORT-TERM WORKING ENVIRONMENT TEMPERATURE | -5°C~55°C |
