Product Details:
|
| Brand Name: | Mikrotik | Model Number: | RBD25G-5HPacQD2HPnD |
|---|---|---|---|
| CPU Core Count: | 4 | CPU Nominal Frequency: | 716 MHz |
| Dimensions: | 100 X 235 X 97 Mm | Storage Size: | 128 MB |
| Size Of RAM: | 256 MB | Architecture: | ARM 32bit |
| High Light: | Audience Optical Fiber Wifi Router,MikroTik Optical Fiber Wifi Router,MikroTik Audience MESH wireless router |
||

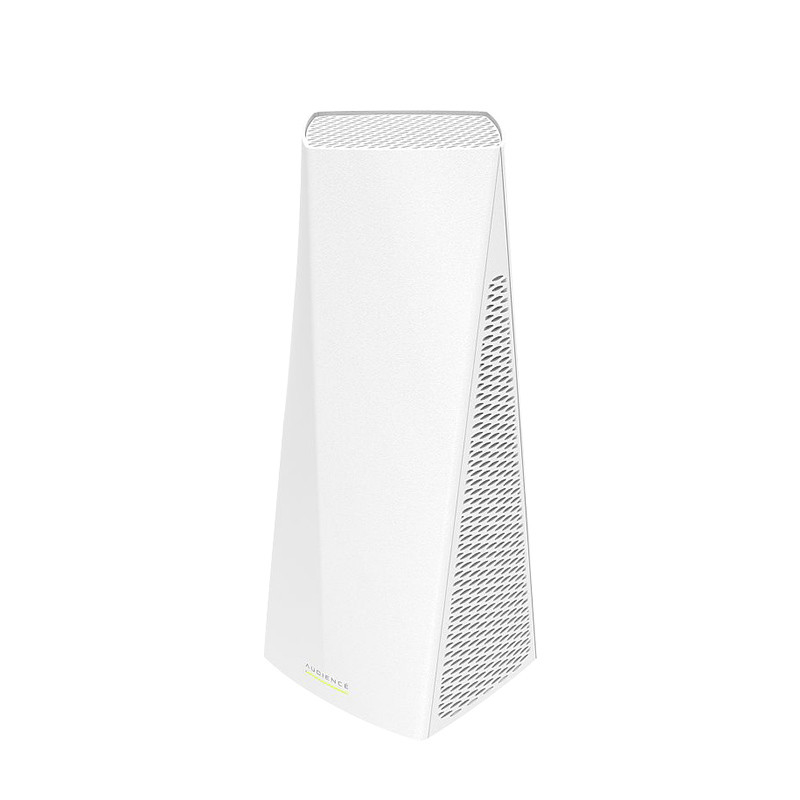

MikroTik Audience Optical Fiber Wifi Router RBD25G-5HPacQD2HPnD
Decifications
Wi-Fi has to be fast, reliable, easy to manage, it must reach every room and every corner. That is exactly what Audience devices can deliver in grand style – even in the biggest houses!
Audience is a tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology. If you need Wi-Fi in a huge building with all kinds of obstacles, simply add more Audience devices to your network – with a press of a button they will sync seamlessly and create a single Wi-Fi network to cover the whole premises. The initial setup is also very simple – download the iOS or Android MikroTik app, it will connect to the router and guide you through a quick setup process.
In some cases a single Audience unit might be able to replace several other routers – in our tests it covered 1858 m² (20000 square feet) easily. It depends on the amount of obstacles, Wi-Fi clients and interference, so results may vary.
Dual-chain 2.4 GHz and 5 GHz wireless coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5 GHz channel for your PC or TV.
Order your Audience today and start living in the future. The future of easy and elegant networking.
| Details | |
|---|---|
| Product code | RBD25G-5HPacQD2HPnD |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 100 x 235 x 97 mm |
| RouterOS license | 4 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| IPsec hardware acceleration | Yes |
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3.5 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 27 W |
| Max power consumption without attachments | 27 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 24-57 V |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -80 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -75 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -95 |
| 54MBit/s | 25 | -78 |
| MCS0 | 28 | -95 |
| MCS7 | 24 | -75 |
| MCS9 | 22 | -70 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 32 | -96 |
| 54MBit/s | 28 | -80 |
| MCS0 | 32 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 25 | -72 |
