Product Details:
|
| Product Name: | GPSF | Dimensions (W X D X H): | 23.30 Mm * 257.90 Mm * 399.20 Mm |
|---|---|---|---|
| Power Consumption: | Static: 25W; Maximum:50W | Optical Connector Type: | SC/PC |
| Optical Fiber Type: | Single-mode | Reach: | 20.00 Km |
| GPON Port: | 16-GPON Port | Operating Wavelength: | Tx: 1490 Nm, Rx: 1310 Nm |
| High Light: | MA5800X2 GPON OLT Board,MA5800 GPON OLT Board,MA5800X2 GPON Optical Line Terminal |
||

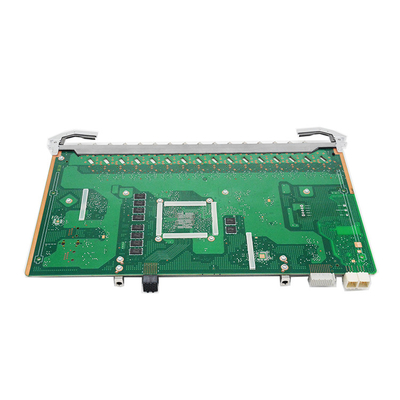

HuaWei MA5800 MA5800X2 GPON OLT Board GPSF Interface Board

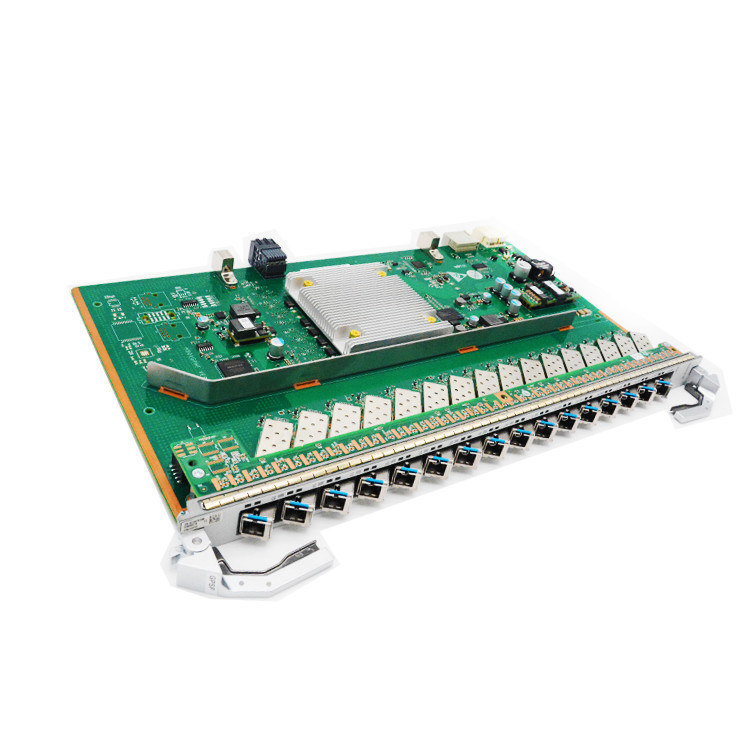

HuaWei MA5800 MA5800X2 GPON OLT board GPSF Interface Board fully equipped with 16-port module
Overviews of GPSF
GPSF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPSF can maximum access 16*128 GPON subscribers.
* Huawei 16-GPON Port Interface Card with B+ SFP module
* Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
* Support split ration 1:64
* Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
* Interface Type: SC/PC
* Max Transmit Distance: 20KM
* Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
* Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
* B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
Tech Specs of GPSF
|
|
|
|
Specification |
|
|
Service ports |
|
|
GPON Port |
16-GPON Port |
|
GPON SFP Module Specification |
|
|
Type |
B+ Module : One-fiber bi-directional optical module, class B+ |
|
Operating Wavelength |
Tx: 1490 nm, Rx: 1310 nm |
|
Encapsulation Type |
SFP |
|
Port Rate |
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
|
Minimun Output Optical Power |
B+ Module : 1.50 dBm |
|
Maximum Output Optical Power |
B+ Module : 5.00 dBm |
|
Maximum Receiver Sensitivity |
B+ Module : -28.00 dBm |
|
Optical Connector Type |
SC/PC |
|
Optical Fiber Type |
Single-mode |
|
Reach |
20.00 km |
|
Overload Optical Power |
B+ Module : -8.0 dBm |
|
Extinction Ratio |
8.2 dB |
|
Device Specifications |
|
|
Dimensions (W x D x H) |
23.30 mm * 257.90 mm * 399.20 mm |
|
Power Consumption and Maximum Frame Size |
|
|
Power Consumption |
Static: 25W; Maximum:50W |
|
Maximum Frame Size |
2004 bytes |
|
Operating temperature |
-40°C to +65°C |
Q&A
Q: What's the difference among H901GPHF, H901GPSF, H805GPFD?
A:
|
|
H901GPHF |
H901GPSF |
H805GPFD |
|
Port |
16 GPON ports with SFP optical modules |
16 GPON ports with SFP optical modules |
16 GPON ports with SFP optical modules |
|
Max. split radio |
Class B+: 1:64 |
Class B+: 1:64 |
Class B+: 1:64 |
|
Function |
|||
|
Forwarding capability |
40 Gbit/s |
40 Gbit/s |
40 Gbit/s |
|
T-CONTs per PON port |
1024 |
1024 |
1K |
|
Service flows per PON board |
16384 |
16384 |
16K |
|
Maximum frame size |
2004 bytes |
2004 bytes |
2004 bytes |
|
Maximum number of MAC addresses |
131072 |
16384 |
64K |
|
Maximum distance difference between two ONUs under the same PON port |
40 km |
40 km |
40 km from V800R013 |
|
FEC |
Bidirection |
Bidirection |
Bidirection |
|
CAR group |
Supported |
Supported |
Supported |
|
Queue scheduling hierarchy |
4-level HQoS |
2-hierarchical HQoS |
4-level HQoS |
|
IPv6 |
|
|
Supported |
|
Variable-length OMCI |
Supported |
Supported |
Supported from V800R013 |
|
ONU-based shaping or queue-based shaping |
Supported |
Supported |
Supported |
|
Load sharing |
Supported |
Supported |
Supported |
|
High-precision clock time synchronization |
|
|
Supported |
|
Type B protection (dual-homing) |
Supported |
Not supported |
|
|
Type B Protection (single-homing)/ Type C |
Supported |
Supported |
|
|
Type B/Type C protection |
|
|
Supported |
|
1588v2 |
Supported |
Not supported |
|
|
Rogue ONU detection and isolation |
Supported |
Supported |
Supported |
|
Automatic shutdown at high temperature |
Supported |
Supported |
Supported |
|
Automatic shutdown of an idle port |
Supported |
Supported |
Supported |
|
D-CCAP networking |
Supported |
Supported |
|
|
1:64 eOTDR |
Supported (with FBG) |
Supported (with FBG) |
Supported |
|
Environment |
|||
|
Operating temperature |
-40°C to +65°C |
-40°C to +65°C |
-25°C to +65°C |
|
Power consumption |
Static: 25 W |
Static: 25 W |
Static: 26 W |
Q: When deploying GPON network, what are the differences between GPSF and GPHF?
A: GPSF only can supports FTTH, while GPHF supports FTTH, FTTO, FTTM and D-CCAP.
