UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac

UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac
UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac

Large Image :  UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac

Product Details:
Place of Origin: China, Guangdong
Brand Name: UBNT
Model Number: UAP-AC-M
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac

Description
Product Name: UAP-AC-M Dimensions: 353 X 46 X 34.4 Mm
Weight: 152 G (5.36 Oz) With Antennas Network Interface: Port 10/100/1000 Gigabit Ethernet
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included) Max. Power Consumption: 8.5W
Supported Voltage Range: 44 To 57VDC Warranty: 1 Year
High Light:

Dual Band POE Wireless Access Point

,

802.11ac POE Wireless Access Point

,

UBNT wireless AP

UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac



UBNT wireless AP outdoor gigabit dual-band UAP-AC-M enterprise-class PoE power supply 802.11ac high-power wireless AP



Overviews

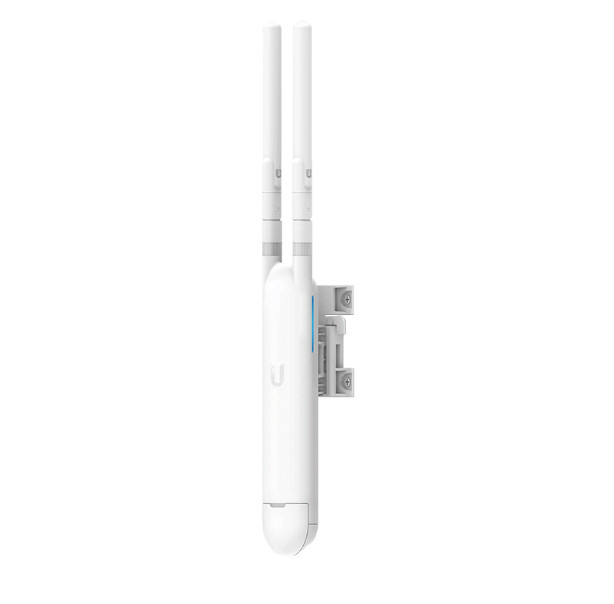

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.



Specifications



UAP-AC-M

Dimensions

353 x 46 x 34.4 mm

(13.9 x 1.81 x 1.35")

Weight

152 g (5.36 oz) with Antennas

Networking Interface

(1) 10/100/1000 Ethernet Port

Buttons

Reset

Power Method

24V Passive PoE (Pairs 4, 5+; 7, 8 Return);

802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)

Power Supply

24V, 0.5A Gigabit PoE Adapter (Included)

Supported Voltage Range

44 to 57VDC

Power Save

Supported

Max. Power Consumption

8.5W

Operating Frequency

2.4 GHz

5 GHz

Max. TX Power

  • 2.4 GHz
  • 5 GHz
  • 20 dBm
  • 20 dBm

Antennas

(2) External Dual-Band Omni Antennas

(1) Panel Antenna*

Wi-Fi Standards

802.11a/b/g/n/ac

Wireless Security

WEP, WPA-PSK,

WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

Up to Four per Radio

Mounting

Wall/Pole/Fast-Mount (Kits Included)

Operating Temperature

-30 to 70° C (-22 to 158° F)

Operating Humidity

5 - 95% Noncondensing

Certifications

CE, FCC, IC

* Antenna Model UMA-D (sold separately).

Antenna Gain

Antenna Type

2.4 GHz 5 GHz

Omni

3 dBi 4 dBi

Panel

10 dBi

15 dBi





UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac 0UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac 1UBNT Dual Band POE Wireless Access Point PoE Power Supply 802.11ac 2
