Product Details:
|
| Product Name: | MA5694 | Dimensions (H X W X D): | 43.6 Mm X 250 Mm X 180 Mm |
|---|---|---|---|
| Power: | AC: 220V DC: –48V | Weight: | 3 Kg |
| Surge Protection: | 6 KV | Warranty: | 1 Year |
| High Light: | MA5694 GPON ONT ONU,GPON ONT ONU,MA5694 EPON ONU |
||

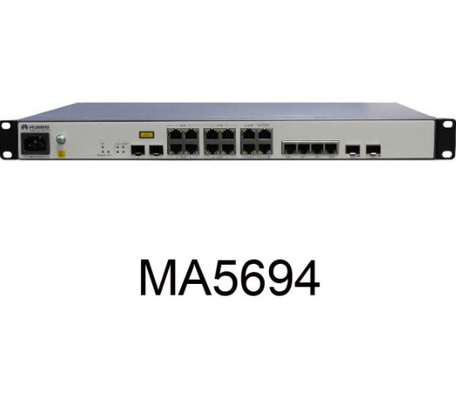

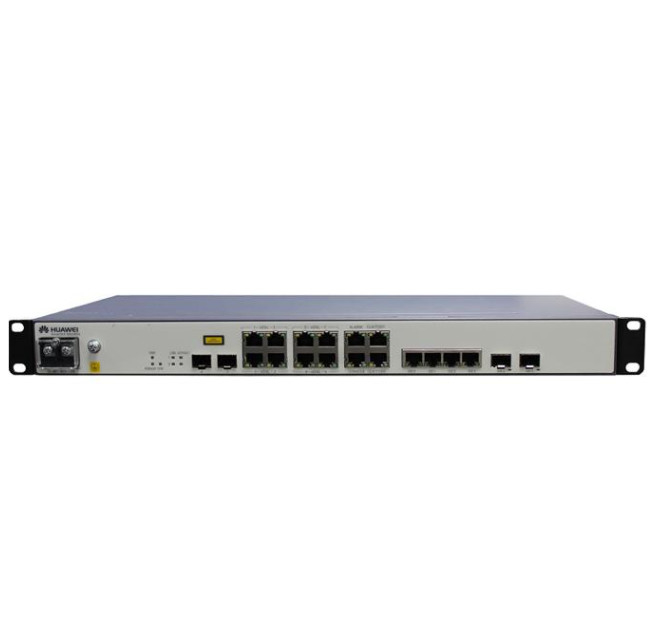

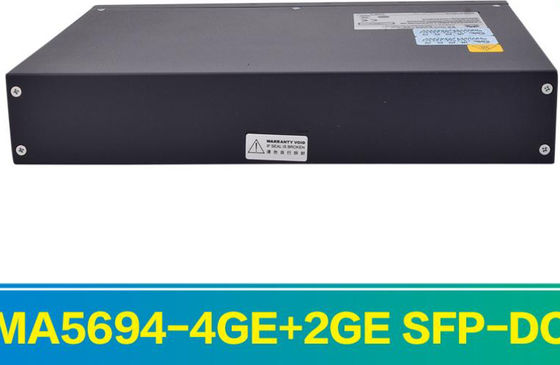

HuaWei MA5694 GPON ONT ONU With 4GE 2PON ONU Multi Service Access
HuaWei GPON/EPON ONU MA5694 with 4GE 2PON ONU multi-service access
Descriptions of MA5694
SmartAX MA5694 multi-service access equipment is a multi-service ONU launched by HW Technologies Co., Ltd. It is a 1U high indoor box-type device, which is mainly used for small base station service backhaul and small and medium-sized private line service bearer. MA5694 accesses the base station data service through the GE interface, uploads it to the IP/MPLS network through the OLT, and then transmits it to the RNC (Radio Network Controller) to realize the base station dedicated line access networking application. MA5694 can also access the data service of the enterprise through the GE interface, upstream to the DSLAM equipment through VDSL2 bonding, and then upstream to the OLT equipment.
Four downstream ports support 2 x GPON ports, plus 2 x GE electrical ports. The MA5698 adds 2 service slots for boards, each providing 8 x E1 or 8 x FE ports.
Engineered to operate over a broad range of temperature and humidity, and designed for easy installation and O&M, MA5694, MA5694S, MA5698 ONUs are an excellent choice for resilient GPON communication for offices and enterprise networks.
Specifications of MA5694
| Specifications | MA5694 |
|
Dimensions (H x W x D) |
43.6 mm x 250 mm x 180 mm |
| Operating Environment |
–40°C to +55°C 5% RH to 95% RH |
| Power |
AC: 220V DC: –48V |
| Network-side Ports |
2 x SFP, GPON/GE mode auto-negotiation One GE port supports GE optical and electrical combo |
| User-side Ports |
4 GE ports, two of which support GE optical and electrical configuration |
| Surge Protection | 6 kV |
| Weight | 3 kg |
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods? Answer: If you wish, we will organize and arrange all the deliveries to your office. Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union.
Q: Delivery time?
A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months.
This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
