Product Details:
|
Model Number: | IS-M5 | Brand Name: | UBNT |
---|---|---|---|
Dimensions: | 174 X 174 X 150 Mm | Weight: | 725.7 G |
Max. Power Consumption: | 6.5W | Gain: | 14 DBi |
Networking Interface: | 10/100/1000 Ethernet Port | Memory: | 64 MB DDR2 |
High Light: | 14dbi Outdoor Wireless Surveillance System,IS M5 Outdoor Wireless Surveillance System,14dbi Long Distance Wireless Bridge |
IS M5 14dbi Outdoor Wireless Surveillance System 5G Long Distance Wireless Bridge
UBNT outdoor 5G long-distance wireless bridge IS-M5 14dbi point-to-multipoint transmission
Descriptions

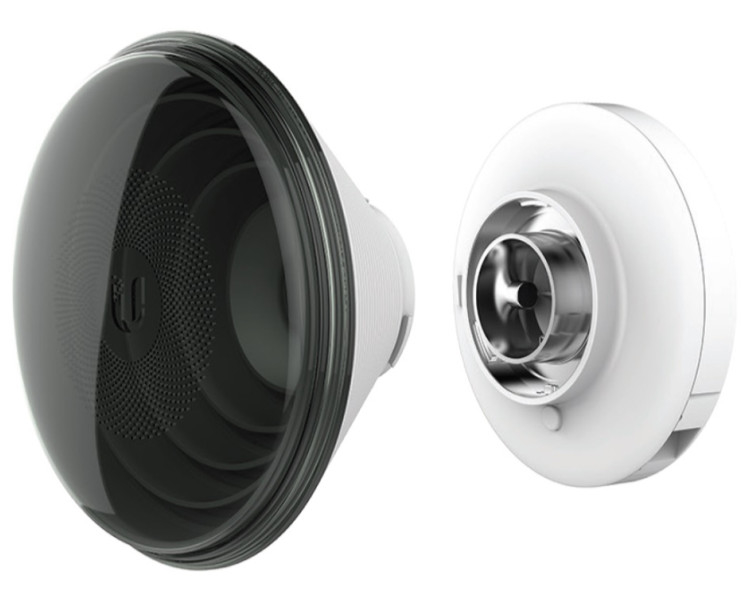

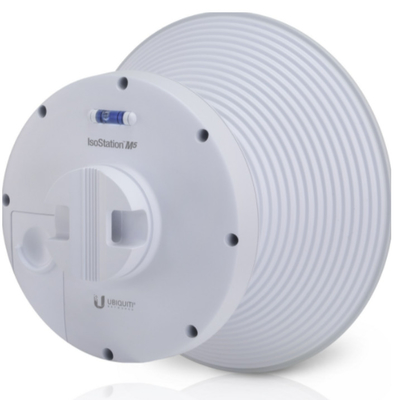

The IsoStation M5 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation M5.
Dish Antenna
Pair the IsoStation M5 with a robust dish antenna, model U-OMT-Dish, to provide SISO or 2x2 MIMO, dual-polarity performance as a client in a PtMP link. This radio/antenna combination delivers bandwidth to an extended number of WISP customers.
• Dish reflector design for excellent beam directivity
• Industrial-strength hardware for outdoor use
• HPOL and VPOL Beamwidth: 6.5°
• Antenna gain: 27 dBi
Specifications
Product name |
IS-M5 |
Dimensions With Horn Without Horn |
174 x 174 x 150 mm (6.85 x 6.85 x 5.91") 131 x 131 x 65 mm (5.16 x 5.16 x 2.56") |
Weight With Horn Without Horn |
725.7 g (1.6 lb) 408.2 g (0.9 lb) |
Max. Power Consumption |
6.5W |
Power Supply |
24V, 0.5A Gigabit PoE Adapter |
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Gain |
14 dBi |
Beamwidth |
45° (Default Horn) |
Networking Interface |
10/100/1000 Ethernet Port |
Memory |
64 MB DDR2 |
LED |
Power |
Wind Loading |
36 N @ 200 km/h (8.09 lbf @ 125 mph) |
Wind Survivability |
200 km/h (125 mph) |
ESD/EMP Protection |
± 24 kV Contact/Air |
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
Operating Humidity |
5 to 95% Noncondensing |
Certifications |
FCC,CCC,CE |
