Product Details:
|
| Model Number: | AGM5-HP-1724 | Output Power: | 25dBm |
|---|---|---|---|
| Interfaces: | 10/100 Ethernet Port | PoE In: | Yes, 12-24V |
| Antenna Gain DBi: | 27dBi | Warranty: | 1 Year |
| Typical Range (Based On PtP): | 25km+ | Max Power Consumption: | 3W |
| High Light: | AGM5-HP-1724,27dBi Outdoor Wireless Surveillance System,300mW Outdoor Wireless Surveillance System |
||

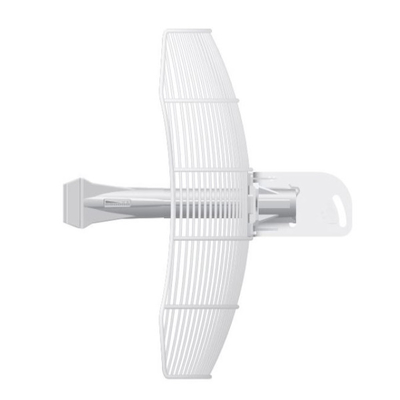

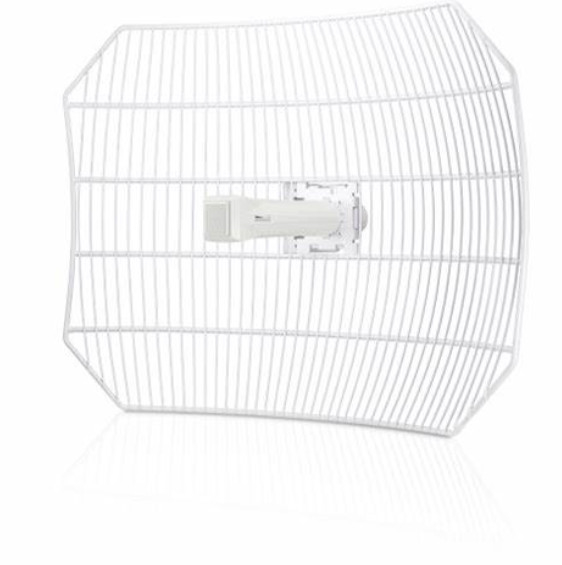

AGM5-HP-1724 27dBi Outdoor Wireless Surveillance System 300mW AirGrid M5
UBNT AirGrid M5 High Power Wireless CPE AGM5-HP-1724 27dBi 300mW 802.11a/n grid dish antenna
Ubiquiti AirGrid M5 27dBi 300mW 802.11a/n High Power Wireless CPE (AGM5-HP-1724)DescriptionUtilizing InnerFeed technology, the new Ubiquiti AirGrid M Series represents the evolution of outdoor broadband wireless devices. Complete antenna and high power 802.11a/n radio system integration provides revolutionary cost/performance solutions to the Worldwide Broadband Industry. The Ubiquiti AirGrid can be oriented to use either vertical or horizontal polarization. Mechanical design provides complete weatherproof performance. Activity and signal strength LED's provided for installers. Enhanced RF and Ethernet ESD/Surge protection enables prolonged operation in harshest environments. 50Mbps+ of real outdoor throughput and up to 20km+ long range. AirGrid products utilize Ubiquiti's revolutionary AirMax TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, AirControl application allows operators to centrally manage 100's of devices. Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Specifications
| Details | |
|---|---|
| Manufacturer's Code | AGM5-HP-1724 |
| Chipset | Atheros MIPS 24KC, 400MHz |
| Output Power | 25dBm |
| Operating Modes | AP/Station/WDS |
| Frequency Range | 5170 - 5875 MHz |
| Interfaces | (1) 10/100 Ethernet Port |
| Wireless standards | 802.11a/n |
| Temperature Range | -30 to 75° C |
| PoE In | Yes, 12-24V |
| Operating System | Ubiquiti airOS V |
| Antenna gain dBi | 27dBi |
| Max Power consumption | 3W |
| Number of chains | 1 |
| Polarisation | Vertical or Horizontal |
| Pole Diammeter | 30-55mm |
| IP Rating | IP64 |
| Typical Range (Based on PtP) | 25km+ |
Main advantage
1. High transmission power up to 150 Mbps.
2. Adopt airMAX technology.
3. Multiple operation modes.
4. High transmission rate5. The device uses the 802.11n standard combined with TDMA time division multiplexing to provide high transmission speed. The TDMA airMAX standard maintains scalability and throughput while maintaining low latency in PtMP networks. The operating modes provided include bridge, client, AP router, and access point.
Key attributes
* CPE unit with AP and WDS repeater functions
* Support TDMA, airMAX
* Transmission speed up to 150 Mbps
Package Contents
* heat sink
* PoE power supply
* power cable
* Mounting kit for mounting on the mast
* 27dBi sieve
* 2 x plastic parts for installing the radiator
