Product Details:
|
| Model Number: | AGM5-HP-1114 | Memory: | 32MB SDRAM, 8MB Flash |
|---|---|---|---|
| Transmission Power: | 25 DBm | Gain: | 23 DBi |
| Waist: | 370x270x264 Mm | Warranty: | 1 Year |
| Weight: | 1.440 Kg | Network Interface: | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet |
| High Light: | AGM5 HP 1114,23dBi Outdoor Antenna,23dBi 5GHz Grid Antenna |
||

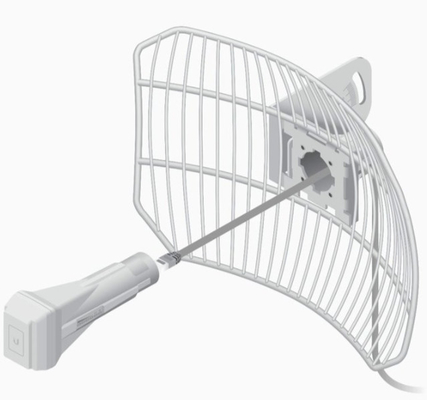

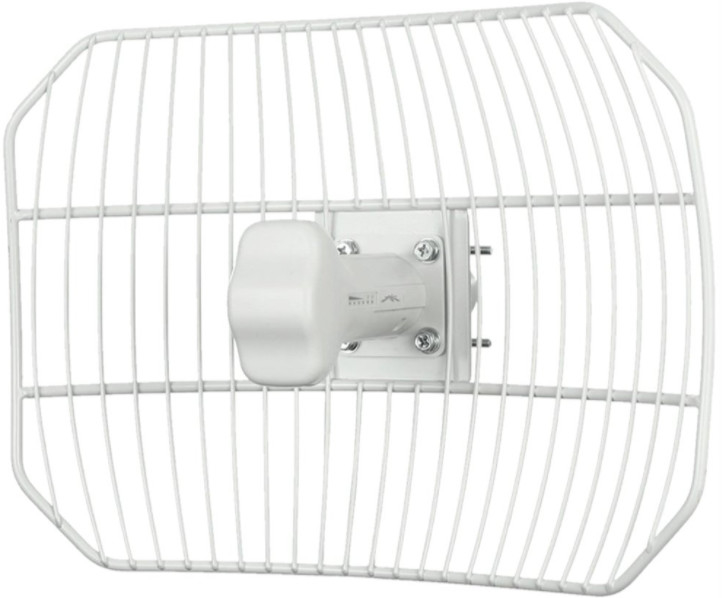

UBNT outdoor antenna AGM5-HP-1114 parabolic isotropic 23dBi 5GHz high performance grid antenna
Ubiquiti AirGrid M5 23dBi AGM5-HP-1114. Using InsideFeed technology, the new AirGrid M Series represents the development of outdoor broadband wireless devices. Integrated antennas and complete radio systems provide revolutionary cost/performance solutions for the global broadband industry.
Can be oriented to use vertical or horizontal polarization. Mechanical design provides complete weather performance. The LED works and the signal strength is provided to the installer. Enhanced RF and Ethernet ESD/Surge protection allows for prolonged operation in the most extreme environments.
100+Mbps actual outdoor throughput and a range of up to 30km. AirGrid products use Ubiquiti's revolutionary AirMax ™ TDMA protocol that enables ptMP network performance to be scalable. In addition, the AirControl app ™ allow operators to centrally manage 100 devices.
System Information:
| Processor | Atheros MIPS 24KC, 400MHz |
| Memory | 32MB SDRAM, 8MB Flash |
| Frequency Band | 5470 MHz-5825 MHz |
| Network Interface | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet |
| Transmission Power | 25 dBm |
| Gain | 23 dBi |
| Wireless Approvals | FCC Part 15.247, IC RS210, EC |
| RoHS | YES |
| Feeding | PoE 24V 0.5A Power Supply Included |
Physical parameters:
| Waist | 370x270x264 mm |
| Weight | 1,440 kg |
| Characteristics | Exterior UV resistant plastic |
| Operation of the same | -30°C to 75°C |
| Humidity | 5 to 95% condensed |
| Mounting Kit | Pole mounting kit included |
| Consumption | 3.0 Watts |
