Product Details:
|
| Model Number: | AF60 | Networking Interface: | 10/100/1000 Mbps Ethernet Port |
|---|---|---|---|
| Max. Power Consumption: | 11W | Dimensions: | 1.4 Kg (3.09 Lb) |
| Power Method: | Passive PoE, Pins 4, 5+ And 7, 8- | Power Supply: | 24VDC, 0.5A Gigabit PoE Adapter (Included) |
| Wind Survivability: | 200 Km/h (125 Mph) | Warranty: | 1 Year |
| High Light: | AF60 Outdoor Wireless Surveillance System,AirFiber 60,ubnt airfiber 60 |
||

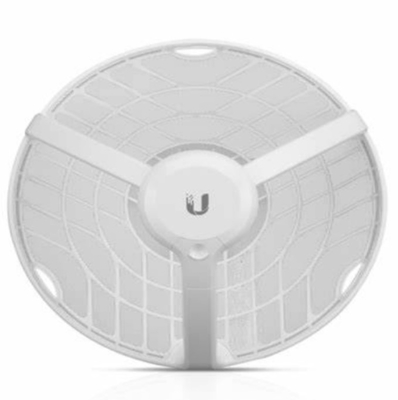

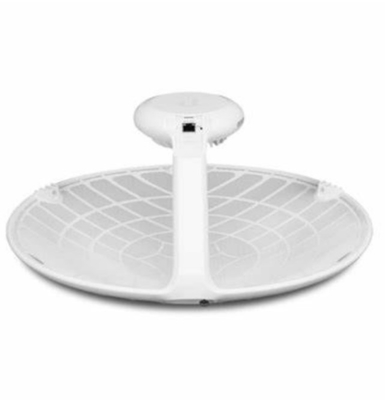

UBNT wireless bridge AF60 5 GHz long-distance radio system airFiber 60
airFiber 60 GHz/5 GHz Radio System with 1+ Gbps Throughput
AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.
Features
Specifications
| AF60 | |
|---|---|
| Dimensions | 413 x 413 x 320 mm (16.26 x 16.26 x 12.60") |
| Weight Without Mount With Mount |
1.4 kg (3.09 lb) 1.8 kg (3.97 lb) |
| Enclosure | Aluminum, UV-stabilized Polycarbonate |
| Antenna Gain 5 GHz 60 GHz |
11 dBi 38 dBi |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet Port |
| Max. Power Consumption | 11W |
| Power Method | Passive PoE, Pins 4, 5+ and 7, 8- |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter (Included) |
| Voltage Range | +22 to +26VDC |
| LEDs | Power/Ethernet/5G/60G/GPS |
| Mounting | Pole Mount (Included) |
| Wind Loading | 420 N @ 200 km/h (94.4 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum Throughput | 1.8 Gbps |
| Maximum Range | 2+ km |
| Encryption | WPA2-PSK (AES)/WPA2 Enterprise |
| OS | airOS GP |
| Radio | |
| Max. Conducted TX Power 5/60 GHz Combined |
25 dBm |
| Channel Bandwidth 60 GHz 5 GHz |
2160 MHz 20/40/80 MHz |
| Operating Frequency (Mhz) | |
| US/CA U-NII-1 U-NII-3 |
5150 – 5250 5725 – 5850 57,000 – 66,000 |
| Worldwide | 5180 - 5875 57,000 - 66,000 |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 |
| US/CA | 2412 - 2462 |
FAQ
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union.
Q: Delivery time?
A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
