Descriptions

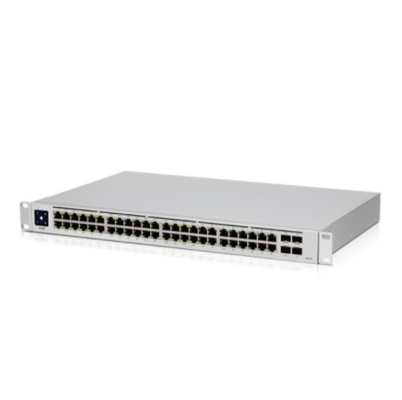

The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports. The versatile USW 48 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) GbE RJ45 ports
- (4) 1G SFP ports
- Fanless, silent cooling
Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") |
| Weight |
Without Mount: 3.9 kg (8.6 lb) With Mount: 3.99 kg (8.8 lb) |
| Enclosure Characteristics | SGCC Steel |
| Hardware | |
| Total Non-Blocking Line Rate | 52 Gbps |
| Max. Power Consumption | 40W |
| Forwarding Rate | 77.376 Mpps |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100 - 240VAC |
| Networking Interfaces |
(48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System |
(1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
FAQ
With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2. What's your shipping way?
Shopped by air sea express
3. What is the product used for packing?
We always use catron, Unless you have different packing needs
