Product Details:
|
| Model Number: | TN17LTXT61 | Port: | 10-channel 10Gbit/s |
|---|---|---|---|
| Typical Power Consumption(W): | 29W | Maximum Power Consumption(W): | 30W |
| Dimension (W X H X D, Mm): | 193.8 X 19.8 X 205.9mm | Working Temperature: | -40℃~+65℃ |
| Weight(kg): | 0.65 Kg | Warranty: | 1 Year |
| High Light: | Wavelength Conversion Board,TN17LTXT61,OSN8800 Conversion Board |
||

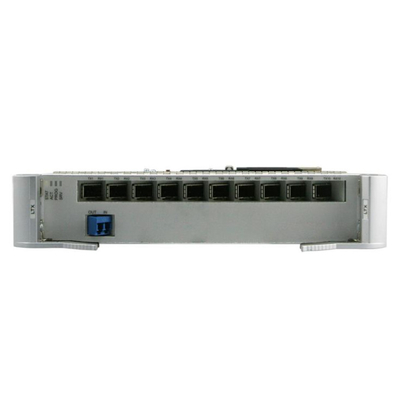

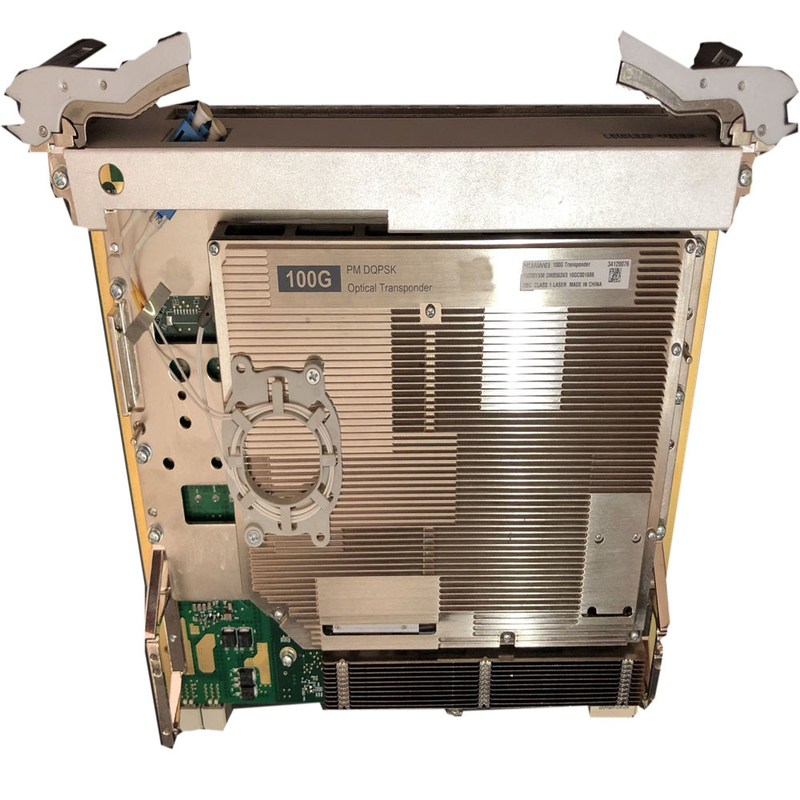

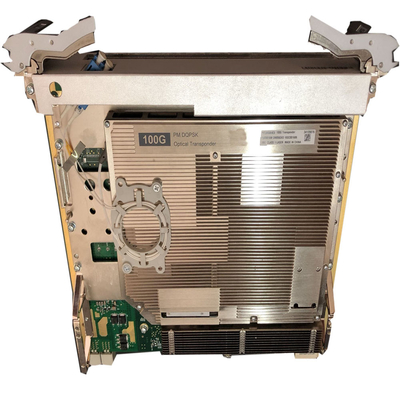

TN17LTXT61 Wavelength Conversion Board HuaWei OSN8800 100G Business Board
HuaWei OSN8800 100G business board TN17LTXT61 10-channel 10Gbit/s wavelength conversion board
Overview
The LTX board is mainly used to achieve wavelength tunable and to provide OTN interfaces and ESC.
Features
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function |
LTX converts signal as follows:
|
||
| Client-side service type |
10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s |
||
| OTN function |
NOTE:
The functions on ODUflex layer are only supported by TN15LTX/TN17LTX, the TCM and TCM non-intrusive monitoring function on ODU2 layer are only supported by TN15LTX/TN17LTX.
|
||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | The board can tune the optical signal output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz. | ||
| ESC function | Supported on the WDM-side, supported by the TN12LTX/TN15LTX/TN17LTX when the client-side service type is OTU2 or OTU2e.
NOTE:
When being provisioned with the OTU2/OTU2e service on the client side, the board supports ESC transparent transmission, but not ESC processing.
When the ESC function is required, the TN15LTX/TN17LTX board receives one to six signals on the client side. |
||
| PRBS test function |
Supports the PRBS function on the client and WDM sides. NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192/OTU2/OTU2e.
|
||
| LPT function | The board supports the LPT function only when the client-side service type is 10GE LAN. | ||
| FEC coding |
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
|
||
| Alarms and performance events monitoring |
|
||
| Regeneration board |
The WDM-side signals of an LTX board can be regenerated using the LTX, NS4 board of the same type.For example,
|
||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| Test frame |
TN11LTX/TN12LTX: Not supported TN15LTX/TN17LTX: Supports the test frame function when the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping(10.7G) on its client side. |
||
| Latency measurement |
The TN12LTX/TN15LTX/TN17LTX board support latency measurement. The bidirectional latency at the ODUk layer between two OTU boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE:
When the client service is OTU2/OTU2e, only the TN17LTX board supports TCM latency measurement. The latency measurement function can be configured only on one port at a time. |
||
| IEEE 1588v2 | Not supported | ||
| Physical clock | When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. | ||
| Optical-layer ASON | Supported | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme |
|
||
| Ethernet service mapping mode |
TN11LTX/TN12LTX: Bit Transparent Mapping (11.1G) TN15LTX/TN17LTX: Bit Transparent Mapping (11.1G)and MAC Transparent Mapping(10.7G) |
||
| Loopback | Client side | Inloop | Supported |
| Outloop | |||
| WDM side | Inloop | Supported | |
| Outloop | |||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) |
IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) |
|
| Protocols or standards for service processing (performance monitoring) |
ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1
|
||
