Product Details:
|
| Model Number: | PBE-M5-620 | Dimensions: | 650 X 650 X 386 Mm (25.6 X 25.6 X 15.2") |
|---|---|---|---|
| Weight: | 6.4 Kg (14.11 Lb) | Networking Interface: | 10/100/1000 Ethernet Port |
| Max. Power Consumption: | 8.5W | Power Supply: | 24V, 0.5A Gigabit PoE Supply (Included) |
| Gain: | 24 DBm | Warranty: | 1 Year |
| High Light: | PBE M5 620,UBNT Outdoor Wireless Surveillance System,PowerBeam airMAX Bridge |
||

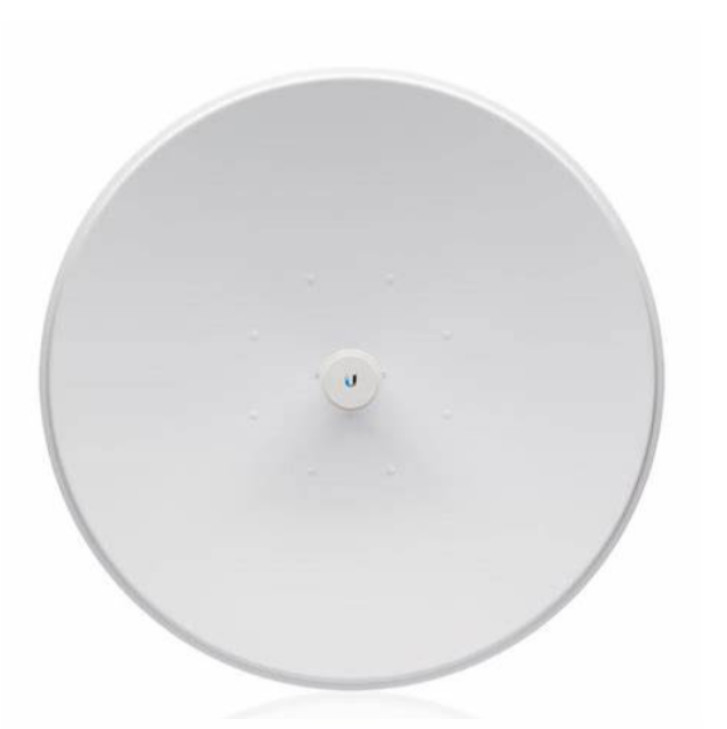

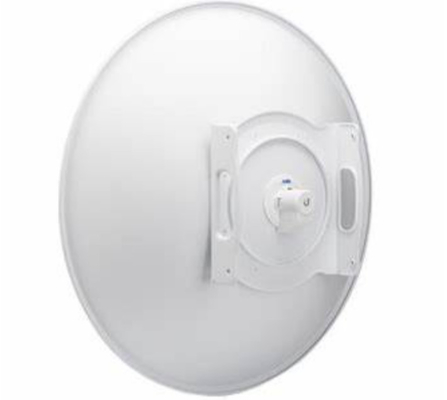

UBNT PowerBeam airMAX Bridge PBE-M5-620 10/100/1000 Ethernet port outdoor antenna wireless bridge
Starting with the first generation NanoBridge, Ubiquiti Networks pioneered the all in one design for an airMAX product functioning
as a CPE (Customer Premises Equipment). The PowerBeam was the next generation of Ubiquiti Networks CPE's. Improved Noise
Immunity The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or
spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF
signals of the same or similar frequency. Integrated Design Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn
of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high
performance and innovative mechanical
design at a low cost, the PowerBeam is extremely versatile and cost effective to deploy.
airMAX Technology Included Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows
each client to send and receive data using predesignated time slots scheduled by an intelligent AP controller. This time slot method
eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency,
throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS. Priority is given to voice/video for seamless streaming. Scalability. High capacity and scalability. Long Distance.
Capable of high speed, carrier class links.
Product specifications
| PBE-M5-620 | |
|
Dimensions |
650 x 650 x 386 mm (25.6 x 25.6 x 15.2") |
|---|---|
|
Weight |
6.4 kg (14.11 lb) |
|
Gain |
29 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
8.5W |
|
Max. Output Power |
24 dBm |
|
Power Supply |
24V, 0.5A Gigabit PoE Supply (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
872 N @200 km/h (196 lbf @125 mph) |
|
Mounting |
Pole Mounting Kit Included |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
| Operating Frequency (MHz) | ||
|
Worldwide |
5150 - 5875 | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
