Product Details:
|
| MODEL: | RBD52G-5HacD2HnD-TC | Dimensions: | 34 X 119 X 98mm |
|---|---|---|---|
| PoE In: | Passive PoE | License Level: | 4 |
| Max Power Consumption: | 21W | Max Power Consumption Without Attachments: | 16W |
| Size Of RAM: | 128 MB | CPU Nominal Frequency: | 716MHz |
| High Light: | RBD52G-5HacD2HnD-TC,ROS Optical Fiber Wifi Router,716MHz Optical Fiber Wifi Router |
||
RBD52G-5HacD2HnD-TC Optical Fiber Wifi Router ROS Full Gigabit Dual Band
MikroTik RBD52G-5HacD2HnD-TC(hAP ac2) ROS full gigabit dual-band wireless router RouterOS enterprise-class home WiFi 21W
Descriptions of RBD52G-5HacD2HnD-TC

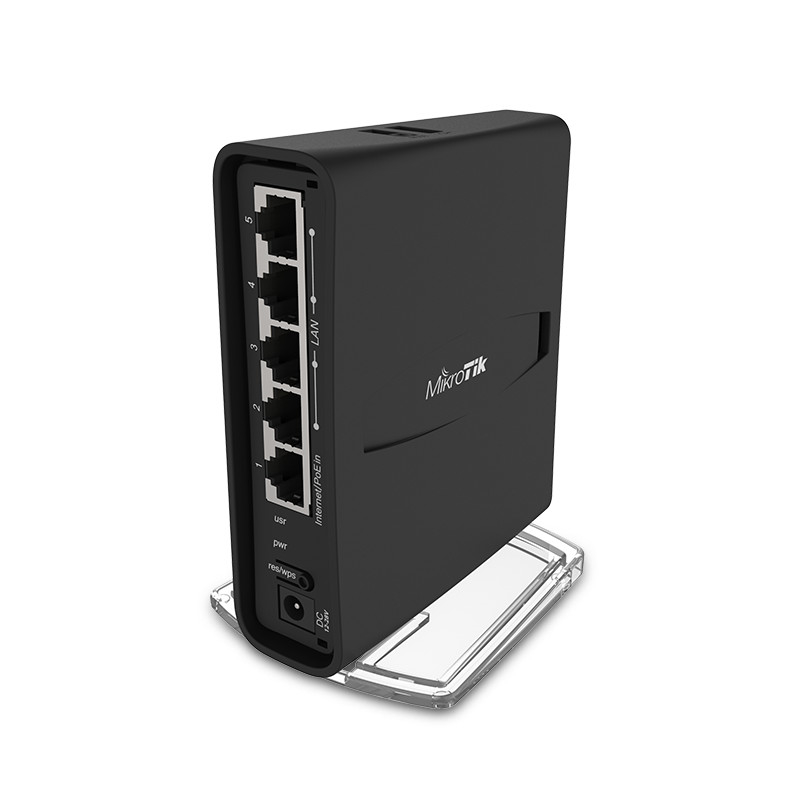

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.
New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available:
* hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
* hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications of RBD52G-5HacD2HnD-TC
Specifications
|
Details |
|
|---|---|
|
Product code |
RBD52G-5HacD2HnD-TC |
|
Architecture |
ARM 32bit |
|
CPU |
IPQ-4018 |
|
CPU core count |
4 |
|
CPU nominal frequency |
716 MHz |
|
Dimensions |
34 x 119 x 98mm |
|
License level |
4 |
|
Operating System |
|
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 50°C |
|
Details |
|
|---|---|
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
18-28 V |
|
Number of DC inputs |
2 (PoE-IN, DC jack) |
|
DC jack input Voltage |
12-30 V |
|
Max power consumption |
21 W |
|
Max power consumption without attachments |
16 W |
|
Details |
|
|---|---|
|
AC speed |
AC1200 |
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Wi-Fi generation |
5 |
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz chip model |
IPQ-4018 |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
2.5 |
|
Wireless 5 GHz chip model |
IPQ-4018 |
FAQ
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2. What's your shipping way?
Shopped by air sea express
3. What is the product used for packing?
We always use catron, Unless you have different packing needs
With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.
