Product Details:
|
| Product Name: | CCR1036-8G-2S+EM | Dimensions: | 443 X 193 X 44 Mm |
|---|---|---|---|
| 10/100/1000 Ethernet Ports: | 8 | SFP+ Ports: | 2 |
| Max Power Consumption: | 73 W | AC Input Range: | 100-240V |
| Storage Size: | 1GB | CPU Core Count: | 36 |
| High Light: | 240V Mikrotik Routerboard,1GB Mikrotik Routerboard,CCR1036-8G-2S+EM |
||

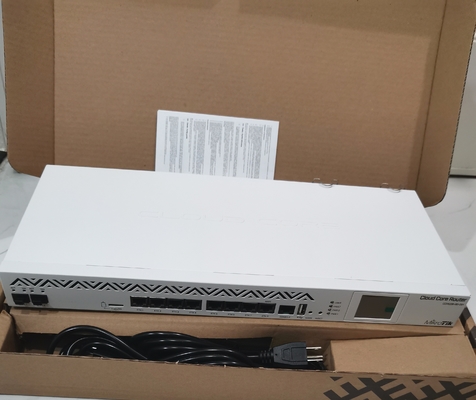

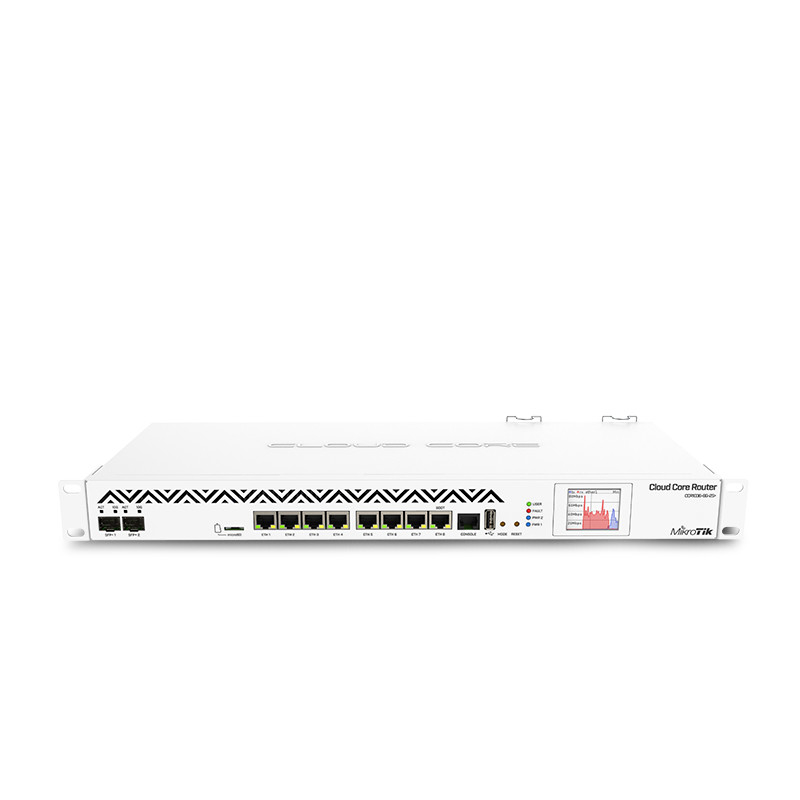

240V Mikrotik Routerboard CCR1036-8G-2S+EM Gigabit Ethernet Ports Enterprise Router
Descriptions
CCR1036-8G-2S+EM1U rackmount, 8x Gigabit Ethernet, 2xSFP+ cages, LCD, 36 cores x 1.2GHz CPU, 8GB RAM, 41.5mpps fastpath, Up to 28Gbit/s throughput, RouterOS L6, Dual PSU
Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and a serial console port.

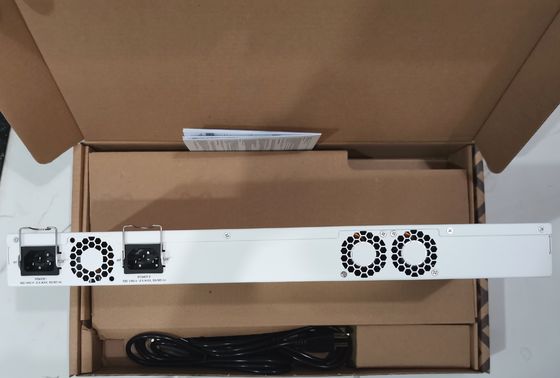

The new version of CCR1036-8G-2S+EM has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
Supports both SFP (1.25G) and SFP+ (10G) modules
Specifications
|
Details |
|
|---|---|
|
Product code |
CCR1036-8G-2S+EM |
|
Architecture |
TILE |
|
CPU |
TLR4-03680 |
|
CPU core count |
36 |
|
CPU nominal frequency |
1.2 GHz |
|
Dimensions |
443 x 193 x 44 mm |
|
RouterOS license |
6 |
|
Operating System |
RouterOS |
|
Size of RAM |
8 GB |
|
Storage size |
1 GB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 60°C |
|
IPsec hardware acceleration |
Yes |
Powering
|
Details |
|
|---|---|
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Max power consumption |
73 W |
|
FAN count |
2 |
Ethernet
|
Details |
|
|---|---|
|
10/100/1000 Ethernet ports |
8 |
Fiber
|
Details |
|
|---|---|
|
SFP DDMI |
Yes |
|
SFP+ ports |
2 |
Peripherals
|
Details |
|
|---|---|
|
Memory card type |
microSD |
|
Memory Cards |
1 |
|
Serial console port |
RJ45 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
Other
|
Details |
|
|---|---|
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Mode button |
Yes |
Certification & Approvals
|
Details |
|
|---|---|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
