Descriptions

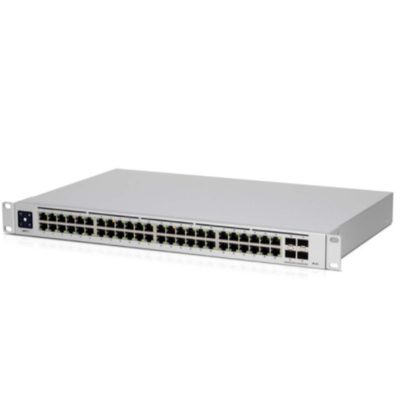

The Switch Pro 48 (USW Pro 48) is a fully managed switch with (48) GbE RJ45 ports and (4) 10G SFP+ ports. The USW Pro 48 combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 48 is an ideal aggregation and access layer switch for any UniFi system. It combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) GbE RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- Near-silent cooling
- Layer 3 switching features
Specifications
Mechanical | |
---|---|
Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
Weight With Brackets |
4.00 kg (8.82 lb) 4.09 kg (9.02 lb) |
Interfaces Networking Management |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
Total Non-Blocking Throughput | 88 Gbps |
Switching Capacity | 176 Gbps |
Forwarding Rate | 130.944 Mpps |
Power Method Universal Input USP RPS DC Input |
100-240VAC, 50/60 Hz 11.5VDC, 5.22A |
Power Supply | AC/DC, Internal, 60W |
Voltage Range | 100 to 240VAC |
Max Power Consumption | 60W |
LEDs RJ45 Data Ports SFP+ Data Ports |
Speed/Link/Activity Link/Activity |
ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
Shock and Vibration | ETSI300-019-1.4 Standard |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 10 - 90% Noncondensing |
Certifications | CE, FCC, CCC |
