Descriptions

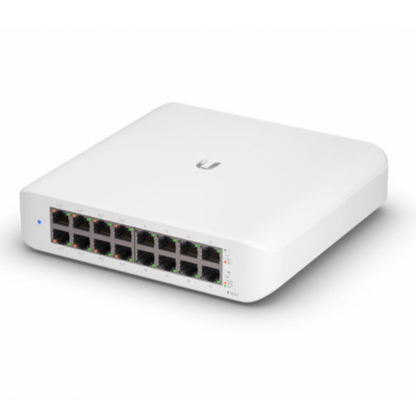

Layer 2, PoE switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports.
The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
-
- (8) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE RJ45 ports
- 45W total PoE supply
- Fanless, silent cooling

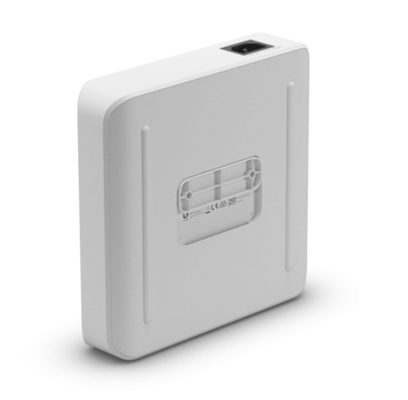

- Wall-mountable (kit included)
Specifications
| Mechanical | |
|---|---|
| Dimensions | 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72") |
| Weight | 1.2 kg (2.65 lb) |
| Hardware | |
| Total Non-Blocking Line Rate | 16 Gbps |
| Max. Power Consumption | 15W |
| Power Method | Universal AC Input: 100-240VAC |
| Power Supply | Internal 60W AC/DC Power Supply |
| Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Mangement Interface | Ethernet In-Band |
| Max PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifcations | CE, FCC, CCC |
| LED | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
