Product Details:
|
| Brand Name: | UBNT | Model Number: | R5AC-PTP |
|---|---|---|---|
| Dimensions: | 198.5 X 86.4 X 44.1 Mm (7.82 X 3.40 X 1.74") | Weight: | 295 G (10.41 Oz) |
| Networking Interface: | 10/100/1000 Ethernet Port | Max. Power Consumption: | 8.5W |
| Power Supply: | 24V, 0.5A Gigabit PoE Adapter (Included) | Power Method: | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Warranty: | 1 Year | ||
| High Light: | R5AC PTP Outdoor Wireless Surveillance System,airMAX Outdoor Wireless Surveillance System,airMAX Ubiquiti Networks |
||

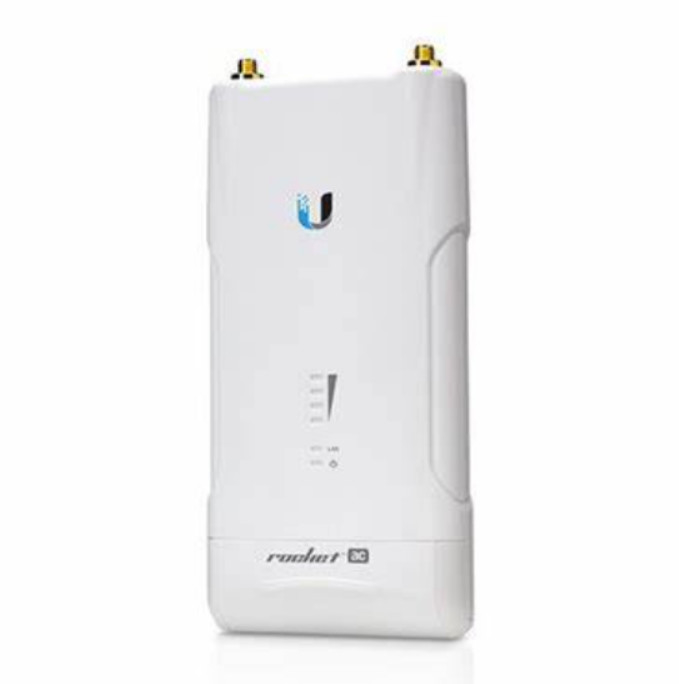

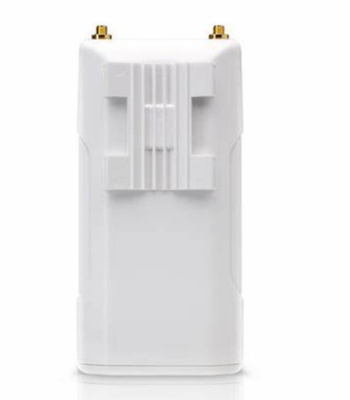

R5AC PTP Outdoor Wireless Surveillance System 10/100/1000Mbps airMAX
Ubiquiti Networks has designed the first airMAX ac radios with high performance and ease of installation in mind. You have the freedom to deploy the Rocket ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
The Rocket ac is available as three models: the Rocket5ac Lite, Rocket5ac PtP, and Rocket5ac PtMP. All three include airMAX ac technology. The Rocket5ac PtP and Rocket5ac PtMP also feature airPrism technology to further enhance performance.
Pair the Rocket ac with airMAX ac antennas for optimal performance:
* PtMP functionality is available with a firmware upgrade to airOS v7.1 or higher.
Launched with PtP functionality, the Rocket5ac Lite adds PtMP functionality with a firmware upgrade to airOS v7.1 or higher. The Rocket5ac Lite is a cost-effective basestation for links experiencing low or moderate levels of interference.
Featuring Ubiquiti's airPrism technology, the Rocket5ac PtP is designed for optimal PtP performance, although it can operate in PtMP mode. To take full advantage of its design and capabilities, deploy the Rocket5ac PtP for PtP links in noisy, high-density areas.
Also featuring Ubiquiti's airPrism technology, the Rocket5ac PtMP is designed for optimal PtMP performance, although it can operate in PtP mode. To take full advantage of its capabilities, deploy the Rocket5ac PtMP for PtMP links to airMAX ac CPEs located in crowded RF environments.
Specifications
| Rocket5ac PtP | |
|
Dimensions |
198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74") |
|---|---|
|
Weight |
295 g (10.41 oz) |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
RF Connectors |
(2) RP-SMA (Waterproof) |
|
LEDs |
Power, LAN, (4) Signal Strength |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
8.5W |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Operating Temperature |
-40 to 80° C (-40 to 176° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
ESD/EMP Protection |
± 24KV Contact / Air for Ethernet |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
| Operating Frequency (MHz) | ||
|
Worldwide |
5150 - 5875 | |
|---|---|---|
|
US/CA |
U-NII-2C: |
5470 - 5725 |
|
U-NII-3: |
5725 - 5850 | |
