Product Details:
|
| Brand Name: | UBNT | Model Number: | R5AC-PTMP |
|---|---|---|---|
| Dimensions: | 198.5 X 86.4 X 44.1 Mm (7.82 X 3.40 X 1.74") | Weight: | 295 G (10.41 Oz) |
| Networking Interface: | 10/100/1000 Ethernet Port | Max. Power Consumption: | 8.5W |
| Power Supply: | 24V, 0.5A Gigabit PoE Adapter (Included) | Power Method: | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Warranty: | 1 Year | ||
| High Light: | 5G Ubnt Rocket,WiFi Ubnt Rocket,ubnt Large Broadband Base Station |
||

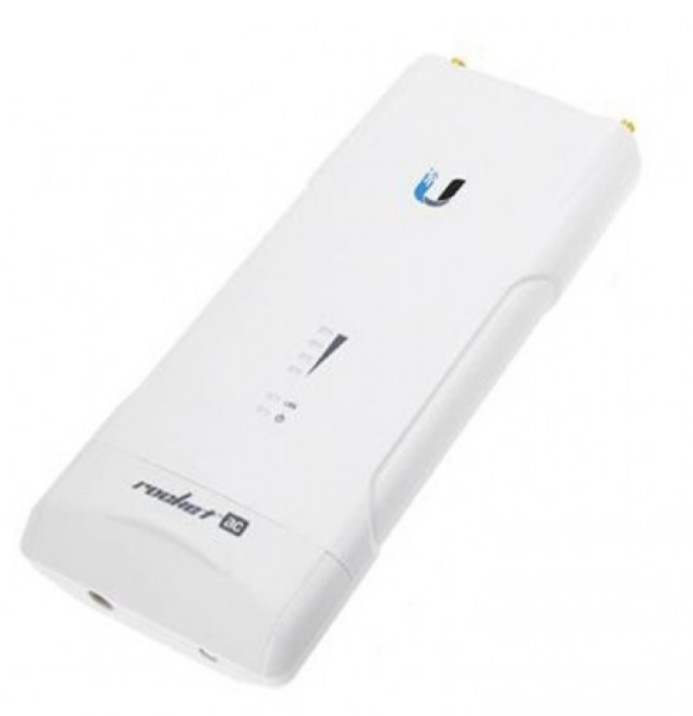

5G Ubnt Rocket AC R5AC-PTMP Airmax Large Broadband Base Station WiFi
|
1. RP-SMA Antenna Connectors |
|---|
| Used to attach RF cables (not included). |
|
2. LEDs |
|
Signal In airOS®, you can modify the wireless signal strength threshold values for each LED on the Wireless tab under Signal LED Thresholds. Each LED will light when the wireless signal strength is equal to or greater than the LED’s threshold value. The default values are shown below:
LAN The LAN LED will light steady blue when an active Ethernet connection is made to the LAN port and flash when there is activity. Power The Power LED will light blue when the device is connected to a power source. |
|
3. Additional LEDs |
| Reserved for future use. |
|
4. Reset Button |
| To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on. Alternatively, the device may be reset remotely via a Reset button located on the bottom of the Gigabit PoE adapter. |
|
5. LAN/PoE |
|
The Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. |
Specifications
|
Rocket5ac PtMP |
|
|
Dimensions |
198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74") |
|---|---|
|
Weight |
295 g (10.41 oz) |
|
Operating Frequency |
Worldwide: 5470 - 5875 MHz |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
RF Connectors |
(2) RP-SMA (Waterproof) |
|
LEDs |
Power, LAN, (4) Signal Strength, (5) Reserved |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
8.5W |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Operating Temperature |
-40 to 80° C (-40 to 176° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
ESD/EMP Protection |
± 24KV Contact / Air for Ethernet |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
|
Operating Frequency (MHz) |
||
|
Worldwide |
5150 - 5875 |
|
|---|---|---|
|
US/CA |
U-NII-2C: |
5470 - 5725 |
|
U-NII-3: |
||
