Product Details:
|
| Brand Name: | UBNT | Model Number: | R2AC-PRISM/-US |
|---|---|---|---|
| Networking Interface: | 10/100/1000 Ethernet Port | Dimensions: | 88 X 40 X 230 Mm (3.47 X 1.58 X 9.06") |
| Weight: | 400 G (14.11 Oz) | Max. Power Consumption: | 9.5W |
| Power Supply: | 24V, 0.5A Gigabit PoE Adapter (Included) | Power Method: | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Warranty: | 1 Year | ||
| High Light: | UBNT AirMAX,2.4 GHz ubiquiti airmax,2.4 GHz ubiquiti rocket |
||

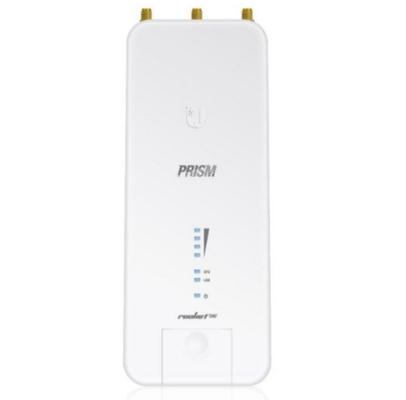

UBNT AirMAX Ac Wireless Bridge Base Station 2.4 GHz Outdoor Coverage 330+ Mbps
Overviews
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. Pair the Rocket 2AC Prism with airMAX antennas for optimal performance:
• Point-to-Point (PtP) backhaul RocketDish™ Antenna
• Point-to-MultiPoint (PtMP) links airMAX Sector Antenna
2.4 GHz Coverage
Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).
Powerful Wireless Features
• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/40 MHz
• PtMP: 10/20/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security
Usability Enhancements
• airMagic® Channel Selection Tool
• Dynamic Configuration Changes
• Instant Input Validation
• Redesigned User Interface
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Diagnostic Tools, including Ethernet Cabling Test, RF Diagnostics, and airView® Spectrum Analyzer
Specifications
| R2AC-PRISM | |
|
Dimensions |
88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
|---|---|
|
Weight |
400 g (14.11 oz) |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
RF Connectors |
(2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
|
LEDs |
Power, LAN, (4) Signal Strength |
|
Enclosure |
Die-Cast Aluminum with White Powder Coating |
|
Max. Power Consumption |
9.5W |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Operating Temperature |
-40 to 80° C (-40 to 176° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
ESD/EMP Protection |
± 24kV Contact / Air for Ethernet |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
| Operating Frequency (MHz) | |
|
Worldwide |
2412 - 2472 |
|---|---|
|
US/CA |
2412 - 2462 |
| Management Radio (MHz) | |
|
Worldwide |
5150 - 5250 |
|---|---|
|
US/CA |
U-NII-3: 5725 - 5850 |
