S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board

S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board
S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board

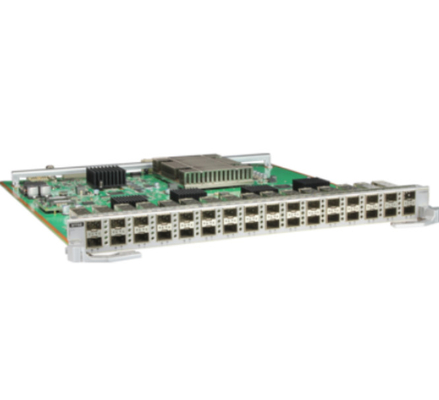

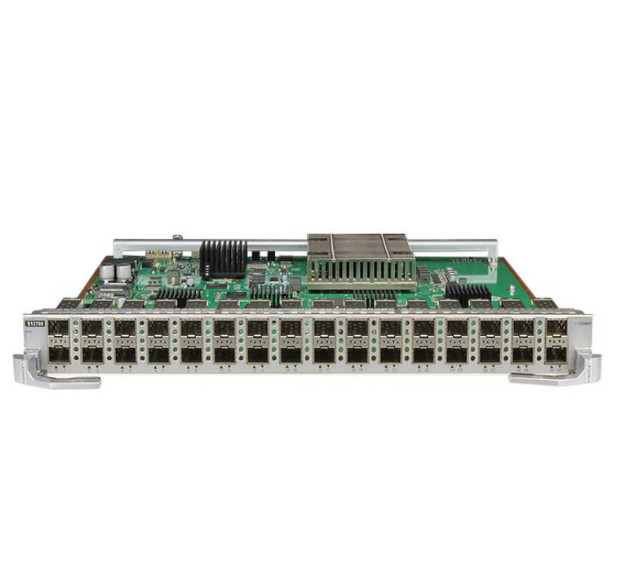

Large Image :  S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: ET1D2X32SSC0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board

Description
Brand: HuaWei Product Name: ET1D2X32SSC0
Dimensions: 397.2mm×430.4mm×35.1mm Weight: 3.02kg
Maximum Power Consumption: 207W The Connector Type: SFP
Hot-swap: Backing Warranty: 1 Year
High Light:

HuaWei ET1D2X32SSC0

,

S7700 olt optical line terminal

,

32 Port olt optical line terminal

S7700 olt optical line terminal ET1D2X32SSC0 32 Port SFP+ Gigabit Interface Board



software companion relationships

The single board name

S12704 FRAME, S12708 FRAME, S12712 FRAME

S12710 FRAME

ET1D2X32SSC0 V200R008C00 AND LATER RELEASE SUPPORT V200R010C00 AND LATER RELEASE SUPPORT

Single board overview

The ET1D2X32SSC0 can be installed in:

  • SLOTS NOS. 01 TO 04 OF THE S12704 FRAME.
  • SLOTS NOS. 01 TO 08 OF THE S12708 FRAME.
  • SLOTS 01 TO 10 OF THE S12710 FRAME.
  • SLOTS 01 TO 12 OF THE S12712 FRAME.

Function

ET1D2X32SSC0 features and features

Function

Description

basic features Data access and switching with 32 10g ethernet optical interfaces
Distributed forwarding Data is forwarded in parallel through a distributed data plane
Hot-swap Backing

Interface instructions

10GBASE SFP/1000BASE-X-RAY INTERFACE

Properties of optical interfaces (using GE light modules)

Attribute

Description

The connector type SFP+
Optical interface properties

DETERMINED BY THE SELECTED SFP LIGHT MODULE.

The light modules supported by ET1D2X32SSC0 and their properties can be found in GE eSFP Packaged Light Module, GE-CWDM eSFP Package ColorEd Light Module, GE-DWDM eSFP Package Color Light Module.

Meet the criteria IEEE802.3z
Frame formats are supported Ethernet_II,Ethernet_SAP,Ethernet_SNAP
Support for network protocols IP
Properties of the optical interface (using 10GE optical modules, high-speed cables, or SFP-light cables)

Attribute

Description

The connector type SFP+
Optical interface properties

It is determined by the selected SFP-SFP-plus high-speed cable (1m, 3m, 5m, 10m),QSFP-4-SFP-high-speed cable (1m, 3m, 5m),SFP-optical module or SFP-light cable.

The light modules supported by ET1D2X32SSC0 and their properties can be found in the 10GE SFP-Packaged Optical Module, the 10GE-CWDM SFP-Package ColorEd Light Module, andthe 10GE-DWDM SFP-Package Color Light Module.

Meet the criteria IEEE 802.3ae
Frame formats are supported Ethernet_II,Ethernet_SAP,Ethernet_SNAP
Support for network protocols IP
Properties of the optical interface (using photo modules)

Attribute

Description

The connector type SFP
Optical interface properties

DETERMINED BY THE SELECTED SFP PHOTOELECTRIC MODULE.

The single-board supported photoelectric modules and their properties can be found in the GE SFP Package Photoelectric Module (supports 1000M rates).

Meet the criteria IEEE 802.3ab
Frame formats are supported Ethernet_II,Ethernet_SAP,Ethernet_SNAP
Support for network protocols IP

Specification parameters

The parameter item

Description

physical parameters
  • size (w× depth × height): 397.2mm×430.4mm×35.1mm
  • weight: 3.02kg
  • MAXIMUM POWER CONSUMPTION: 207W
