Product Details:
|
| Brand: | HuaWei | Product Name: | ET1D2X32SSC0 |
|---|---|---|---|
| Dimensions: | 100mm× 208mm × 40mm | Weight: | 0.5kg |
| Maximum Power Consumption: | 18.83W | STORAGE TEMPERATURE: | -40C TO 70C |
| RELATIVE HUMIDITY: | 5%RH TO 95%RH | Warranty: | 1 Year |
| High Light: | ES5D21Q04Q01,HuaWei GPON Optical Line Terminal,QSFP+ Interface Board |
||

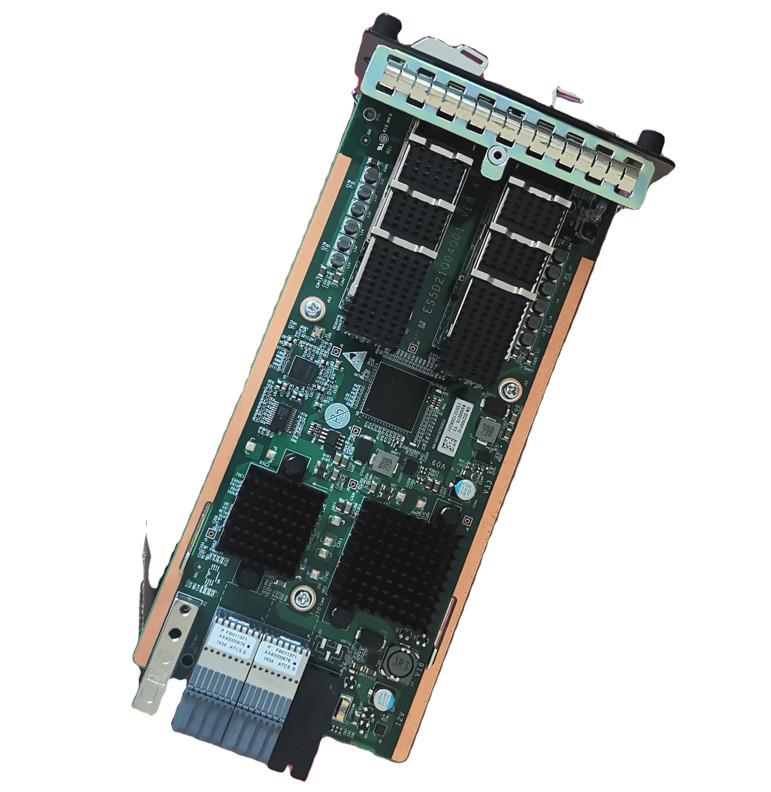

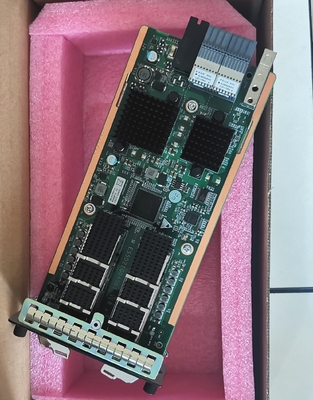

ES5D21Q04Q01 HuaWei 4-port 40GE QSFP+ interface board S6720EI switch dedicated
|
Card model |
Version description |
|---|---|
| ES5D21Q04Q01 |
S5730-SI and S5730S-EI: V200R011C10 to V200R019C10 version support. S5736-S: V200R020C00 and later release support. |
Card overview
|
Card |
The device model |
|---|---|
| ES5D21Q04Q01 |
|
|
Features and features |
Description |
|---|---|
| Basic features | PROVIDES 4 40GE QSFP PLUS OPTICAL INTERFACE DATA ACCESS AND LINE SPEED EXCHANGE. EACH 40GE INTERFACE SUPPORTS SPLITTING INTO 4 10GE USES. |
| Hot-swap | Backing |
| Business mouth stacking |
Can be used for stacking interfaces for devices. Illustrate:
THE 40GE INTERFACE IS SPLIT INTO 4 10GE INTERFACES AND CANNOT BE STACKED AS A BUSINESS PORT AFTER USE. |

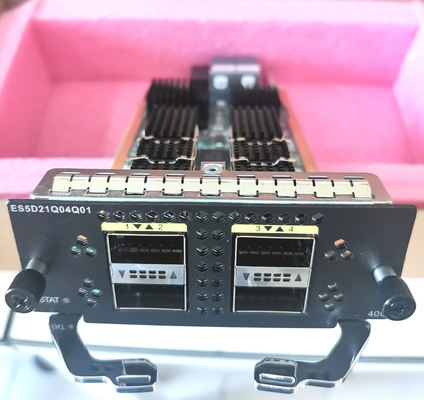

40GE QSFP PLUS OPTICAL INTERFACE
The 40GE QSFP-optical interface is used to receive and send 40GE services, and when the interface is split into 4 10GE interfaces, a QSFP-optical module and fiber optics of 1 minute, a QSFP-AOC light cable (V200R009C00 version and later version support) or a 1-minute QSFP-plus cable are required.
The four optical interfaces provided by the card can only support QSFP-light modules, QSFP-AOC light cables (V200R009C00 version and later version support; 10m; QSFP-<-> QSFP plus or QSFP-<->4 x SFP) and QSFP plus cables (1m, 3m, 5m; QSFP plus <-> QSFP plus or QSFP plus <->4 x SFP plus).
|
Attribute |
Description |
|---|---|
| The connector type | LC/MPO |
| Optical interface properties | Depending on the light module selected, see the"40GE QSFP plus Packaged Optical Module" section for details. |
| Meet the criteria | IEEE 802.3ba |
|
The parameter item |
Description |
|---|---|
| Physical parameters |
|
| Environment parameters |
Illustrate:
The ES5D21Q04Q01 operates at an operating temperature of 0C to 40C when the QSFP-light module is optional on S5730-SI and S5730S-EI devices. |
