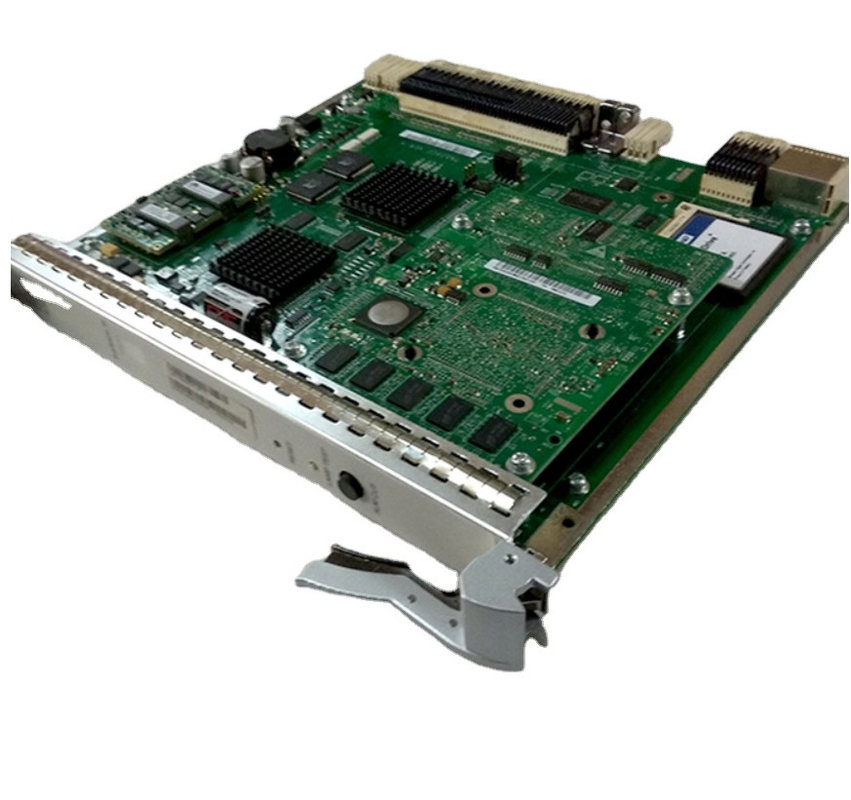

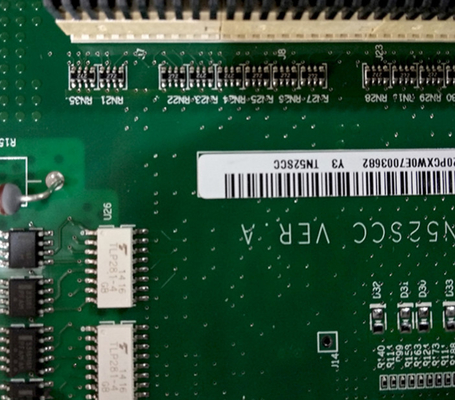

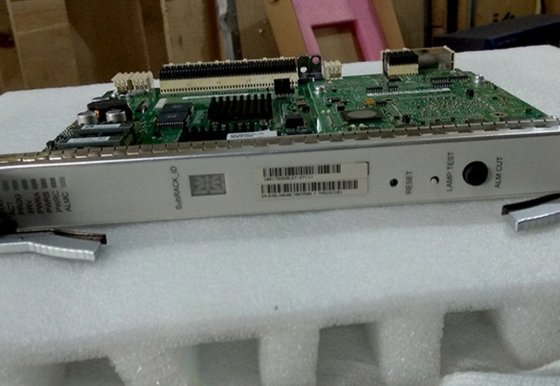

OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01

OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01
OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01 OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01 OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01

Large Image :  OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: TN52SCC01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01

Description
Model Number: TN52SCC01 Desctiption: OSN6800 SCC 030LNB TN52SCC01 System Control And Communication Board
Net Weight: 1.1kg Net Length-Width-Height: 26.2*26.5*2.6 (cm)
Condition: Used Use: FTTH
Type: Transmission Board Warranty: 1 Year
High Light:

OSN8800 GPON Optical Line Terminal

,

OSN6800 GPON Optical Line Terminal

,

OSN6800

HuaWei SCC transmission OSN6800 OSN8800 master wave division board card TN52SCC01 main control board





Descriptions

OptiX OSN 8800 is mainly used in national trunk lines, regional / provincial trunk lines and metropolitan area networks. It integrates the functions of ROADM, T-bit electrical cross, 100M-100G full-grain scheduling, , 40G / 100G transmission, rich management and protection functions, for operators to build end-to-end OTN / WDM backbone transmission solutions to achieve large-capacity scheduling and ultra-wideband intelligent transmission.

The OptiX OSN 8800 T64 / T32 / T16 can be configured as a complete OTN end-to-end network. It can also be used with the OptiX BWS 1600G, OptiX OSN 1800, OptiX OSN 9800, and with NG-SDH / PTN or Datacom Equipment, mixed network, to achieve a complete transmission solution.



Specifications



item
value
Place of Origin
China
Brand Name
HW
Model Number
SCC
System
SON6800
Part Number
030LNB
Board Type
TN52SCC01
Desctiption
OSN6800 SCC 030LNB TN52SCC01 system control and communication boa
Net Weight
1.1 (cm)
Net Length-Width-Height
26.2*26.5*2.6 (cm)
Condition
Used
Qty In Stock
3



Function and Feature Description
Basic function The SC2 board receives, processes, and transmits two optical supervisory signals. The SC2 board supports a maximum of 42 dB span transmission.
Technical features

The distance between two optical line amplifiers is not limited by the OSC. The failure of an optical line amplifier does not affect the performance of the OSC.

The SC2 board is independent of the SCC. When the SCC is not in position, the SC2 board can still ensure the pass-through of ECC with the two optical interfaces and monitor other stations.

Regeneration function The SC2 board transmits signals from section to section. It also provides the 3R function. In each regenerating station that has optical amplifiers, information can be received and new supervisory signals are added.
Operating wavelength The supervisory channel signal wavelength is 1510 nm.
Loopback Inloop Supported
Outloop Supported
Optical-layer ASON Supported

OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01 0OSN8800 GPON Optical Line Terminal Master Wave Division Board Card TN52SCC01 1





FAQ



1. what's the way to pay?

We support T/T, WESTERN UNION,Paypal



2.What's your shipping way?

Shopped by air sea express



3. What is the product used for packing?

We always use catron, Unless you have different packing needs
