Product Details:
|
| Model Number: | TN57NS4T61/NS4 | Desctiption: | OSN8800 Communication Board NS4 |
|---|---|---|---|
| Net Weight: | 1.1kg | Net Length-Width-Height: | 26.2*26.5*2.6 (cm) |
| Condition: | Used | Use: | FTTH |
| Type: | Transmission Board | Warranty: | 1 Year |
| High Light: | 100G Circuit Board,OSN8800 communication board,TN57NS4T61 |
||

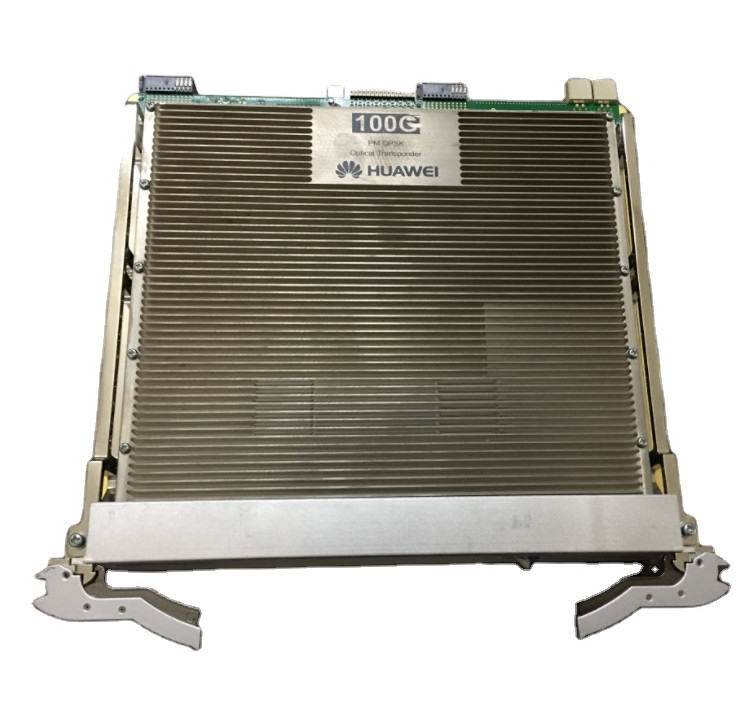

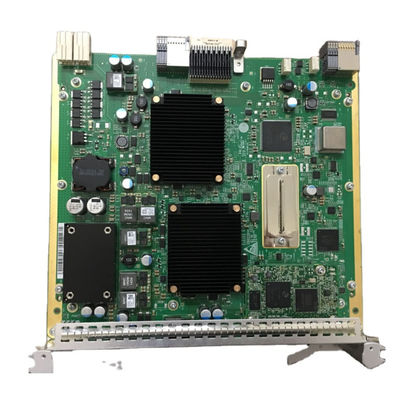

HuaWei OSN8800 100G circuit board TN57NS4T61 030YUB WDM transmission NS4
Descriptions
In the enhanced OptiX OSN 8800 T64 subrack, enhanced OptiX OSN 8800 T32 subrack, and OptiX OSN 8800 T16 subrack, the board can work either in line mode or relay mode. When the board works in line mode, the enhanced OptiX OSN 8800 T64 subrack must use the TNK2USXH+TNK2UXCT boards and the enhanced OptiX OSN 8800 T32 subrack must use the TN52UXCH/TN52UXCM board and the OptiX OSN 8800 T16 subrack must use the TN16UXCM board.
In the general OptiX OSN 8800 T64 subrack, OptiX OSN 8800 universal platform subrack and general OptiX OSN 8800 T32 subrack, the board can work only in relay mode.
In the enhanced OptiX OSN 8800 T64 subrack, enhanced OptiX OSN 8800 T32 subrack, general OptiX OSN 8800 T32, and OptiX OSN 8800 T16 subrack, the board can work either in line mode or relay mode. When the board works in line mode, the enhanced OptiX OSN 8800 T64 subrack must use the TNK2USXH+TNK2UXCT boards and the enhanced OptiX OSN 8800 T32 subrack and general OptiX OSN 8800 T32 must use the TN52UXCH/TN52UXCM board and the OptiX OSN 8800 T16 subrack must use the TN16UXCM board.
The board can work in line mode on a general OptiX OSN 8800 T32 subrack only when the OptiX OSN 8800 T32 standard subrack speedup (per subrack)license is configured.
In the general OptiX OSN 8800 T64 subrack and OptiX OSN 8800 universal platform subrack, the board can work only in relay mode.
Specifications
| Original Board | Substitute Board | Substitution Rules |
|---|---|---|
| TN54NS4 | TN56NS4/TN57NS4 |
The TN56NS4/TN57NS4 can be created as 54NS4 or 54NS4(REG) on the NMS. The former can substitute for the latter, without any software upgrade. After substitution, the TN56NS4 functions as the TN54NS4. NOTE:
TN56NS4: When both the receive and transmit boards employ SDFEC, the substitution applies. TN57NS4: When both the receive and transmit boards employ HFEC, the substitution applies. |
| TN56NS4 | None | - |
| TN57NS4 | TN58NS4 |
The TN58NS4 can be created as 57NS4 on the NMS. The former can substitute for the latter, without any software upgrade. After substitution, the TN58NS4 functions as the TN57NS4. A TN58NS4 board occupies one slot, and a TN57NS4 board occupies two slots. To use a TN58NS4 board to substitute for a TN57NS4 board, install the TN58NS4 board into the right-side slot of the two slots that the TN57NS4 board originally occupies and keep the left-side slot of them vacant. NOTE:
When both the transmit and receive boards use SDFEC2 encoding and are of the same type, they can substitute for each other. The TN57NS4 board cannot be replaced with the TN58NS4T62 and TN58NS4T50 board. |
| TN58NS4 | None | - |
FAQ
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union.
Q: Delivery time?
A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
