ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card

ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card
ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card

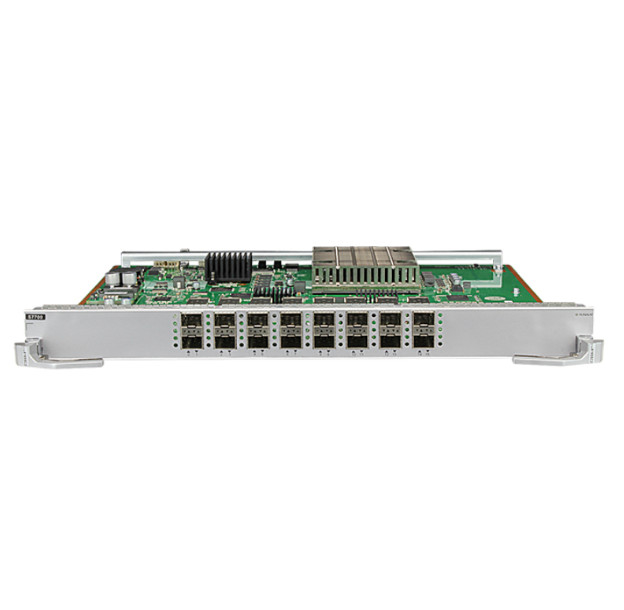

Large Image :  ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: ES1D2X16SSC2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card

Description
Model Number: ES1D2X16SSC2 Dimensions (H X W X D): 35.1 Mm X 397.2 Mm X 430.4 Mm (1.38 In. X 15.64 In. X 16.95 In.)
Weight: 2.80 Kg (6.17 Lb) Description: 16-Port 10GBASE-X Interface Card(SC,SFP+)
Memory: 4 GB (default) Flash Memory: 16 GB (maximum)
Maximum Power Consumption: 131 W Warranty: 1 Year
High Light:

ES1D2X16SSC2

,

HuaWei S7700 Card

,

10 Gigabit SFP+ Interface Card

ES1D2X16SSC2 HuaWei S7700 series switch 16-port 10 Gigabit SFP+ interface card (SC SFP+)

Version Mapping

Card Name

S7700 Chassis

ES1D2X16SSC2

S7703, S7706 and S7712 chassis: supported in V200R008C00 and later versions

S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

Introduction

The ES1D2X16SSC2 can be installed in:

  • Slots 01 to 03 in an S7703 or S7703 PoE chassis.
  • Slots 01 to 06 in an S7706 or S7706 PoE chassis.
  • Slots 01 to 12 in an S7712 chassis.

Functions

Function

Description

Basic function Provides sixteen 10GE optical ports for data transmission and switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The ES1D2X16SSC2 is hot swappable.

Specifications

Item

Description

Physical specifications
  • Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
  • Weight: 2.80 kg (6.17 lb)
  • Maximum power consumption: 131 W
Description 16-Port 10GBASE-X Interface Card(SC,SFP+)
Memory/Flash Memory 4 GB (default) / 16 GB (maximum)
Rack height 2 RU

ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card 0ES1D2X16SSC2 HuaWei S7700 Series Switch 16 Port 10 Gigabit SFP+ Interface Card 1
