Product Details:
|
Product Name: | S5720-32P-EI-AC | Maximum Power Consumption (100% Flow, Full Fan Speed): | 50.7W |
---|---|---|---|
Weight (Kg): | 4.5kg | MEMORY (RAM): | 2GB |
Product Size: | 442.0mm×237.3mm×43.6mm | Maximum Voltage Range: | AC Input: 90V AC~264V AC; 47Hz~63Hz |
PoE: | Not Supported | Warranty: | 1 Year |
High Light: | S5720-32P-EI-AC,8 Port Gigabit switch,24 Port Gigabit switch |

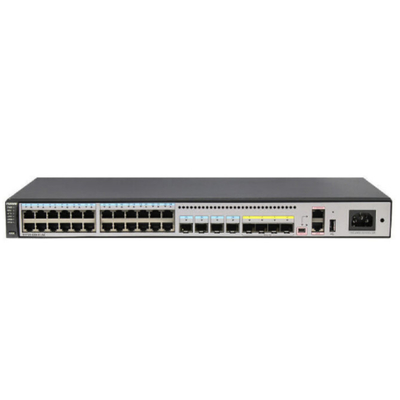

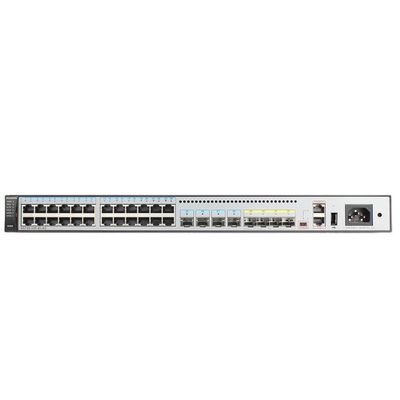

S5720-32P-EI-AC HuaWei 24-port Gigabit electric 8-port Gigabit SFP optical three-layer core switch
Device family |
Device model |
Imprint |
|
---|---|---|---|
S5720-EI | S5720-P-EI | S5720-32P-EI-AC |
V200R007C00 TO V200R019C10 VERSIONS SUPPORTED. Illustrate: V200R007C10 VERSION IS NOT SUPPORTED. |
1 | 24 X 10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACES | 2 |
4 X 100/1000BASE-X ETHERNET OPTICAL INTERFACES |
3 |
4 X 1000BASE-X ETHERNET OPTICAL INTERFACES supported modules:
|
4 | 1 Mini USB port |
5 |
1 Console interface Illustrate:
use console cables. console cables are not shipped with the device and need to be purchased separately if needed. |
6 | 1 ETH MANAGEMENT INTERFACE |
7 | 1 X USB PORT | 8 |
Ac outlet Illustrate:
use ac power cables. |
9 |
Ac terminal anti-tripping jack Illustrate:
the jack reserved for installation ac terminal anti-tripping, ac terminal anti-tripping does not ship with the device.
|
10 |
Grounding screwsI Illustrate: use the grounding cable together.
|
11 |

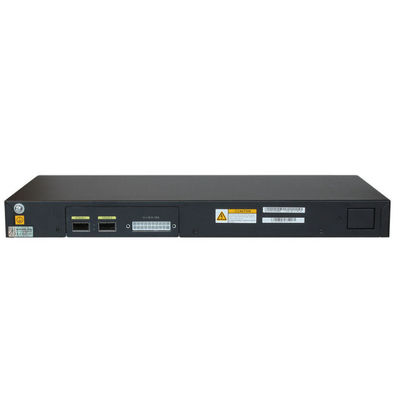

2 X QSFP+ STACKED OPTICAL INTERFACES supported modules and cables:
|
12 |
RPS POWER OUTLET Illustrate:
Use RPS cables, RPS cables do not support hot swapping. |
10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACE
Attribute |
Description |
---|---|
Connector type | RJ45 |
Complies with standards | IEEE802.3,IEEE802.3u,IEEE802.3ab |
Working mode | 10/100/1000Mbit/s adaptive |
Maximum effective distance | 100m |
100/1000BASE-X ETHERNET OPTICAL INTERFACE
Attribute |
Description |
---|---|
Connector type | LC/PC |
Optical interface properties | Determined by the selected optical module |
Complies with standards | IEEE802.3z |
Working mode | 100/1000Mbit/s adaptive |
1000BASE-X ETHERNET OPTICAL INTERFACE
Attribute |
Description |
---|---|
Connector type | LC/PC |
Optical interface properties | Determined by the selected module |
Complies with standards | IEEE802.3z |
Working mode | 1000Mbit/s |
QSFP+ STACKED OPTICAL INTERFACE
Attribute |
Description |
---|---|
Connector type | MPO |
Optical interface properties | Determined by the selected optical module |
Complies with standards | IEEE802.3ae |
Console interface
Attribute |
Description |
---|---|
Connector type | RJ45 |
Complies with standards | RS-232 |
Working mode | Duplex UART (Universal Asynchronous Receiver/Transmitter) |
Baud rate |
9600bit/s,19200bit/s,38400bit/s,57600bit/s,115200bit/s the default is 9600bit/s |
Mini USB port
The Mini USB interface is used to connect to the console for field configuration functions. When the Mini USB interface and the Console interface are used at the same time, only the Mini USB interface takes effect.
ETH MANAGEMENT INTERFACE
Attribute |
description |
---|---|
Connector type | RJ45 |
Complies with standards | IEEE802.3 |
Working mode | 10/100Mbit/s adaptive |
Maximum effective distance | 100m |
USB PORT
Note:
DUE TO THE DIFFERENCE IN THE COMPATIBILITY AND DRIVE OF THE U DISK MODEL OF DIFFERENT MANUFACTURERS, IF THE U DISK CANNOT BE USED, PLEASE TRY TO REPLACE THE U DISK OF THE MAINSTREAM MANUFACTURER, THE SWITCH SUPPORTS A U DISK WITH A CAPACITY OF NO MORE THAN 128GB.
S5720-32P-EI-AC Device INDICATOR identification and meaning is the same as S5720-32X-EI-AC, please refer to the INDICATOR Description.
The S5720-32P-EI-AC device is powered by a single built-in power supply and does not support pluggable power modules. The S5720-32P-EI-AC supports an external RPS1800 power supply to provide power backup for the device.
L: POWER SUPPLY FIREWIRE | N: POWER ZERO WIRE | PGND: PROTECTIVE GROUND | GND: 12V REFERENCE GROUND |
Specification |
Parameter |
---|---|
MEMORY (RAM) | 2GB |
Flash | The physical space is 512MB, and the actual free space can be viewed using the display version command |
MTBF (YEARS) | 80.32 |
MTTR AVERAGE REPAIR TIME (HOURS) | 2 |
usability | Greater than 0.99999 |
Service port lightning protection specifications | Common mode ± 6kV |
Lightning protection specifications of the power port | The differential mode ± 6kV and the common mode ± 6kV |
Dimensions (w× d× h) |
|
Weight (including packaging materials) | 4.5kg |
Stacking ports |
|
RTC | Backing |
RPS | Backing |
PoE | Not supported |
Rated voltage range | AC input: 100V AC~240V AC; 50/60Hz |
Maximum voltage range | AC input: 90V AC~264V AC; 47Hz~63Hz |
Maximum power consumption (100% flow, full fan speed) | 50.7W |
Typical power consumption (30% flow)
|
39.75W |
Operating temperature range |
0°C~45°C(0m~1800m altitude)
Illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. |
Storage temperature range | -40°C~+70°C |
AMBIENT NOISE (27°C, ACOUSTIC POWER) | Less than 49.3dB(A) |
Relative humidity range | 5% RH TO 95% RH, NON-CONDENSING |
Operating altitude | 0m~5000m |
Product certification |
|
