Product Details:
|
| Product Name: | LS-S2352P-EI-DC | The Product Type: | Operations-class Switches |
|---|---|---|---|
| Application Hierarchy: | Second Floor | Backplane Bandwidth: | 32Gbps |
| Transfer Rate: | 10Mbps/100Mbps/1000Mbps | Supply Voltage: | DC:-48--60V |
| Dimensions: | 442×220×43.6mm | Warranty: | 1 Year |
| High Light: | LS-S2352P-EI-DC,48 Port VLAN Switch,100M Intelligent VLAN Switch |
||

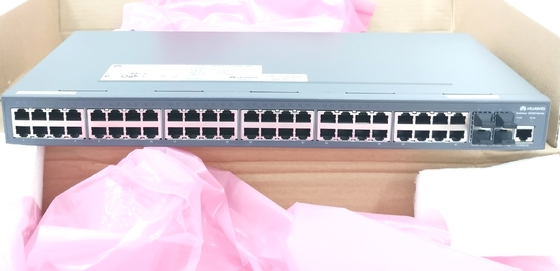

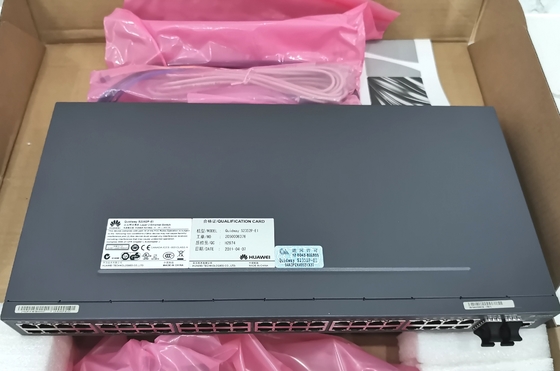

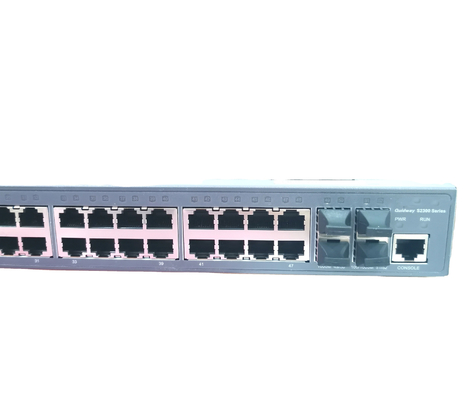

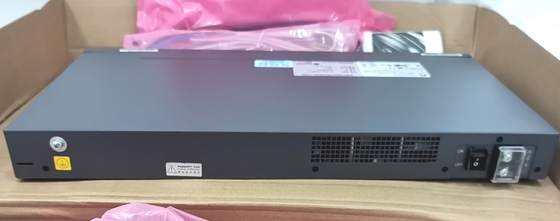

HuaWei LS-S2352P-EI-DC 48-port two-layer 100M intelligent network management VLAN switch DC power supply
Overview
Quidway® S2300 series carrier-grade access switches (hereinafter referred to as S2300) is a new generation carrier-grade Ethernet access switch launched by HuaWei to meet the needs of Ethernet multi-service carrying requirements for boutique metropolitan area networks and enterprise networks. Ethernet access scenario. Based on a new generation of high-performance hardware and Huawei's unified VRP® (Versatile Routing Platform) software, the S2300 can provide users with rich and flexible business features, effectively improve product operability, manageability, and business expansion capabilities, and has excellent lightning protection Capability and security features, support powerful ACL function, support QINQ, support 1:1 and N:1 VLAN switching function, to meet the needs of flexible VLAN deployment.
Specifications
| Basic parameters | |
|---|---|
| Product model |
Quidway S2352P-EI(DC)
|
| The product type |
Operations-class switches
|
| Application hierarchy |
Second floor
|
| Backplane bandwidth |
32Gbps
|
| Transmission mode |
Store-and-forward mode
|
| hardware parameters | |
|---|---|
| The number of interfaces |
Mouth 48
|
| Transfer rate |
10Mbps/100Mbps/1000Mbps
|
| Expansion slots |
4
|
| Networking & software | |
|---|---|
| Network standards |
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1Q
|
| VLAN SUPPORT |
SUPPORTSALAN FUNCTION
|
| Duplex transmission |
Full-duplex/half-duplex adaptive
|
| MAC ADDRESS TABLE |
8k
|
| Other performance |
Storage height: 6000m; Working height: 3000m; Rated power: <14.5W
|
| Other parameters | |
|---|---|
| Supply voltage |
DC:-48--60V
|
| Dimensions |
442×220×43.6mm
|
| Weight |
<3Kg
|
