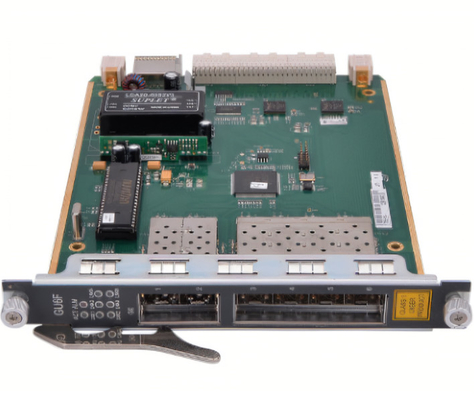

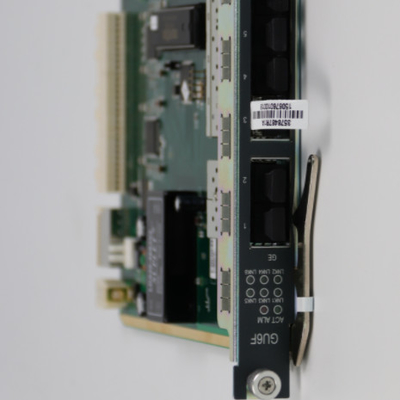

Fiberhome GU6F 6-Port GE Uplink Disk For AN5506 OLT Equipment Business Board

Fiberhome GU6F 6-port GE uplink disk for AN5506 OLT equipment business board

Overview

6-port GE uplink disk GU6F OLT equipment

AN5516 series of carrier-grade 10 Gigabit platform PON central office equipment adopts industry-leading technology, full front board, front outlet design, provides high-density xPON port panel, supports GE/10GE/STM-1/E1 uplink interface, and can realize GPON /EPON/10G PON/P2P hybrid insertion, continuous evolution, effective protection of network construction investment; using high-performance chips, green and energy-saving, improve network reliability, and reduce operation and maintenance costs.

Scope of application

* As an FTTx access device, the AN5516-01 device can use a single optical fiber as the medium to converge multiple service streams on the user side, such as voice, data, and video, and access it through a gigabit or 10 gigabit uplink interface. Broadband metropolitan area network; AN5516-01 equipment can also input and output clock signals through a variety of clock interfaces to establish a clock synchronization information transmission network;

* Super access capability Provide 10 Gigabit high-speed uplink boards: 1*10GE+ 4*GE, 2*10GE+ 2*GE, 6*GE (optical and electrical optional)

1: 32/64/128 optical split ratio, support ultra-long transmission distance, support CLASS C+ optical module Standard 19-inch structure supports 16 business slots

* Support hot swap of all boards and PON optical modules

* End-to-end protection: uplink port dual-homing/RSTP/LACP protection, PON port TYPE B/C protection

* Full service access

* Support IEEE 1588V2 protocol, support 1PPS+TOD clock input

* EPON/GPON/10G PON/P2P common platform, supporting smooth evolution of FTTX * green technology

* 8-speed temperature-controlled smart fan, support idle port sleep, deep energy saving

* Technical advantages In addition to providing access to the fixed network, the AN5516-01 device can also be used as a mobile base station's bearer equipment to realize the IP-based mobile bearer network.
