HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M

HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M
HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M

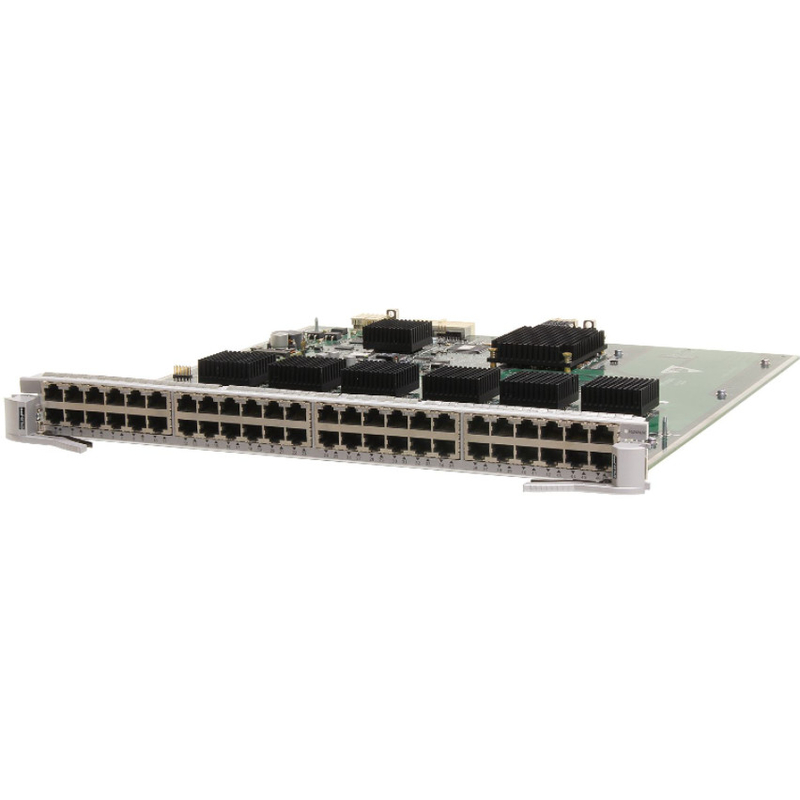

Large Image :  HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: LE0MF48TC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M

Description
Model Number: LE0MF48TC Dimensions (w×d× H): 397.2mm*430.4mm*35.1mm
Weight: 2.66kg MAXIMUM POWER CONSUMPTION: 70W
Connector Type: RJ45 Interface: 48 X 10M/100M BASE-T ELECTRICAL INTERFACES
Complies With Standards: IEEE 802.3 Warranty: 1 Year
High Light:

HuaWei S9300 Series Service Board

,

LE0MF48TC Service Board

,

LE0MF48TC

HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M



HuaWei S9300 series service board LE0MF48TC 48-port 10M/100M Ethernet electrical interface board (EC RJ45)



Software companionship

Veneer name

S9300X FRAME

LE0MF48TC

S9310X CHASSIS: V200R010C00 AND LATER SUPPORTED

S9300X-4 FRAME, S9300X-8 FRAME, S9300X-12 FRAME: NOT SUPPORTED

Veneer overview

The LE0MF48TC can be installed in:

  • SLOT 01 TO 10 OF THE S9310X FRAME.

HuaWei S9300 Series Service Board LE0MF48TC 48 Port 10M 100M 0

E0MF48TC functions and features

Function

Description

Basic functionality PROVIDES DATA ACCESS AND SWITCHING FOR 48 FE PORTS
Distributed forwarding Data is forwarded in parallel through a distributed data plane.
Hot-swappable Backing

Leds and interface descriptions

LE0MF48TC panel LEDs
HW S9300 series service board LE0MF48TC 48-port 10M/100M Ethernet electrical interface board (EC RJ45)
LE0MF48TC Panel LED Descriptions

Numeric number

Light

Color

Meaning

1 UPPER ELECTRICAL INTERFACE LINK/ACT LIGHT Green

Solid: indicates that the corresponding interface link has been connected.

blinking: indicates that the corresponding interface has data sending and receiving.

2 LOWER ELECTRICAL INTERFACE LINK/ACT LIGHT
3 RUN/ALM: OPERATIONAL STATUS LED Green

SOLID: INDICATES THAT THE BOARD IS POWERED ON. SOLID FOR THE FIRST 30 SECONDS INDICATES THAT THE CPU IS BOOTING; IF IT IS STILL ON AFTER 30 SECONDS, THE SOFTWARE IS NOT RUNNING.

Slow flash: indicates that the system of the board is in a normal operating state.

flash: indicates that the system of the board is booting.

Red Solid: indicates that the veneer is malfunctioning and requires manual intervention.
Yellow Solid: indicates that the board is in a power-down state (such as executing the power off command to force power down, the board is in the pre-startup stage).
Interface of the LE0MF48TC panel


HW S9300 series service board LE0MF48TC 48-port 10M/100M Ethernet electrical interface board (EC RJ45)

1 48 X 10M/100M BASE-T ELECTRICAL INTERFACES

10M/100M BASE-T ELECTRICAL INTERFACE

Attribute

Description

Connector type RJ45
Complies with standards IEEE 802.3
Support frame formats Ethernet_II,Ethernet_SAP,Ethernet_SNAP
Supports network protocols IP

SPECIFICATIONS FOR LE0MF48TC

Parameter items

Description

Physical parameters
  • Dimensions (w×d× h): 397.2mm×430.4mm×35.1mm
  • Weight: 2.66kg
  • MAXIMUM POWER CONSUMPTION: 70W
