Product Details:
|
| Product Name: | CE6870-48T6CQ-E | Forwarding Performance: | 96 Mpps |
|---|---|---|---|
| Switching Capacity2: | 128 Gbps/672 Gbps | Fixed Ports: | 24 X 10/100/1000Base-T Ethernet Ports, 4 X 10 Gig SFP+ |
| PoE+: | Not Supported | MAC Entries: | 32K |
| VXLAN: | L2 And L3 Gateways | Warranty: | 1Year |
| High Light: | CE6870 48T6CQ E Fiber Core Switch,Fiber Core Switch,CE6870 48T6CQ E HuaWei Switch |
||

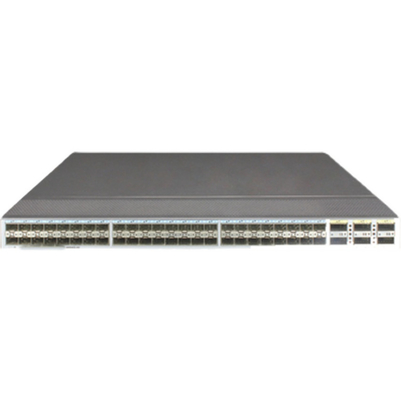

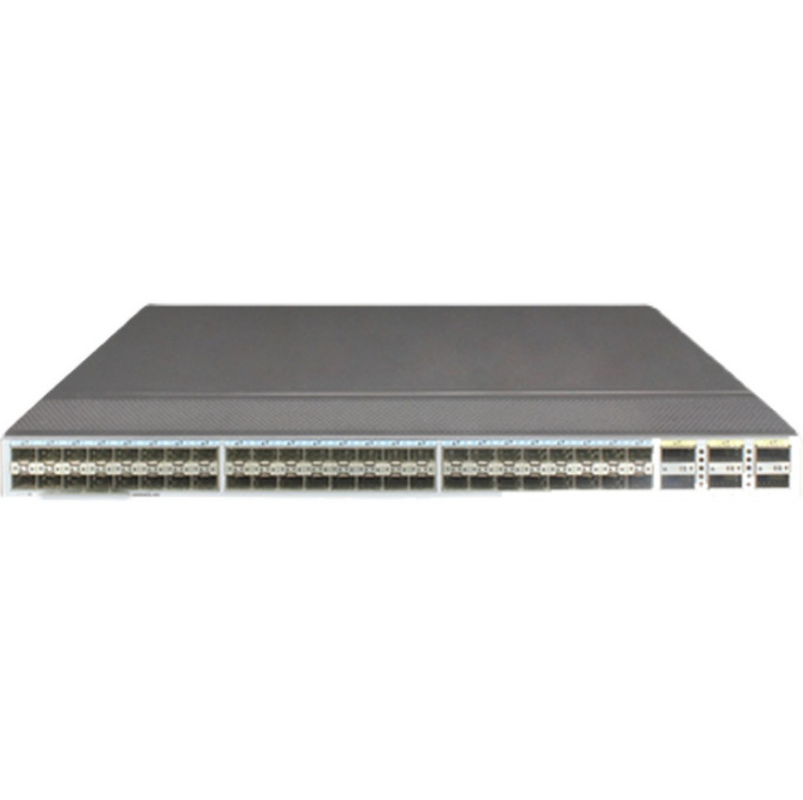

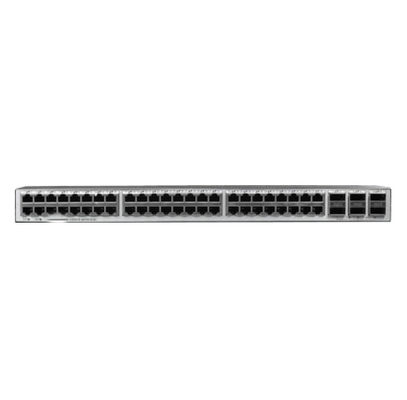

HuaWei CE6870 48T6CQ E Fiber Core Switch Electricity 100000 Gigabit
HuaWei CE6870-48T6CQ-E data center 480000 gigabit electricity+6 100000 gigabit optical core switches
Version Mapping
|
Device Series |
Sub-series |
Device Model |
Short Name |
Supported Version |
|---|---|---|---|---|
| CE6800 | CE6870 | CE6870-48T6CQ-EI | CE6870EI |
V200R002C50 to V200R019C10 NOTE:
This model is not supported in V200R005C20. |
The DDR of the CE6870-48T6CQ-EI has been optimized and upgraded since March 1, 2020. The switches that are manufactured on and after March 1, 2020 can only run V200R019C10SPC800 after the corresponding patch is load, as well as running V200R020C10 or later versions. (The year and month when the switches are manufactured can be determined based on the SN.)
The product SN consists of 20 characters.
Slot
Power supply slot
The CloudEngine 8800, 7800, 6800, and 5800 series switches (except the CE8850-64CQ-EI) have two power supply slots, in which power modules can be installed to provide power to the chassis. A chassis can have one or two power modules. Double power modules can provide higher reliability.
Fan slot
The CloudEngine 8800, 7800, 6800, and 5800 series switches (except the CE8850-64CQ-EI, CE6863-48S6CQ, CE6881-48S6CQ, CE6820-48S6CQ, CE6863-48S6CQ-K, CE6881-48S6CQ-K, CE6881E-48S6CQ and CE6857-48S6CQ-EI) have two fan slots, in which fan modules can be installed to cool the chassis, ensuring efficient heat dissipation and system stability. A chassis must have two working fan modules to ensure normal operating.
All fan modules are hot swappable.
10GBASE-T Ethernet Electrical Port
|
Attribute |
Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3an and IEEE802.3az |
| Applicable cable | Straight-through cable and crossover cable |
| Working mode |
Supported rate: 100/1000 Mbit/s and 10 Gbit/s auto-sensing Full-duplex |
| Maximum transmission distance | 100 m |
40GE/100GE QSFP28 Optical Port
|
Attribute |
Description |
|---|---|
| Connector type | Depending on the optical module |
| Optical attributes | Depending on the module or cable in use |
| Standards compliance | IEEE802.3ba |
| Working mode | Full-duplex |
Console Port
|
Attribute |
Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | RS232 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Baud rate |
9600 bit/s to 115200 bit/s Default value: 9600 bit/s |
ETH Management Port (RJ45)
|
Attribute |
Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3ab |
| Working mode |
Supported rate: 10/100/1000 Mbit/s auto-sensing Full-duplex |
| Maximum transmission distance | 100 m |
USB Port
A USB flash drive can be connected to the USB port for log backup, system software backup and uploading, or USB-based deployment.
|
Item |
Description |
|
|---|---|---|
| Physical specifications |
|
|
| Environment parameters | Temperature |
|
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) |
|
|
| Power specifications | Power source type | AC |
| AC power input |
|
|
| DC power input |
|
|
| High-voltage DC power input | Not supported | |
| Rated input current |
|
|
| Chassis power consumption | Maximum power consumption | 405 W |
| Typical power consumption | 280 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 1382 BTU/hr |
| Typical heat dissipation | 955 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Surge protection |
Power module:
|
|
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability | Power module backup | 1+1 backup |
| Fan module backup |
1+1 backup not supported NOTE:
A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode. |
|
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 44.44 years | |
| Mean time to repair (MTTR) | 1.76 hours | |
| Availability | 0.99999548998 | |
| Technical specifications | Processor | 1.5 GHz, eight-core |
| DRAM Memory | 4 GB | |
| NOR Flash | 32 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | 10GE electrical ports and 100GE optical ports |
