Product Details:
|
| Model Number: | ES0D0X2UXC00 | Connector Type: | XFP |
|---|---|---|---|
| Complies With Standards: | IEEE 802.3ae | Support Frame Formats: | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| AXIMUM POWER CONSUMPTION: | 61W | Dimensions (w×d× H): | 397.2mm×430.4mm×35.1mm |
| Weight: | 2.26kg | Warranty: | 1 Year |
| High Light: | ES0D0X2UXC00 GPON Optical Line Terminal,XFP Optical Interface Board,ES0D0X2UXC00 Optical Interface Board |
||

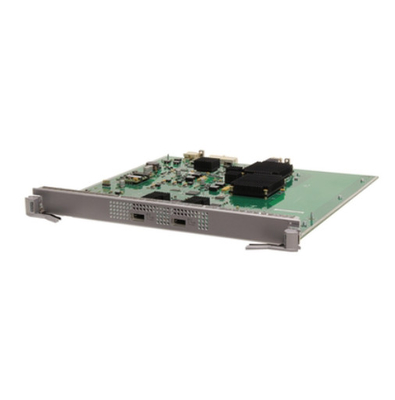

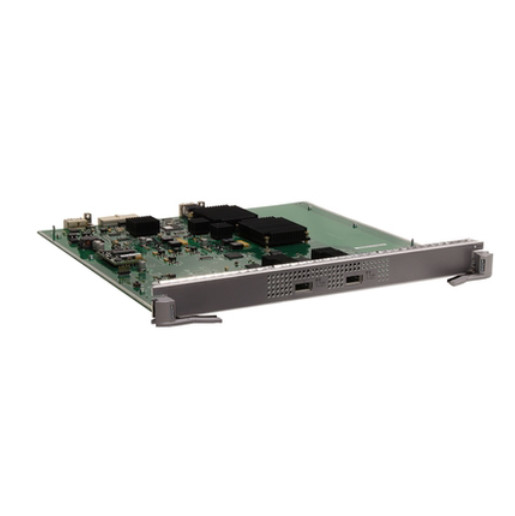

ES0D0X2UXC00 GPON Optical Line Terminal XFP Optical Interface Board
ES0D0X2UXC00 HuaWei S7700 series 2-port 10 Gigabit Ethernet XFP optical interface board EC
Software companionship
Matching relationship between veneer and frame and product version
|
Veneer name |
S7700 FRAME |
|---|---|
| ES0D0X2UXC00 |
S7703 FRAME, S7706 FRAME, S7712 FRAME: V100R003C01 AND LATER VERSIONS ARE SUPPORTED S7703 PoE Frame, S7706 PoE Frame: V200R013C00 and later versions supported S7710 CHASSIS: V200R010C00 AND LATER SUPPORTED |
The ES0D0X2UXC00 can be installed in:
|
Function |
Description |
|---|---|
| Basic functionality | PROVIDES DATA ACCESS AND EXCHANGE OF TWO 10GE OPTICAL PORTS |
| Distributed forwarding | Data is forwarded in parallel through a distributed data plane |
| Hot-swappable | Backing |
IT IS NOT SUPPORTED FOR USE WITH SRUHX1 OR SRUHX1K SERIES CONTROL BOARDS.
|
Numeric number |
Light |
Color |
Meaning |
|---|---|---|---|
| 1 | ACT LIGHTS | Yellow | Blinking: indicates that the corresponding interface has data sending and receiving. |
| 2 | LINK LIGHT | Green | Solid: indicates that the corresponding interface link has been connected. |
| 3 | RUN/ALM: OPERATIONAL STATUS LED | Green |
SOLID: INDICATES THAT THE BOARD IS POWERED ON. SOLID FOR THE FIRST 30 SECONDS INDICATES THAT THE CPU IS BOOTING; IF IT IS STILL ON AFTER 30 SECONDS, THE SOFTWARE IS NOT RUNNING. Slow flash: indicates that the system of the board is in a normal operating state. flash: indicates that the system of the board is booting. |
| Red | Solid: indicates that the veneer is malfunctioning and requires manual intervention. | ||
| Yellow | Solid: indicates that the board is in a power-down state (such as executing the power off command to force power down, the board is in the pre-startup stage). |
| 1 | 2 X 10GBASE XFP OPTICAL INTERFACES |
10GBASE XFP OPTICAL INTERFACE
|
Attribute |
Description |
|---|---|
| Connector type | XFP |
| Optical interface properties |
DETERMINED BY THE SELECTED XFP OPTICAL MODULE. For more information about the optical modules supported by the ES0D0X2UXC00 and their properties, see 10GE XFP package optical modules, 10GE-CWDM XFP package color optical modules, and10GE-DWDM XFP package color optical modules. |
| Complies with standards | IEEE 802.3ae |
| Support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| Supports network protocols | IP |
|
Parameter items |
Description |
|---|---|
| Physical parameters |
|
