Overviews
Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

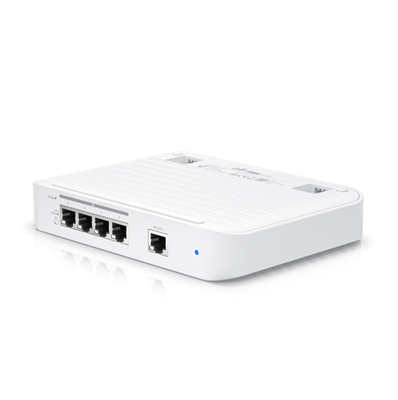

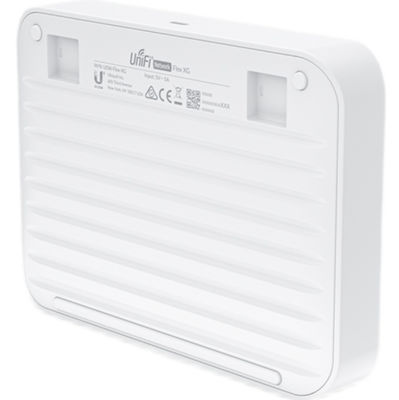

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
-
- (1) GbE, 802.3at PoE+ RJ45 input
- (4) 10GbE RJ45 ports
- Compact, slim housing
- Can be powered with a 5V, 5A USB-C adapter
Specifications
Mechanical | |
---|---|
Dimensions | 135 x 185 x 32 mm (5.31 x 7.28 x 1.27") |
Weight | 1.2 kg (2.65 lb) |
Enclosure Material | Polycarbonate |
Hardware | |
Total Non-Blocking Throughput | 41 Gbps |
Switching Capacity | 82 Gbps |
Forwarding Rate | 61.012 Mpps |
Max Power Consumption | 25W |
Power Method | (1) 802.3at PoE, 50-57VDC, 25W (1) USB Type-C, 5VDC, 5A |
Power Supply | 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included) |
Supported Voltage Range | 90 to 264VAC (Adapter) |
Management Interface | Ethernet In-Band |
Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet |
Services | SMB Layer 2 Gigabit Ethernet Switch |
ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
Button | Factory Reset |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 10 - 90% Noncondensing |
Certifications | CE, FCC, IC |
LEDs | |
System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
Ethernet | White: Link or Activity |
