Product Details:
|
| Model Number: | TNF1DSFIU01 | Type: | Optical Fiber Transmission Business Board |
|---|---|---|---|
| Capacity: | 700 Gbit/s | Line Rate: | 2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s |
| Maximum Number Of CWDM: | 8 Wavelengths | Dimension(D*W*H Mm): | 221 Mm X 442 Mm X 224 Mm |
| Max Capacity: | 700Gbit/s | Warranty: | 1 Year |
| High Light: | HuaWei OSN1800V Wavelength Division Board,700Gbit/s Wavelength Division Board,CCC Bidirectional Optical Line Board |
||

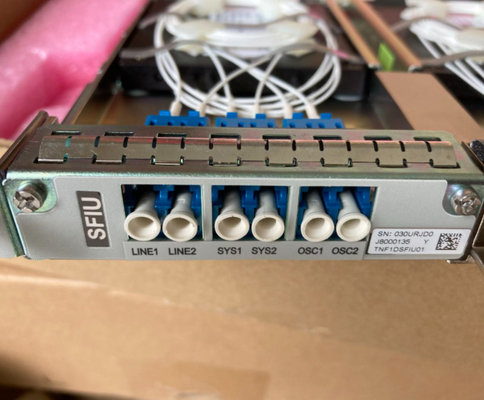

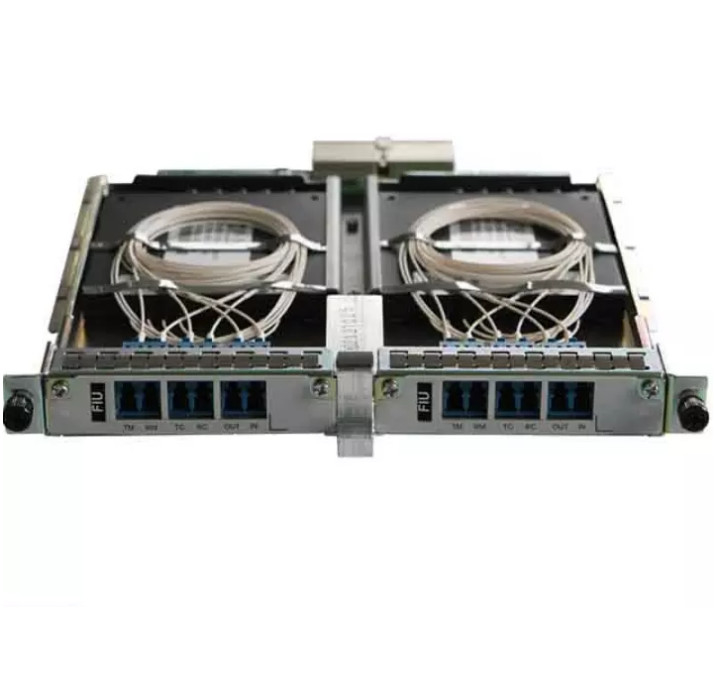

HuaWei OSN1800V Wavelength Division Board TNF1DSFIU01 Bidirectional Optical Line Interface Board
MS-OTN compliance and compact design (5U-high), supporting the access of any-rate services
Environmentally friendly, power saving, and easy to deploy and maintain
Distinguished architecture, providing high reliability and secure data transport
Specifications
| Dimensions (H x W x D) | 221 mm x 442 mm x 224 mm | |
| Number of slots for service boards |
|
|
| Optical switching capability | 1 to 9-degree reconfigurable optical add/drop multiplexer (ROADM) | |
| Product capacity | OTN | 700 Gbit/s ODUk (k = 0, 1, 2, 2e, flex or 4) |
| Packet service | 700 Gbit/s | |
| TDM | Higher order: 280 Gbit/s; lower order: 20 Gbit/s | |
| Maximum number of wavelengths | DWDM | 80 wavelengths |
| CWDM | 8 wavelengths | |
| Wavelength range |
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (S+C+L Band, ITU-T G.694.2) |
|
| Maximum rate per channel | 100 Gbit/s | |
| Service types | SDH service, PDH service, OTN service, Ethernet service, CPRI service, OBSAI service, SAN service, video service, and others | |
| Line rate | 2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s | |
| Pluggable optical/electrical module |
|
|
| Topology | Point-to-point, chain, star, ring, ring-with-chain, intersecting rings, and tangent rings | |
| Applications | Pure packet networks, pure OTN networks, pure TDM networks, MS-OTN networks (OTN+Packet+TDM), hybrid networks (Packet+TDM), OTN+Packet networks, and OTN+TDM networks | |
| Redundancy and Protection | Network level protection (OTN) | Client 1+1 protection, intra-board 1+1 protection, ODUk SNCP, and optical line protection, tributary SNCP, LPT |
| Network level protection (packet) | MPLS-TP 1:1 tunnel APS, MPLS-TP 1:1 PW APS, MC-LAG, LPT, LAG, ERPS, MRPS | |
| Network level protection (TDM) |
|
|
| Equipment level protection |
|
|
| Optical power management | ALS, AGC | |
| Maintenance | MPLS-TP OAM | Supports CC, RDI, AIS, LB, LT, one-way LM, two-way DM, LCK, TST, and CSF. |
| ETH OAM (packet) |
|
|
| ETH OAM (TDM) |
|
|
| Port mirroring (TDM) | Supports port mirroring that enables service analysis and fault diagnosis without affecting services.
|
|
| Port mirroring (packet) | Supports port mirroring that enables service analysis and fault diagnosis without affecting services.
|
|
| Port traffic mirroring (packet) | Supports port traffic mirroring that enables service analysis and fault diagnosis without affecting services.
|
|
| Synchronization | OTN |
|
| Packet |
|
|
| TDM |
|
|
