Product Details:
Place of Origin: Guangdong, China
Brand Name: ZTE
Certification: FCC,CCC,CE
Model Number: F663NV3a
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Package
Supply Ability: 100 Pack/Packs per Week

FTTH Modem GPON ONU ONT 1GE 3FE LAN ZTE F663NV3a 8W

Description
Type: GPON ONU Product Name: F663NV3a
Power Supply: 12V LAN: 1*10/100/1000Mbps Adaptive Ethernet Ports, Full/half Duplex, RJ45 Interface
Wavelength: Tx 1310nm, Rx 1490nm Weight: ≤0.6Kg
Power: ≤8W Dimension: 250*220*65mm(length*width*height)
High Light:

FTTH Modem GPON ONU ONT

,

8W GPON ONU ONT

,

3FE LAN ONU Equipment

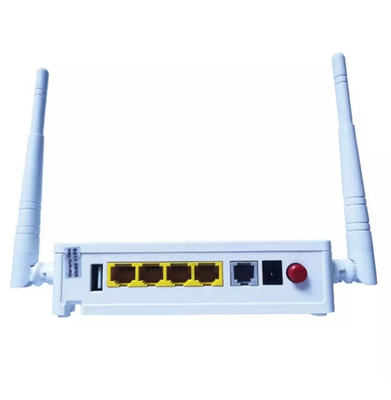

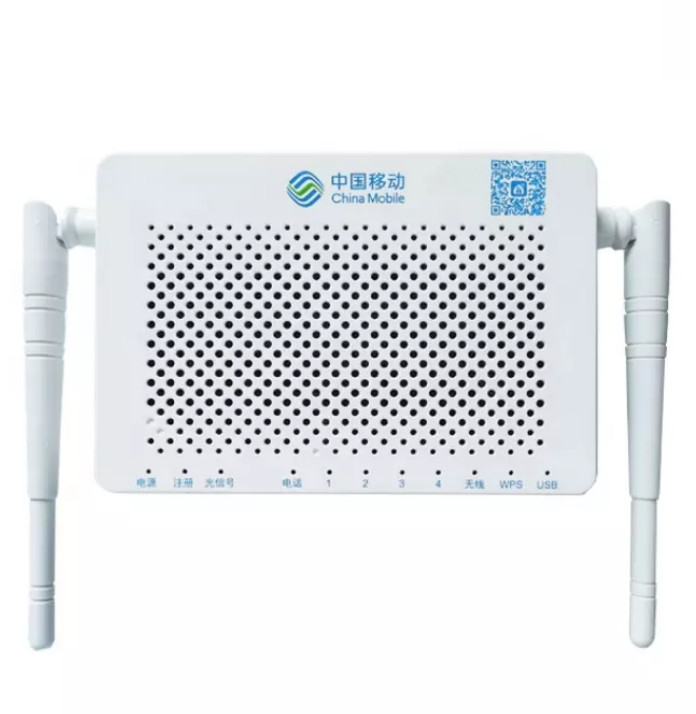

ZTE F663NV3a GPON ONU ONT FTTH Modem 1GE+3FE LAN+1Voice+2.4G WIFI



Products Description

ZTE gpon ont F663NV3A GPON ONT series equipments are manufactured and developed by zte company, which is a leader in FTTH/FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.
ZTE GPON ONU F663NV3A with 1GE+3FEports+1*phone port+wifi, with 2 antennas high gain wireless function .
The F663NV3A, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The F663NV3A features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
The F663NV3A Provide English firmware and EU, US, UK, AU Power adapter for your choice.



Product Details

GPON Interface: 1 *GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244bps upstream
LAN: 1GE+3FE with RJ-45 connector
WIFI :2.4G wirless external antenna
VOIP: 1
USB: 1



Product Paramenters

Technical items
Descriptions
Fiber port
1 GPON interface, 1GE+3FE+1POT+1USB+WIFI,SC single-mode,
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength
Tx 1310nm, Rx 1490nm
Fiber interface
SC/UPC
RX sensitivity
<-27dBm (1490nm)
WLAN
IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI,external antenna
LAN
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
ONT Detection and Isolation of Active/Passive Hooligans
YES
L2 forwarding capability
Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method
NMS, Web, or TR069
Voice protocol
SIP, H.248
DC power
Adapter input: 100-240 V AC, 50 - 60 Hz ;
Adapter output: 11 – 14 V DC, 1 A
Button
Reset, power
Power
≤8W
Operation
Working temperature: -0-+40℃
working humidity:5-95%(non-condensation)
Dimension
250*220*65mm(length*width*height)
Net weight
≤0.6Kg



Product Features

The highly reliable heat dissipation design guarantees its stable operation.
The full-service access capability featuring high bandwidth, high performance, high reliability, and easy operation, administration and maintenance (OMCI/TR-069) meets the continuously changing requirements of the customer, protects the legacy investment, and enhances the value of the operator’s network.
The dual image ensures uninterrupted services during software downloading or upgrading, thereby enhancing software reliability
The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the Phone interfaces, and 1.5 kV for the Ethernet ports.
