Product Details:
|
| Model Number: | EWP-WX2510H-PWR | Form Factor (wide× Deep × High): | 220mm*146mm*28mm |
|---|---|---|---|
| Weight: | 0.95kg | Throughput: | 1.6Gbps |
| Interface: | WAN 1*GE + LAN 4*GE(PoE+) + 1*USB | Power Supply: | 90W Power Adapter, 220V AC Input, 52.5V DC Input |
| Operating/storing Ambient Temperature: | 0°C~45°C/-40°C~70°C | Warranty: | 1 Year |
| High Light: | 1.6Gbps Wireless Network Controller,H3C Wireless Network Controller,Management 16AP POE Power Supply |
||

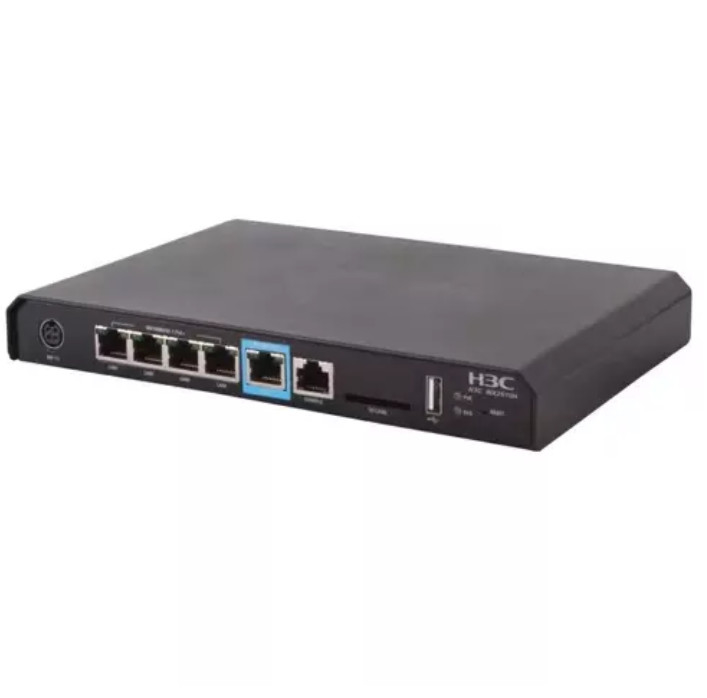

H3C EWP-WX2510H-PWR Wireless AP main network controller AC 4 port Gigabit POE power supply Maximum management 16AP
Overviews
WX2510H-PWR new generation enterprise-level core multi-service wireless controller, supporting routing VPN and POE power supply (including 8AP authorization)
Provides management of 802.11ac APs. While managing traditional 802.11a/b/g/n/ac APs, WX2510H wireless controller can also cooperate with H3C APs based on 802.11ac wave2 protocol in networking, which improves high-density users Experience.
| Project | WX2510H | WX2540H | WX2560H |
| Form factor (wide× deep × high) | 220mm*146mm*28mm | 220mm*145mm*22mm | 330 mm *230 mm *43.6 mm |
| Full weight | 0.95kg | 0.9kg | 1.9kg |
| throughput | 1.6Gbps | 1.6Gbps | 2Gbps |
| interface | WAN 1*GE + LAN 4*GE(PoE+) + 1*USB | WAN 1*GE + 1* SFP + LAN 4*GE + 2*USB | WAN 2*GE + LAN 4*GE + LAN 2*GE Combo + 1*USB + 1*SD Card slot |
| Power supply | 90W power adapter, 220V AC input, 52.5V DC input | 24W power adapter, 220V AC input, 12V DC input | 36W power adapter, 220V AC input, 12V DC input |
| Operating/storing ambient temperature | 0°C~45°C/-40°C~70°C | ||
| Relative humidity in working/storage environment (non-condensation) | 5%~95% | ||
| Safety specifications |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
||
| EMC |
ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
||
| MTBF | ≥ 154 | ||
FAQ
1. How do you control the quality?
A: All products are tested for simulated usage scenarios, load, full load, and current sharing before shipment to ensure product quality.
2. What is your minimum order quantity?
A: There is no minimum order quantity, you can also make one. The only difference is the price and schedule.
3. Can you introduce your company?
A: I am honored. I will send you the company's introduction document later, so that you can introduce our company's information more comprehensively and directly.
4. What are the advantages of your company?
A: Sufficient inventory, to provide guarantee for subsequent update and replenishment, flexibly provide according to the different needs of different customers, and provide different solutions.
5. Can I send samples? Do you report it to me along with the price?
A: You can send samples, and the samples are subject to large size, and you need to bear the freight.
6. How does your company deal with quality issues?
A: Our company has been in this industry for more than 10 years.
Already have a certain degree of popularity. We will analyze it carefully. If it is really our quality problem, you can rest assured that it will act in accordance with the contract and will never give you any worries.
