Product Details:
|
| Model Number: | LSS7C06HX6S0 | Connector Type: | QSFP28 |
|---|---|---|---|
| Dimensions (w×d× H): | 397.2mm×430.4mm×35.1mm | Weight: | 3.55kg |
| MAXIMUM POWER CONSUMPTION: | 189W | QSFP28 High Speed Cable: | 1m, 3m |
| Hot-swappable: | Backing | Warranty: | 1 Year |
| High Light: | 100GE Optical Interface Board,189W Optical Interface Board,PoE Frame OLT Optical Board |
||

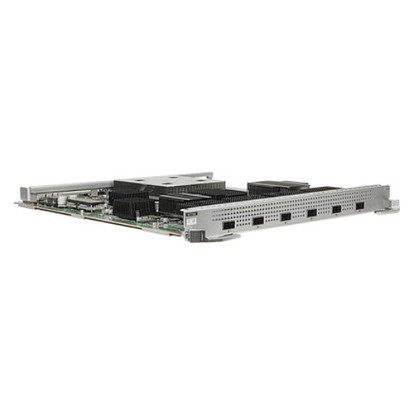

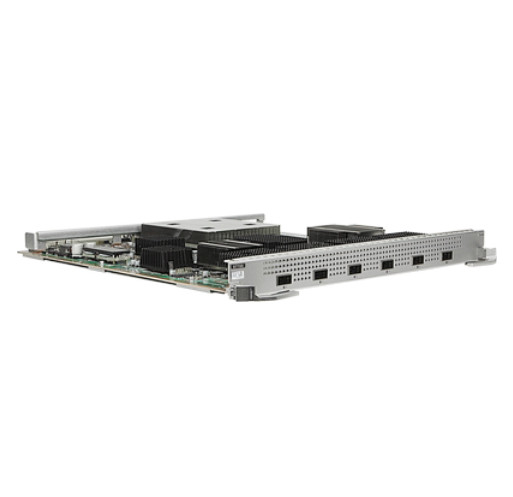

LSS7C06HX6S0 HuaWei 7700 series 6-port 100GE optical interface board (X6S QSFP28)
|
Veneer name |
S7700 FRAME |
|---|---|
| LSS7C06HX6S0 |
S7703 CHASSIS: V200R013C02 AND LATER SUPPORTED S7703 PoE Frame, S7706 Frame, S7706 PoE Frame, S7710 Frame, S7712 Frame: V200R019C00 and later versions supported Illustrate:
Newly processed veneers from june 2021:
|
The LSS7C06HX6S0 can be installed in:
|
Function |
Description |
|---|---|
| Basic functionality | Provides data access and switching of six 100GE Ethernet optical interfaces |
| Distributed forwarding | Data is forwarded in parallel through a distributed data plane |
| Hot-swappable | Backing |
100GE OPTICAL INTERFACE
|
Attribute |
Description |
|---|---|
| Connector type | QSFP28 |
| Optical interface properties | This is determined by the selected QSFP28 - QSFP28 high speed cable (1m, 3m), 40GE QSFP+ packaged optical transceiver, 100GE QSFP28 packaged optical transceiver, QSFP+ or QSFP28 optical cable. |
| Use cable specifications |
QSFP+ PACKAGED OPTICAL MODULE + LC FIBER QSFP+ PACKAGED OPTICAL MODULE + MPO FIBER (INCLUDING MPO-MPO FIBER AND MPO-4*DLC FIBER) QSFP+ package AOC optical cable (including QSFP+<->QSFP+ and QSFP+<->4*SFP+) QSFP28 ENCAPSULATED OPTICAL MODULE + LC FIBER QSFP28 ENCAPSULATED OPTICAL MODULE + MPO FIBER (MPO-MPO FIBER AND MPO-4*DLC FIBER) QSFP28 High Speed Cable (1m, 3m) (only supported as a cluster cable) THE QSFP28 ENCAPSULATES AOC OPTICAL CABLES |
|
Parameter items |
Description |
|---|---|
| Physical parameters |
|
