21.2W Wireless Network Access Point DC12V CCC AP Smart Antenna

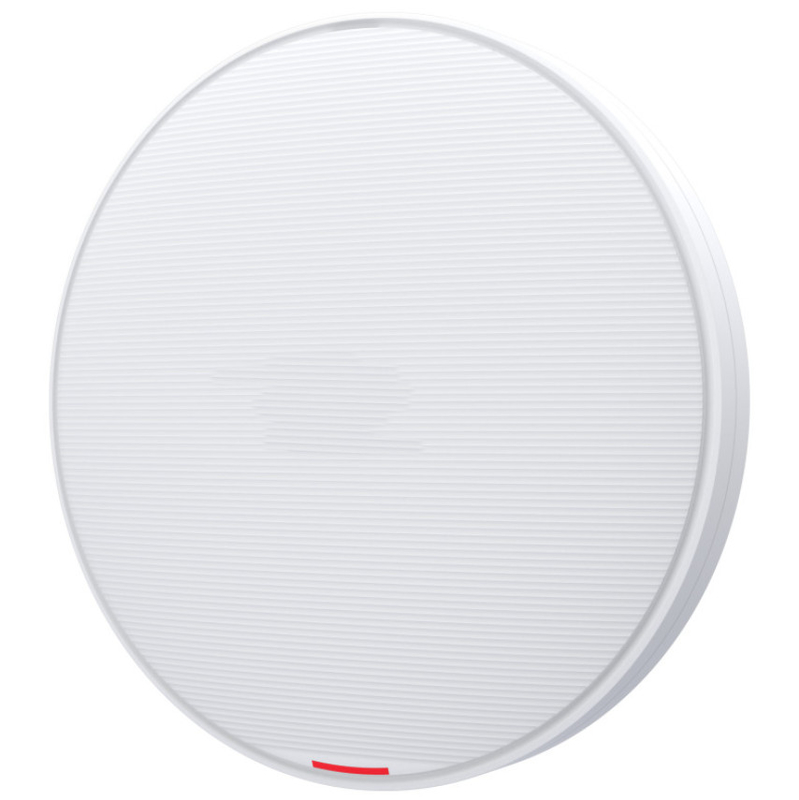

Large Image : 21.2W Wireless Network Access Point DC12V CCC AP Smart Antenna

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HuaWei
Certification:	FCC,CCC,CE
Model Number:	AirEngine6761S-21T

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable

Contact Now

21.2W Wireless Network Access Point DC12V CCC AP Smart Antenna

Description

Model Number:	AirEngine6761S-21T	Dimensions (diameter× Height):	220 X 50mm
Power Input:	DC12V± 10% PoE Power Supply: Meets The 802.3at Power Over Ethernet Standard	Maximum Power Consumption:	21.2W (excluding USB)
Maximum Number Of Users:	≤1536	MIMO: SPATIAL STREAM:	2.4GHz: 2×2:2,5GHz: 2×2:2,5GHz:4×4:4
Maximum Rate:	6.575Gbps	Warranty:	1 Year
High Light:	21.2W Wireless Network Access Point , DC12V Wireless Network Access Point , CCC AP Smart Antenna

AirEngine6761S-21T HuaWei WIFI6 High Density Ceiling Wireless Network Access Point AP Smart Antenna

AirEngine 6761S-21T Access Point Overview

AirEngine 6761S-21T is a wireless access point product released by HuaWei for the SMB market that supports the Wi-Fi 6 (802.11ax) standard. The built-in smart antenna adopts a three-radio design, and the speed of the whole machine can reach 6.575Gbps, which is suitable for crowded scenarios such as mobile office, education, and supermarkets.

AirEngine 6761S-21T Access Point Features

1. Smart Antenna

The built-in dual-band common-port smart antenna automatically suppresses interference, increases the coverage radius by 20%, and increases the signal strength at the same location by 100%, providing users with stable coverage without dead ends.

2. Three radios

Adopt three-radio design, including one 2.4G radio and two 5G radios, increasing concurrent users by 50%

3. Cloud Management

AP devices and services can be managed and operated through the HuaWei cloud management platform, saving network operation and maintenance costs

AirEngine 6761S-21T Access Point Specifications

Parameter	AirEngine 6761S-21T
Dimensions (diameter× height)	Φ220 x 50mm
Power input	DC: 12V± 10% PoE power supply: Meets the 802.3at Power over Ethernet standard
Maximum power consumption	21.2W (excluding USB) Note: The actual maximum power consumption varies according to the regulations of different countries and regions
Maximum number of users	≤1536 Description: the actual number of users varies depending on the environment in which it is used
Operating temperature	-10℃ ~+50℃
Antenna type	Built-in smart antenna
MIMO: SPATIAL STREAM	2.4GHz: 2×2:2,5GHz: 2×2:2,5GHz:4×4:4
Wireless protocol	802.11a/b/g/n/ac/ac wave2/ax
Maximum rate	6.575Gbps
