Product Details:
|
| Model Number: | LSS7C06HX6E0 | Dimensions (H X W X D): | 35.1 Mm X 397.2 Mm X 430.4 Mm (1.38 In. X 15.64 In. X 16.95 In.) |
|---|---|---|---|
| Weight: | 3.55 Kg (7.83 Lb) | Maximum Power Consumption: | 189W |
| Connector Type: | QSFP28 | Hot Swapping: | Supported |
| Basic Function: | Provides Six 100GE Optical Ports For Data Transmission And Switching | Warranty: | 1 Year |
| High Light: | 189W Ethernet Optical Board,100GE Ethernet Optical Board,Hot Swapping Gpon Olt Device |
||

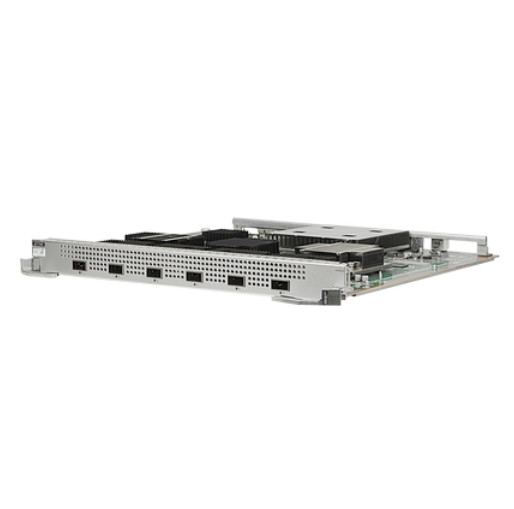

LSS7C06HX6E0 HuaWei S7700 series 6-port 100GE Ethernet optical interface board X6E QSFP28
|
Card Name |
S7700 Chassis |
|---|---|
| LSS7C06HX6E0 |
S7703 chassis: supported in V200R013C02 and later versions S7703 PoE, S7706, S7706 PoE, and S7712 chassis: supported in V200R019C00 and later versions NOTE:
As for cards manufactured since June 2021:
|
The LSS7C06HX6E0 can be installed in:
|
Function |
Description |
|---|---|
| Basic function | Provides six 100GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | Supported |
100GE optical port
Attributes of a 100GE optical port
|
Attribute |
Description |
|---|---|
| Connector type | QSFP28 |
| Optical port attributes | Depend on the QSFP28 - QSFP28 high-speed cable (1 m, 3 m), 40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used. |
| Applicable cable |
QSFP+ optical module and LC optical fiber QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber) QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP28 optical module and LC optical fiber QSFP28 optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber) QSFP28 high-speed copper cable (1 m or 3 m, can only be used as a CSS cable) QSFP28 AOC cable |
|
Item |
Description |
|---|---|
| Physical specifications |
|
