Product Details:
|
| Model Number: | ES0D0X12SA01 | Dimensions (H X W X D): | 397.2mm×430.4mm×35.1mm |
|---|---|---|---|
| Weight: | 2.30kg | Maximum Power Consumption: | 85W |
| Connector Type: | SFP+ | Basic Functionality: | PROVIDES DATA ACCESS AND EXCHANGE OF 12 10GE OPTICAL PORTS |
| Hot-swappable: | Backing | Warranty: | 1 Year |
| High Light: | 85W Ethernet Optical Board,10GE DWDM Ethernet Optical Board,DWDM SFP OLT Transmission Board |
||

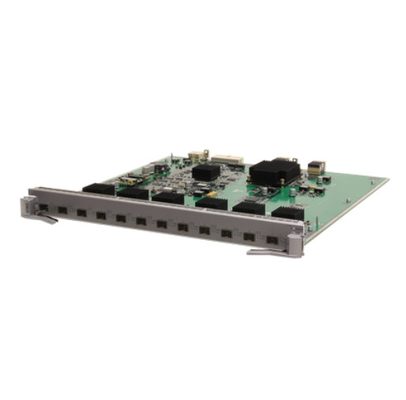

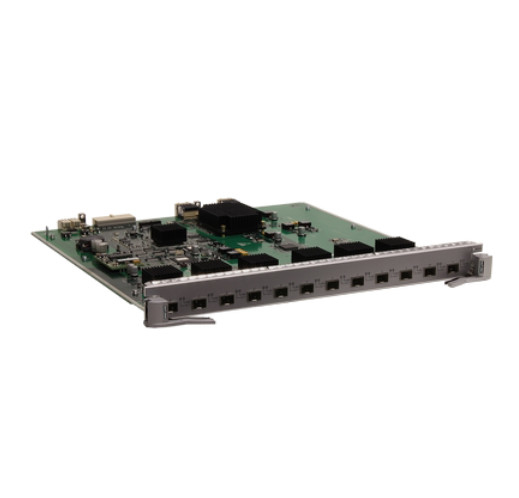

ES0D0X12SA01 HuaWei S77 series 12-port 10 Gigabit Ethernet optical interface board (SA SFP+)
|
Veneer name |
S7700 FRAME |
|---|---|
| ES0D0X12SA01 |
S7703 Frame, S7703 PoE Frame, S7706 Frame, S7706 PoE Frame, S7712 Frame: V200R019C00SPC500 and later versions are supported S7710 FRAME: NOT SUPPORTED |
The ES0D0X12SA01 can be installed in:
|
Function |
Description |
|---|---|
| Basic functionality | PROVIDES DATA ACCESS AND EXCHANGE OF 12 10GE OPTICAL PORTS |
| Distributed forwarding | Data is forwarded in parallel through a distributed data plane |
| Hot-swappable | Backing |
10GBASE SFP+ OPTICAL INTERFACE
|
Attribute |
Description |
|---|---|
| Connector type | SFP+ |
| Optical interface properties |
Determined by the selected SFP+-SFP+high-speed cable (1m, 10m) or SFP+ optical module or SFP+ optical cable. For more information about the optical modules supported by ES0D0X12SA01 and their properties, see 10GE SFP+ package optical modules (OSXD22N00 is not supported), 10GE-CWDM SFP+ package color optical modules, and 10GE-DWDM SFP+ package color optical modules. |
| Complies with standards | IEEE 802.3ae |
| Support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| Supports network protocols | IP |
|
Parameter items |
Description |
|---|---|
| Physical parameters |
|
