Product Details:
|
| Model Name: | RB912R-2nD-LTm&R11e4G | Operating System: | RouterOS |
|---|---|---|---|
| Storage Size: | 16MB | Max Power Consumption: | 9W |
| Architecture: | MIPSBE | CPU Nominal Frequency: | 650MHz |
| Tested Ambient Temperature: | -40°C To 70°C | Warranty: | 1 Year |
| High Light: | 650MHz Optical Fiber Wifi Router,OS Control Optical Fiber Wifi Router,9W Car Wireless Mini Router |
||
MikroTik LtAP mini 4G kit/RB912R-2nD-LTm&R11e4G car wireless mini router serial control GPS
Descriptions
The LtAP mini 4G kit is a small weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity on LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

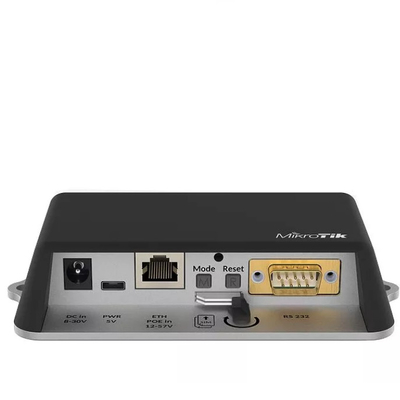

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini 4G kit also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

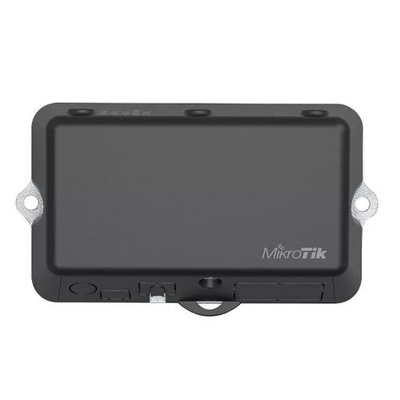

LtAP mini 4G kit has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. To use GPS an external GPS antenna is required, order separately (product code GPSANT).
The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.
| Details | |
|---|---|
| Product code | RB912R-2nD-LTm&R11e-4G |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 139 x 77 x 28,5 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 3 (DC jack, MicroUSB, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 9 W |
| FAN count | Passive |
| Details | |
|---|---|
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
| LTE TDD bands | 41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| Details | |
|---|---|
| Number of SIM slots | 2 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| Mode button | Yes |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| RB912R-2nD-LTm&R11e-4G | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
