Product Details:
|
| Model Number: | LE0MG48TC | Card Description: | 48-port 10/100/1000BASE-T Interface Card (EC, RJ45) |
|---|---|---|---|
| Dimensions (H X W X D): | 35.1 Mm X 397.2 Mm X 430.4 Mm (1.38 In. X 15.64 In. X 16.95 In.) | Weight: | 2.66 Kg (5.86 Lb) |
| Maximum Power Consumption: | 68W | Operating Temperature: | 0°C To 45°C (32°F To 113°F) |
| Relative Humidity: | 5% RH To 95% RH (noncondensing) | Warranty: | 1 Year |
| High Light: | CCC Gigabit Ethernet Board,68W Gigabit Ethernet Board,48 Port GPON OLT Board |
||

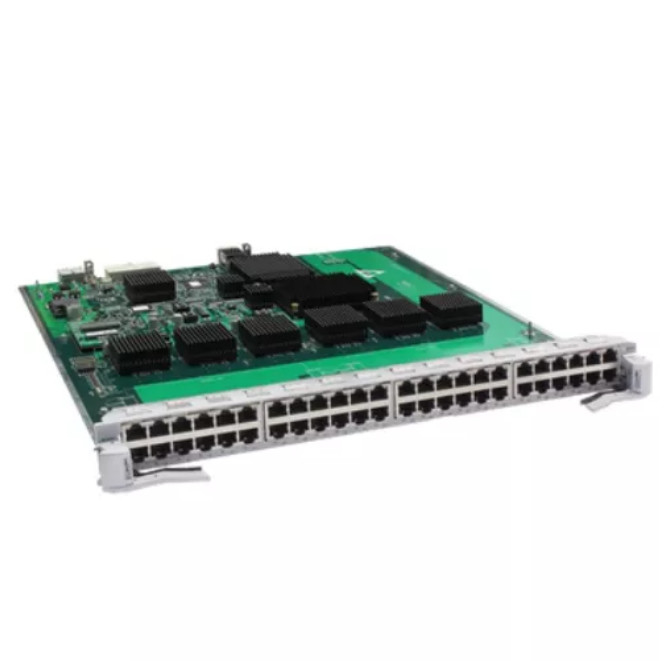

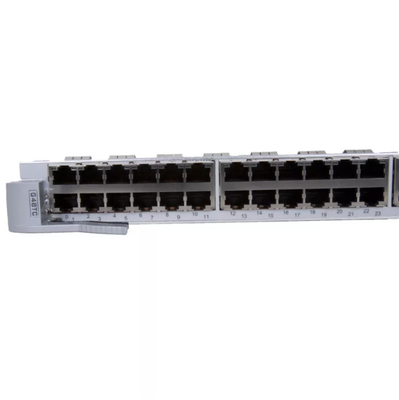

LE0MG48TC HuaWei S9300 series 48-port Gigabit Ethernet electrical interface board EC RJ45
|
Card Name |
S9300 Chassis |
S9300E Chassis |
|---|---|---|
| LE0MG48TC |
S9303, S9306 and S9312 chassis: supported in V100R001C02 and later versions S9310 chassis: supported in V200R010C00 and later versions |
Supported in V200R001C00 to V200R013C00 |
The LE0MG48TC can be installed in:
|
Function |
Description |
|---|---|
| Basic function | Provides forty-eight GE electrical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The LE0MG48TC is hot swappable. |
|
Item |
Description |
|---|---|
| Physical specifications |
|
| Environment specifications |
|
|
Part Number |
Card Description |
Card Model |
|---|---|---|
| 03020NER | 48-port 10/100/1000BASE-T interface card (EC, RJ45) | LE0MG48TC |
