Product Details:
|
Model Number: | GFBN | Subscriber Card: | 16-port GFGH |
---|---|---|---|
XPON: | GPON | Optical Modules: | Class B+ / C+ / C++ |
Used For OLT: | C600,C650,C680 | High Density: | 16 GPON Ports Per Card, Up To 1:128 Split Ratio |
Relative Humidity: | 5% RH To 95% RH (noncondensing) | Warranty: | 1 Year |
High Light: | Combo Central Office Line Board,PON GPON Office Line Board,20.0km Optical Line Board |

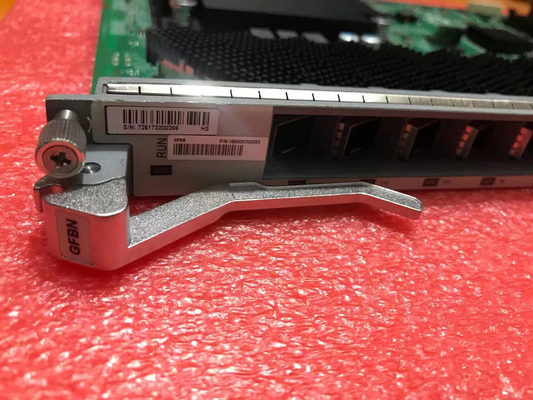

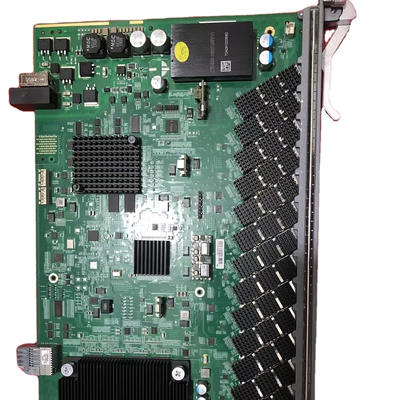

ZTE C600 board card GFBN 16-way R-type XC-PON&GPON Combo central office line board is fully equipped
Configuration:
Subscriber Card | XPON | Optical Modules | Used for OLT |
16-port GFGH | GPON | Class B+ / C+ / C++ | C600,C650,C680 |
Features:
High Density | 16 GPON ports per card, up to 1:128 split ratio |
GPON function | support ONU power saving management defined in G.987.3 |
1024 T-CONTs per PON port, 4096 GEM ports per PON port | |
High TM performance | support H-QOS |
1024 queues and 256 schedulers per PON port | |
support color-sensitive RED and WRED discard algorithm | |
Colck/time function | receive 1PPS+TOD signals and send them to the ONU through a PON channel |
Low power consumption | newly-developed lower power GPON MAC chip |
reduce 30% power consumption on industry average |
Specification:
Item | Single Fiber Bidirectional Optical Module, Class B+ | Single Fiber Bidirectional Optical Module, C+ | Single Fiber Bidirectional Optical Module, Class C++ |
SN | 1 | 2 | 3 |
Operating wavelength | Tx: 1490 nm | Tx: 1490 nm | Tx: 1490 nm |
Rx: 1310 nm | Rx: 1310 nm | Rx: 1310 nm | |
Bandwidth | Tx: 2.488 Gbit/s | Tx: 2.488 Gbit/s | Tx: 2.488 Gbit/s |
Rx: 1.244 Gbit/s | Rx: 1.244 Gbit/s | Rx: 1.244 Gbit/s | |
Minimum output optical power | 1.5 dBm | 3.0 dBm | 4.5 dBm |
Maximum output optical power | 5.0 dBm | 7.0 dBm | 8.0 dBm |
Maximum receiver sensitivity | -28.0 dBm | -32.0 dBm | –30 dBm @10E–10 –32 dBm @10E–10 |
Optical fiber type | Single mode | Single mode | Single mode |
Transmission distance | 20.0km | 20.0km | 20.0km |
Saturation optical power | – 8.0dB | –12.0 dBm | -12.0 dBm |
Extinction ratio | 10.0dB | 8.2 dB | 8.2dB |
