Product Details:
|
| Model Number: | ES5D00X2SA00 | Dimensions (H X W X D): | 23 Mm X 77 Mm X 207 Mm (0.9 In. X 3.0 In. X 8.1 In.) |
|---|---|---|---|
| Weight: | 0.5 Kg (1.10 Lb) | Maximum Power Consumption: | 7W |
| Connector Type: | LC/PC | Standards Compliance: | IEEE 802.3ae |
| Basic Function: | Provides Two 10GE SFP+ Optical Ports Respectively For Data Access And Line-rate Switching | Warranty: | 1 Year |
| High Light: | SFP+ Dedicated Gigabit Optical Board,7W Gigabit Optical Board,LC PC GPON Optical Board |
||

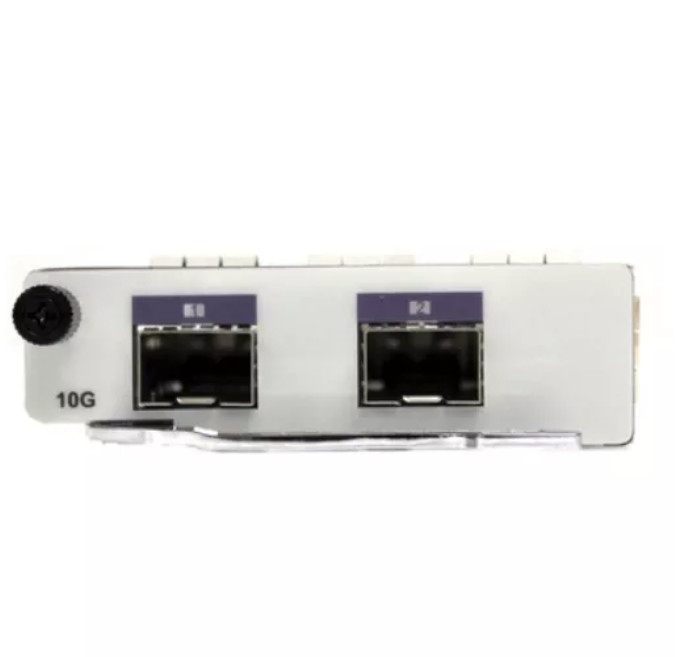

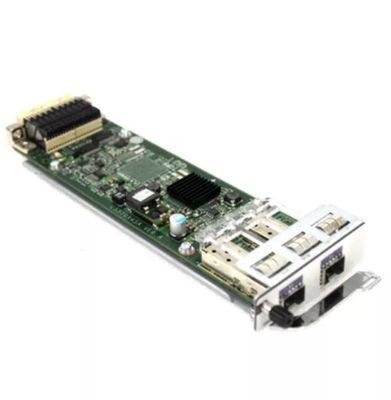

HuaWei S700HI series dedicated interface board ES5D00X2SA00 2-port 10 Gigabit optical SFP+ interface front card
Version Mapping
The mapping between the ES5D00X2SA00 card and software versions.
|
Card Model |
Software Version |
|---|---|
|
ES5D00X2SA00 NOTE: After the display device command is executed, the PCB model of the card is displayed as ES510X2SA. |
V100R006C01 to V200R005C02 NOTE: This module is not supported in V200R003C02 or V200R003C10. |
Card Overview
The ES5D00X2SA00 provides two 10GE SFP+ optical ports for data access and line-rate switching.
Applicable switch models
|
Card |
Switch Model |
|---|---|
|
ES5D00X2SA00 |
|
Functions of the ES5D00X2SA00
|
Function |
Description |
|---|---|
|
Basic function |
Provides two 10GE SFP+ optical ports respectively for data access and line-rate switching. |
|
Enhanced service |
The S5700-HI powers on or off the ES5D00X2SA00, detects whether the ES5D00X2SA00 is installed or not, and manages PHY chips and optical ports on the ES5D00X2SA00. They provide hardware-based OAM and BFD for the switch. |
|
Hot swapping |
Supported |
|
Service ports for stacking |
The service ports on the ES5D00X2SA00 can be used as stack ports on an S5700-HI switch. NOTE: The S5700-HI has supported service port-based stacking since V200R003C00. |
Indicator description
|
Number |
Indicator |
Color |
Description |
|---|---|---|---|
|
1 |
ACT/LINK |
Green |
|
|
Off |
No link is established on the port. |
|
2. Two/Four 10GE SFP+ optical ports |
10GE SFP+ optical port
The ES5D00X2SA00 provides two 10GE optical ports (GE/10GE auto-sensing) respectively to transmit and receive Ethernet service data at 1 Gbit/s or 10 Gbit/s. Table 9-34 describes attributes of an SFP+ optical port.
The 10GE SFP+ optical ports support 10GE SFP+ optical modules, GE optical modules, GE copper modules (in V200R002C00 and later versions, used with shielded twisted pair cables), SFP+ cables (in V200R002C00 and later versions), and AOC cables (in V200R003C00 and later versions).
Attributes of a 10GE SFP+ optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the optical module used (see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, GE-DWDM eSFP Optical Modules, GE SFP Copper Modules, 10GE SFP+ Optical Modules, and 10GE-CWDM SFP+ Optical Modules) |
|
Standards compliance |
IEEE 802.3ae |
Specifications of the ES5D00X2SA00
|
Item |
Description |
|---|---|
|
Physical specifications |
|
Ordering Information
Ordering information is subject to updates with product version upgrades. The ordering information provided in this manual is for reference only. To obtain the latest ordering information, contact HW switch distributors or HW local office.
|
Card Description |
Card Name |
Part Number |
|---|---|---|
|
2-port GE SFP or 10GE SFP+ optical interface card (front card) |
ES5D00X2SA00 |
03021JYN |
.
