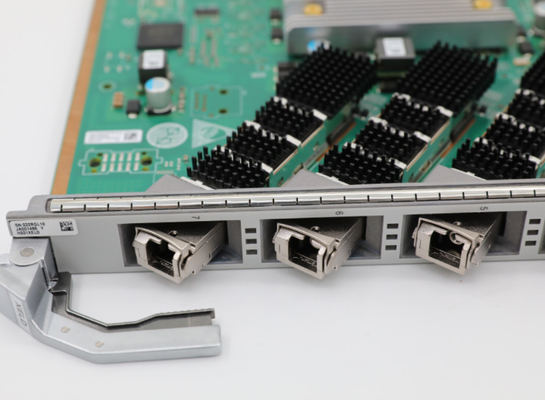

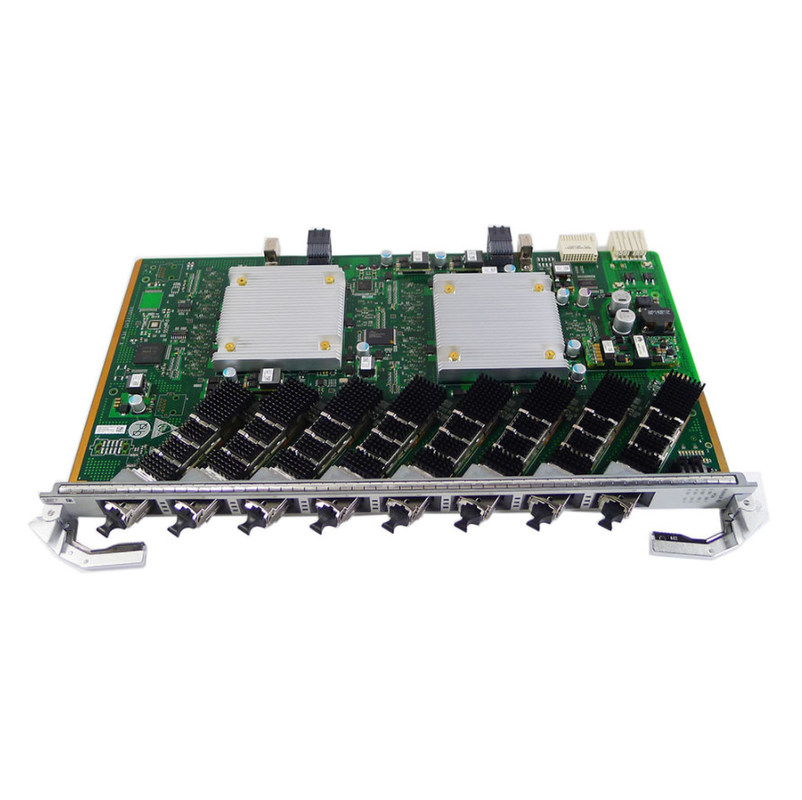

FTTH GPON Optical Board 65W 10G EPON OLT Board XELD HuaWei H901XELD

HuaWei H901XELD board 8-port Gigabit pon board 10G EPON OLT interface board XELD

The basic principles of HuaWei XELD are as follows:

* Control module to complete the software board loading, operation control, management and other functions.

* The switching module implements aggregation and forwarding of eight 10G EPON port signals.

* The interface module implements the conversion of 10G EPON optical signals and Ethernet packets.

* The power supply module provides working power for each function module in the board.

* The clock module provides the working clock for each function module in the board.

* Applicable to Huawei MA5800 series OLT

HW XELD features and specifications:

1. Supports 8 10G EPON SFP interfaces

2. Support single fiber bi-directional 10G EPON OLT optical module

3. Supports up to 1: 128 splitting ratio. (Note: The actual splitting ratio depends on the optical module type and fiber distance.)

4. Support query optical module parameters: temperature, bias current, voltage, receive optical power, send optical power.

5. Supports RSSI detection

6. Supports optical module lighting control

7. Support temperature query and high temperature alarm

8. Support high temperature automatic shutdown

9. Supports up and down rate symmetry mode and asymmetric rate mode

10. Supports Type B single home protection

11. HW XELD power: Static power: 40W

Maximum power: 65W
