Product Details:
|
Type: | GPON ONT | Product Name: | ZXA10 F400 |
---|---|---|---|
Optical Port: | 1 X EPON Interface (SC/PC20,PX20+) | Power Consumption: | <6W |
Dimensions: | 200mm(W) X 40mm(H) X140mm(D) | Weight: | About 0.4Kg |
Power Supply: | 12V DC | Warranty: | 1 Year |
High Light: | 6W Gigabit ONU Optical Modem,1GE 3FE ONU Optical Modem,EPON Ethernet Onu Fiber Device |

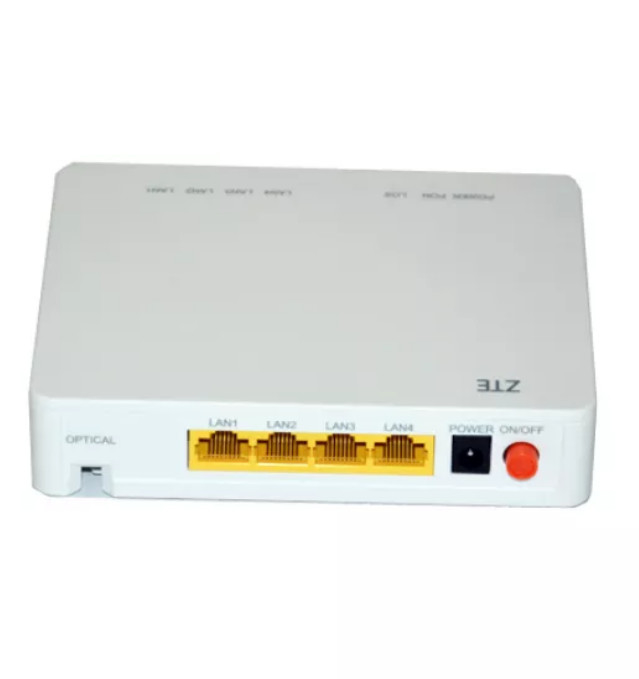

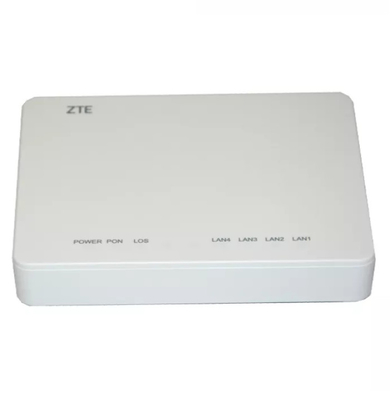

ZTE Gigabit ONU optical modem F400 EPON Ethernet passive access 1GE+3FE
Product Description
ZXA10 F400 is an EPON Optical Network Terminal designed for SFU (Single Family Unit) used in FTTH scenario. It provides subscriber with rich, colorful, individualized, convenient and comfortable triple-play services including video (IPTV), voice, wireless access, convenient network storage services and high speed internet access. It has a small, smart appearance and green, Energy-saving advantage. Using TR069 and OAM protocol,cost can be reduced effectively by supporting remote service provisioning, intelligent fault diagnosis and performance statistic functions.
EPON Interface |
Optical port: 1 x EPON interface (SC/PC20,PX20+) Transmission Distance: 0~ 20km Transmit rate: 1.25Gbps downstream; 1.25Gbps upstream |
User Network Interface |
1 x10/100 /1000 Base-T Half/full duplex; Auto MDI/MDIX; Auto negotiation |
Optical Module |
Receiving: 1480~1500 nm Transmitting: 1280~1350 nm Receiving Sensitivity: -27dBm Transmitting Optical Power: 0~4dBm |
Main Function |
Supported service: Internet, IPTV Support standard OAM and extended OAM Support authentication Mac/Loid/Mac+Loid VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 256 Multicast: IGMP v1/v2 Snooping Multicast group: 256 QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;egress shaping Management: local web management, OAM |
Physical Performance |
Power consumption: <6W Dimensions: 200mm(W) x 40mm(H) x140mm(D) Working temperature: 0℃ ~ 40℃ Working humidity: 5% ~ 95% Weight: about 0.4Kg Power supply: 12V DC Mounting mode: Desktop/Wall mounting |
Functions
* Full speed non-blocking switching.
* 2K MAC address table.
* Integrated 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
* Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
* Support auto polarity detection of Ethernet ports (AUTO MDIX).
* Support IEEE802.1p QoS with four level priority queues.
* Support IPv4 IGMP snooping and IPv6 MLD snooping.
